USG6305E Next-Generation Firewall (NGFW) | 1U Desktop | VPN & AI Security

No.USG6305E

Key Features & Highlights

AI-Powered Security: Leverages artificial intelligence for intelligent advanced threat detection, linked to the cloud, with an accuracy rate of over 99%.
Integrated Protection: Consolidates multiple security functions including Firewall, IPSec VPN, Intrusion Prevention System (IPS), and Anti-Virus into a single platform.
High Performance: Features pattern matching and processing acceleration for encryption/decryption, delivering high throughput for content security and VPN services without performance degradation.
Cloud Management: Supports cloud-based management for simplified setup, centralized control, and real-time threat updates.
Reliable Design: Includes 1+1 power backup for redundancy and a compact 1U desktop form factor.

Get The Latest Quote

Add to Quote List Browse the list

Description
Additional Information
Ordering & Payment Terms

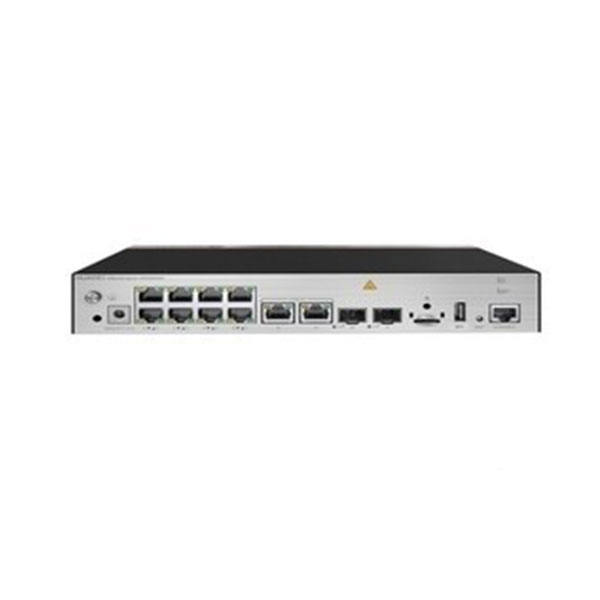

USG6305E-AC AI Network Security Firewall

The HiSecEngine USG6300E series USG6305E-AC is a next-generation, AI-powered desktop firewall and VPN security appliance. Designed for Small and Medium Enterprises (SMEs) and chain organizations, it delivers integrated, high-performance protection against advanced cyber threats. With intelligent threat detection accuracy greater than 99% and cloud management support, it ensures robust, real-time enterprise security with simplified deployment.

Performance Specifications:

The firewall has a throughput of 2 Gbit/s.
Its VPN throughput for IPsec is 2 Gbit/s.
The firewall latency for 64-byte packets is 18 microseconds (μs).
The number of simultaneous sessions is not specified.

Interface Details:

It includes 2 fixed 10 Gigabit Ethernet (SFP+) ports.
It has 8 Gigabit Ethernet Combo ports.
There are 2 dedicated Gigabit Ethernet WAN ports.
For connectivity, it is equipped with one USB 2.0 port and one USB 3.0 port.

Physical Dimensions:

The unit measures 43.6 mm in height, 442 mm in width, and 420 mm in depth.

Product Overview

The HiSecEngine USG6300E series is an enterprise-grade AI firewall that provides active defense against evolving network threats. By integrating NGFW capabilities with other security functions, it significantly enhances border detection capabilities. It is engineered to effectively defend against advanced threats while solving common performance degradation problems, ensuring reliable and secure network operations for modern businesses.

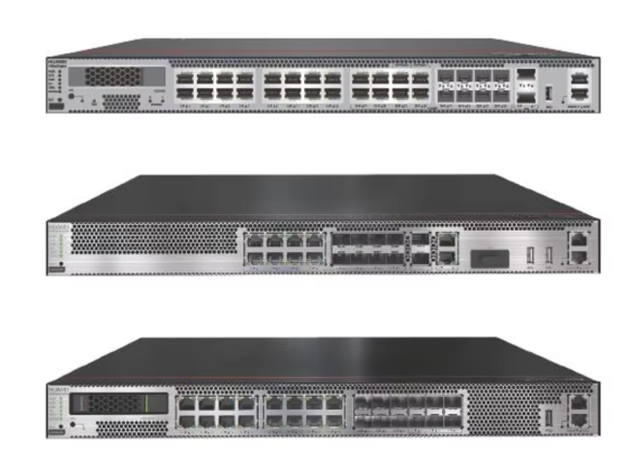

HiSecEngine USG6300E
Modle	USG6305E-AC / USG6309E-AC	USG6315E-AC / USG6325E-AC	USG6335E-AC / USG6355E-AC	USG6365E-AC / USG6385E-AC	USG6391E-AC	USG6395E-AC
Fixed Interfaces	210GE(SFP+)+8GE Combo+2*GE WAN				12×GE (RJ45) +8GE (SFP) + 4×10GE (SFP+)	610GE(SFP+)+ 6GE(SFP)+ 16*GE
Product Model	1U
Local Storage	Optional, support M.2 card, 64g/240g				Optional 2.5-inch hard disk, supporting 240GB/960GB SSD and 1TB HDD
Integrated Protection	Provides firewall, VPN, intrusion prevention, antivirus, data leak prevention, bandwidth management, anti-DDoS, URL filtering, and anti-spam functions
Application identification and control	Identifies more than 6,000 applications with the access control granularity to application functions, for example, distinguishing between WeChat text and voice. Combines application identification with intrusion detection, antivirus, and data filtering,improving detection performance and accuracy.
Bandwidth Management	Manages per-user and per-IP bandwidth in addition to identifying service applications to ensure the network access experience of key services and users. Control methods include limiting the maximum bandwidth, ensuring the minimum bandwidth, applying PBR, and changing application forwarding priorities.
Intrusion prevention and Web protection	Obtains the latest threat information in a timely manner for accurate detection and defense against vulnerability-based attacks. The device can defend against web-specific attacks, including SQL injection and XSS attacks.
AAPT	Interact with local and cloud sandboxes to detect and block malicious files Encrypted traffic does not need to be decrypted, and is linked to the big data analysis platform HiSec Insight to detect encrypted traffic threats. Actively respond to malicious scanning behaviors, and conduct behavior analysis by linking the big data analysis platform HiSec Insight to quickly discover and record malicious behaviors, thus realizing real-time protection against enterprise threats.
Cloud management mode	Initiates authentication and registration to the cloud management platform to implement plug-and-play and simplify network creation and deployment. Remote service configuration management, device monitoring, and fault management are used to implement cloud-based management of mass devices.

Ordering & Payment Terms:

Minimum Order Quantity (MOQ): Flexible for small orders
Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
Payment Method: T/T (Bank Transfer)
Payment Terms:
30% advance payment, with 70% balance due prior to shipment for bulk orders

BANK INFORMATION

Bank Name: DBS BANK (HONG KONG) LIMITED
Account Name: Shenzhen VAN Electronics Co., Ltd.
Account No.: 798 291 1671
Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong
Swift Code: DHBKHKHH

Contact for Quotation:
Kindly email your requirements to sales@szvan.com for a customized quotation and optimal solution.
Attn: Jessica Lee
