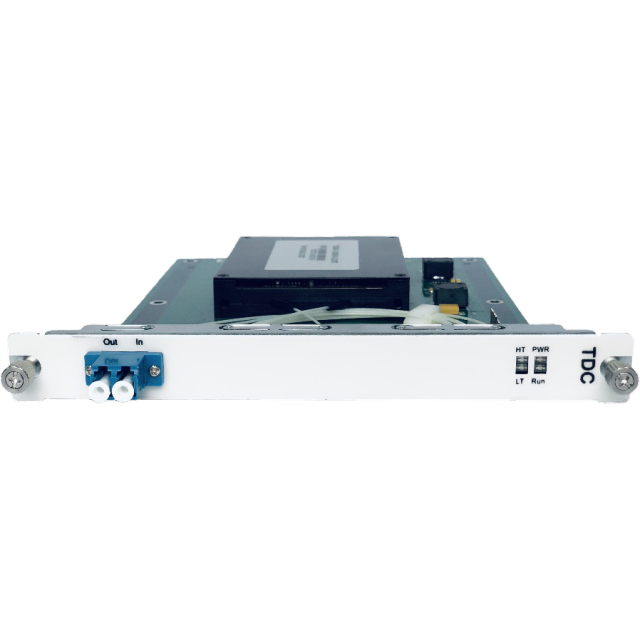

Product Overview The TDCM (Tunable Dispersion Compensation Module) is a dispersion compensation module developed by GIGALIGHT for high-speed optical transmission systems. It operates on the principle of temperature-adjusted dispersion compensation fiber to deliver precise dispersion compensation.
Product Specifications
Category
Parameter
Specification
Optical Performance
Wavelength Range
1528.97 nm to 1567.13 nm
Channel Spacing
50 GHz or 100 GHz
Insertion Loss
< 5.5 dB
Return Loss
> 50 dB
Polarization-Dependent Loss (PDL)
< 0.1 dB
Absolute Dispersion Accuracy
±25 ps/nm or ±60 ps/nm
Maximum Input Power
27 dBm
General Parameters
Power Consumption
< 4.5 W
Environmental Conditions
Operating Temperature
-10°C to +70°C
Storage Temperature
-40°C to +80°C
Relative Humidity
5% to 95% (non-condensing)
Compliance
Safety & EMC
Complies with FCC, UL, CE, TUV, CSA standards
Application
Coherent Optical Communication
Metropolitan Area Network (MAN)
Telecommunications (Telecom)
Product Type
Subsystems
Media Type
Single-Mode Fiber (SMF)
Key Features
Long-distance compensation capability
High output accuracy
Low insertion loss
Low phase jitter
Low group delay variation
Low polarization-dependent loss (PDL)
Low polarization mode dispersion (PMD)
Ordering & Payment Terms:
Minimum Order Quantity (MOQ): Flexible for small orders
Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
Payment Method: T/T (Bank Transfer)
Payment Terms: 30% advance payment, with 70% balance due prior to shipment for bulk orders
BANK INFORMATION
Bank Name: DBS BANK (HONG KONG) LIMITED Account Name: Shenzhen VAN Electronics Co., Ltd. Account No.: 798 291 1671 Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong Swift Code: DHBKHKHH
Contact for Quotation: Kindly email your requirements tosales@szvan.comfor a customized quotation and optimal solution. Attn:Jessica Lee
