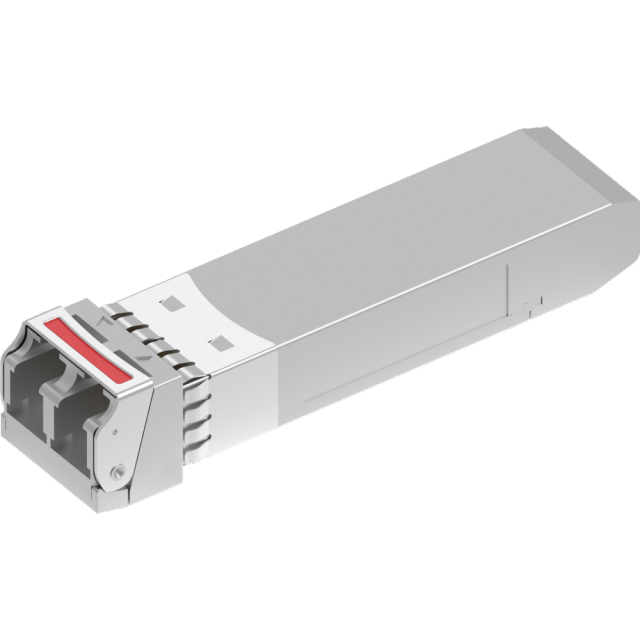

SFP28 25G ER 1310nm 30/40km Optical Transceiver

The 25G SFP28 ER optical transceiver module is designed for 5G fronthaul applications. It complies with the IEEE 802.3cc 25GBASE-ER Ethernet standard and is also compatible with both CPRI Option 10 and 25G eCPRI transmission protocols.

This series of modules utilizes a pair of single-mode fibers for transmission, operating at a center wavelength of 1310 nm. It supports link distances of up to 30 km without Forward Error Correction (FEC), and up to 40 km when FEC is enabled. An industrial-grade operating temperature range is available as an optional feature.

Part Number: VSS-SPO250-ERC
Description: 25GbE / eCPRI SFP28 ER Optical Transceiver, EML 1310nm, up to 30km/40km reach

Part Number: VSS-SPO250-ERT
Description: Industrial Grade 25GbE / eCPRI SFP28 ER Optical Transceiver, EML 1310nm, up to 30km/40km reach

Product Specifications: SFP28 Optical Transceiver

• Product Type: Pluggable Optical Module

• Form Factor: SFP28

• Application: 5G Carrier Network

• Supported Protocols: CPRI / eCPRI, Ethernet

• Data Rate: 14 Gbps to 28 Gbps

• Wavelength: 1310nm

• Media Type: Single-Mode Fiber (SMF)

• Transmission Reach: 25 km to 50 km

• Interface: Dual LC
