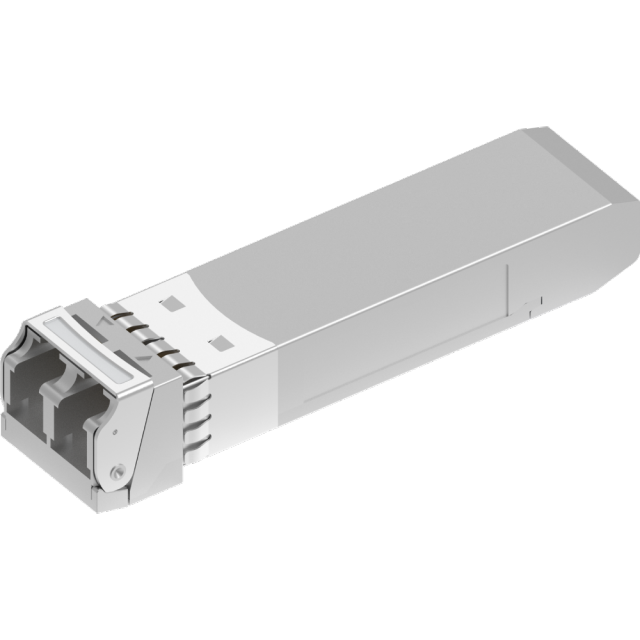

This series of 25G SFP28 DWDM optical transceiver modules is designed for 5G fronthaul applications. They are fully compliant with 25 Gigabit Ethernet transmission standards and compatible with the 25G eCPRI protocol.
Key features include:
Utilizing a single pair of single-mode fiber for bidirectional transmission.
Offering 44 selectable C-band wavelengths on the 100GHz grid (channels C18 to C61).
Supporting transmission distances of up to 2km or 10km.
Available with an industrial-grade operating temperature range to ensure reliability in harsh environments.
| Part Number | Description | Operating Temperature |
|---|---|---|
| VSS-Dxx250-02C | 25GE/eCPRI SFP28 DWDM EML 100GHz (C18-C61) 2km Optical Transceiver | Commercial Grade |
| VSS-Dxx250-02T | 25GE/eCPRI SFP28 DWDM EML 100GHz (C18-C61) 2km Optical Transceiver | Industrial Grade |
| VSS-Dxx250-LRC | 25GE/eCPRI SFP28 DWDM EML 100GHz (C18-C61) 10km Optical Transceiver | Commercial Grade |
| VSS-Dxx250-LRT | 25GE/eCPRI SFP28 DWDM EML 100GHz (C18-C61) 10km Optical Transceiver | Industrial Grade |
Product Type: Pluggable Optical Module
Form Factor: SFP28
Application: 5G Carrier Network
Protocols: CPRI / eCPRI, Ethernet
Data Rate: 14 Gbps to 28 Gbps
Wavelength: DWDM
Media Type: Single-Mode Fiber (SMF)
Reach: 2 km to 20 km
Interface: Dual LC
