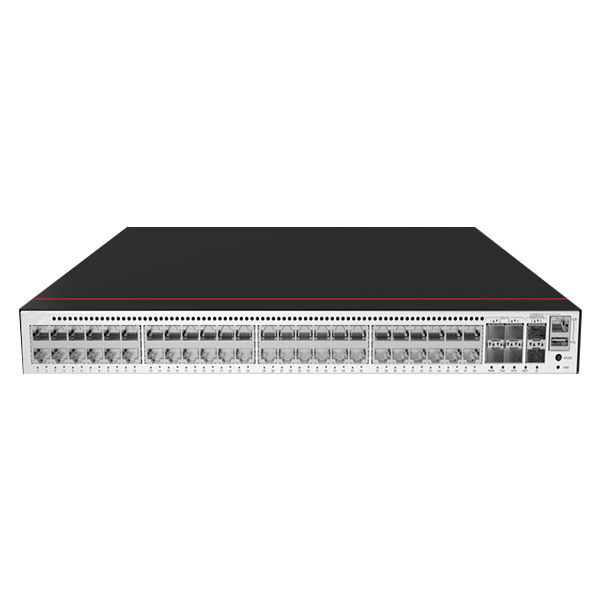

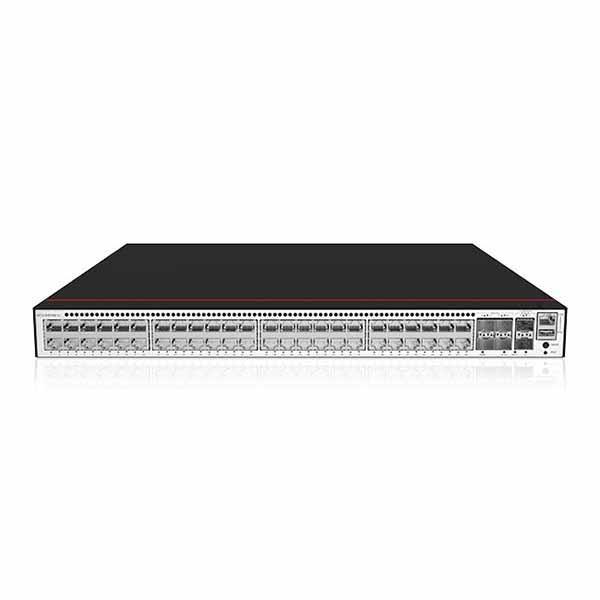

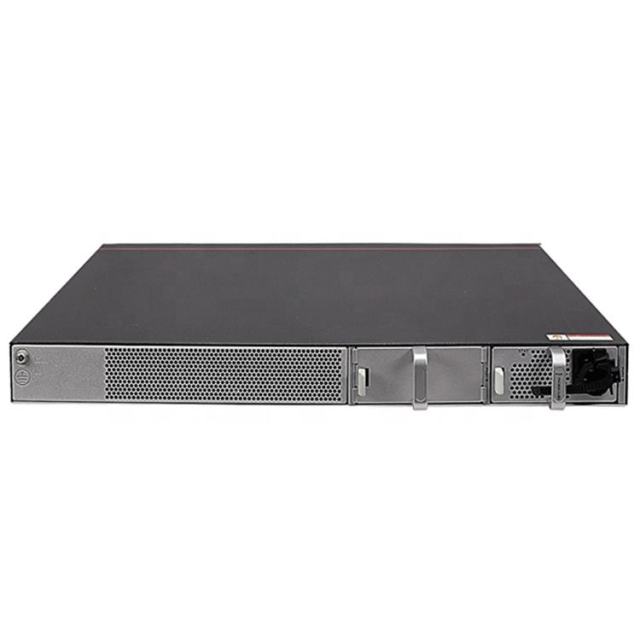

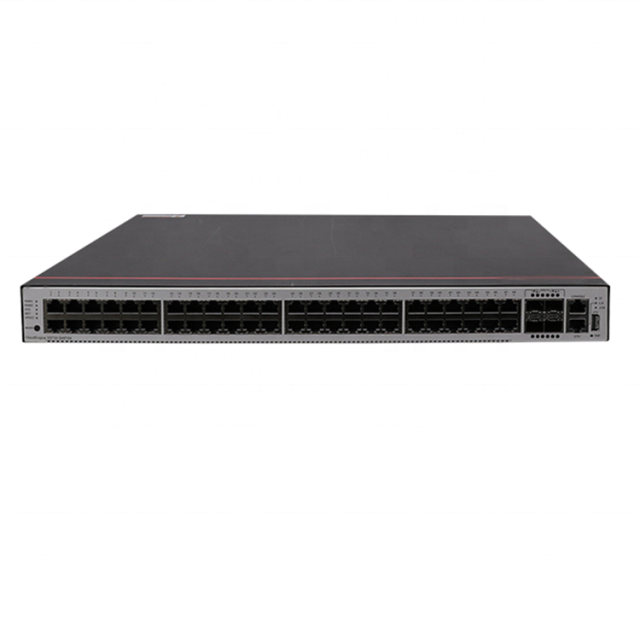

S5735-S48T4XE-V2 Advanced 48-Port Gigabit Stackable Switch

No.S5735-S48T4XE-V2

Key Features & Benefits:

  • High-Density Port Configuration: Provides 48 x 10/100/1000BASE-T copper ports and 4 x 10-Gigabit SFP+ fiber ports, offering flexibility for connecting end-users and high-speed uplinks.

  • Power over Ethernet Plus (PoE+): Supports PoE+ on its copper ports, simplifying the deployment and powering of devices like wireless access points, IP phones, and surveillance cameras.

  • High Performance: With a switching capacity of 224 Gbps/520 Gbps and a forwarding performance of 168 Mpps, it ensures wire-speed processing for demanding network traffic.

  • Enhanced Reliability: Features a redundant N+1 power supply design with three built-in power modules for maximum uptime and operational continuity.

  • Stackable & Scalable: Includes dedicated stack ports, allowing multiple switches to be managed as a single logical unit for simplified network expansion and management.

  • Advanced Software Features: Supports comprehensive functionalities including VLAN, LACP (Link Aggregation Control Protocol), SNMP management, and mature IPv6.

  • S5735-S48T4XE-V2 Усовершенствованный 48-портовый гигабитный стекируемый коммутатор
  • S5735-S48T4XE-V2 Advanced 48-Port Gigabit Stackable Switch
  • S5735-S48T4XE-V2 Advanced 48-Port Gigabit Stackable Switch
  • S5735-S48T4XE-V2 Advanced 48-Port Gigabit Stackable Switch
  • S5735-S48T4XE-V2 Advanced 48-Port Gigabit Stackable Switch
  • Description
  • Additional Information
  • Ordering & Payment Terms

Product Overview: CloudEngine S5735-S48P4XE-V2 Switch

The CloudEngine S5735-S48P4XE-V2 is a high-performance, stackable gigabit Ethernet switch designed for the access and aggregation layers of enterprise campuses and data centers. Part of the CloudEngine S5735-S-V2 series, it is built on a next-generation hardware and unified software platform, offering advanced Layer 3 features, flexible networking, and robust reliability.

Detailed Specifications

Category Specification
Product Name CloudEngine S5735-S48P4XE-V2 Switch
Brand & Model OEM / S5735-S48P4XE-V2
Fixed Ports • 48 x 10/100/1000BASE-T Ethernet ports
• 4 x 10 Gigabit SFP+ ports
• 2 dedicated stack ports
Forwarding Performance 168 Mpps (Million Packets Per Second)
Switching Capacity 224 Gbps / 520 Gbps
Power Supply 3 built-in power supplies, N+1 backup redundancy
PoE Support Yes, PoE+
Key Functions LACP, Stackable, VLAN Support, SNMP
Communication Mode Full-Duplex & Half-Duplex
Chassis Height 1U
Transmission Rate 10/100/1000Mbps
Condition & Status 100% Original Brand, In Stock

Series Description:
The CloudEngine S5735-S-V2 series switches are based on a next-generation high-performance hardware and unified software platform. They are engineered to support enhanced Layer 3 features, easy operation and maintenance (O&M), flexible Ethernet networking, and mature IPv6 capabilities, making them suitable for a wide range of enterprise and data center applications.
S5735-S48T4XE-V2 Advanced 48-Port Gigabit Stackable Switch
  • Model: S5735-S48T4XE-V2

  • 48-Port Gigabit Access: 48 x 10/100/1000BASE-T Copper Ports

  • High-Speed Connectivity: 4 x 10GbE SFP+ Uplinks

  • Stacking: 2 x Dedicated 12GbE Stack Ports

  • Power & Management: PoE+/SNMP

  • Included: Power Supply

    CloudEngine S5735-S Series

    Product Model
    CloudEngine S5735-S24T4XE-V2
    CloudEngine S5735-S24P4XE-V2
    CloudEngine S5735-S24U4XE-V2
    CloudEngine S5735-S48T4XE-V2
    CloudEngine S5735-S48P4XE-V2
    CloudEngine S5735-S48U4XE-V2
    Forwarding Performance
    132 Mpps
    132 Mpps
    132 Mpps
    168 Mpps
    168 Mpps
    168 Mpps
    Switching Capacity2
    176 Gbps/520 Gbps
    176 Gbps/520 Gbps
    176 Gbps/520 Gbps
    224 Gbps/520 Gbps
    224 Gbps/520 Gbps
    224 Gbps/520 Gbps
    Fixed Ports
    24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports, 2 stack ports
    48 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports, 2 stack ports
    PoE
    ­-
    Supported,PoE+
    Supported,90W PoE++
    ­-
    Supported,PoE+
    Supported,90W PoE++
    Power supply type
    1+1 power supply backup
    3 power supplies, N+1 power supply backup
    3 power supplies, N+1 power supply backup
    1+1 power supply backup
    3 power supplies, N+1 power supply backup
    3 power supplies, N+1 power supply backup
    MAC Features
    MAC address auto-learning and aging
    Static, dynamic, and blackhole MAC address entries
    Packet filtering based on source MAC addresses
    Interface-based MAC address learning limiting
    VLAN
    4094 VLANs
    Voice VLAN
    MUX VLAN
    VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
    IP Routing
    Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6
    Interoperability
    VBST (compatible with PVST/PVST+/RPVST)
    LNP (similar to DTP)
    For detailed interoperability certifications and test reports, click HERE.
