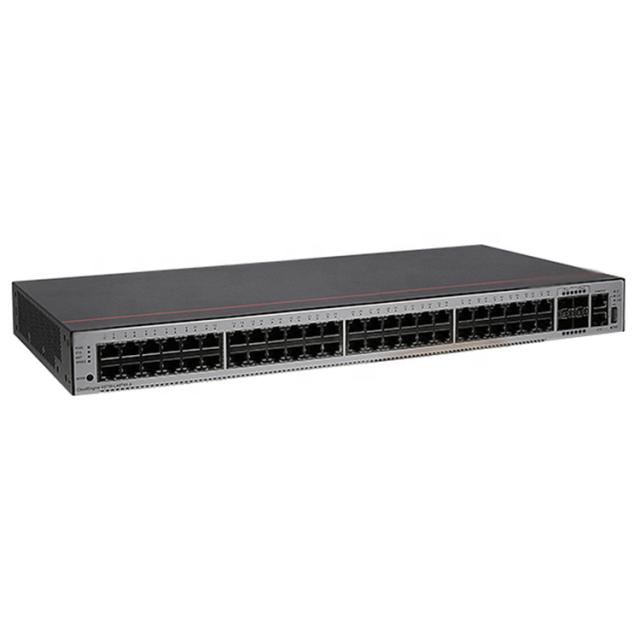

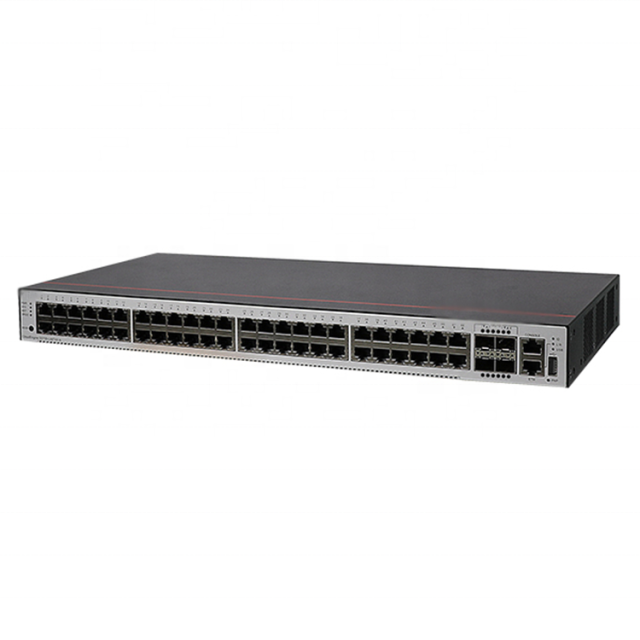

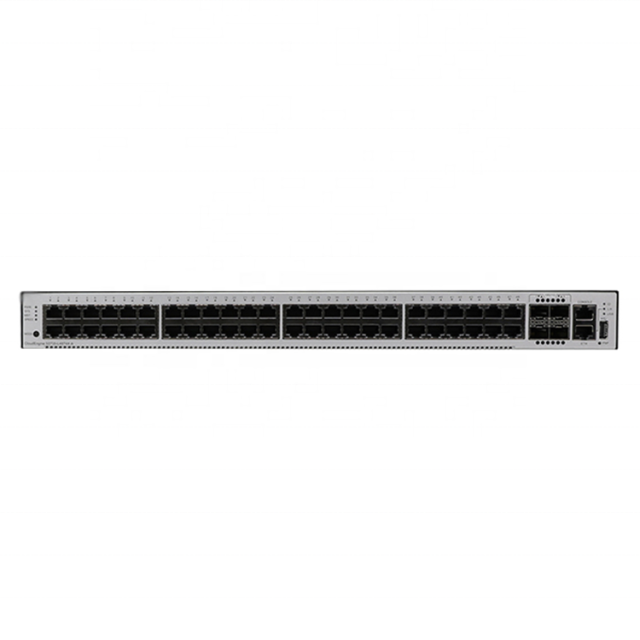

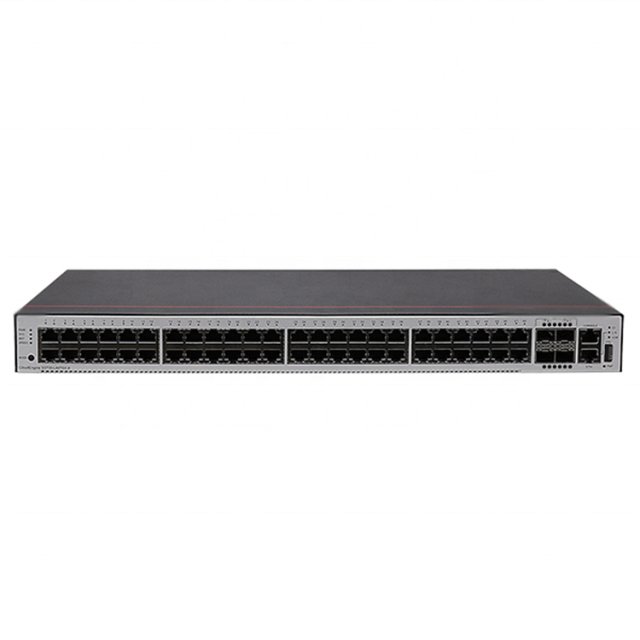

S5735-L48T4X-A: 48-Port Gigabit PoE+ Managed Industrial Switch with 4x 10G SFP+ Uplinks

Product Overview: CloudEngine S5735-L48T4X-A1 Switch

The CloudEngine S5735-L48T4X-A1 is a high-performance, stackable Layer 3 switch designed for enterprise networks. It delivers robust switching capacity, advanced routing features, and flexible connectivity in a compact 1U form factor.

Feature Highlights

Built on a next-generation, high-performance hardware platform and powered by the Versatile Routing Platform (VRP), the CloudEngine S5735-L series provides:

• High Performance: Offers superior switch capacity and forwarding performance for demanding business applications.

• Versatile Routing: Comprehensive support for multiple Layer 3 routing protocols for scalable network design.

• Flexible Networking: Stacking capability and a mix of Gigabit and 10G ports enable versatile and scalable Ethernet networking.

• Advanced Security: Delivers diversified security controls to protect the network infrastructure.

• Enterprise-Ready: An ideal solution for building reliable and high-performance enterprise access and aggregation networks.

  CloudEngine S5735-L48T4X-A1 Specification


  Product Name	CloudEngine S5735-L48T4X-A1
  Fixed port	• 48 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports
  Power supply type	• AC power supply
  Switch Capacity	176 Gbps/432 Gbps
  Dimensions (W x D x H)	442mm *220mm * 43.6mm
  Chassis height	1U
  Chassis weight	3.79KG
  Ports	48
  Storage temperat	-40°C to +70°C
  Relative humidity	5% to 95% (non- condensing)
