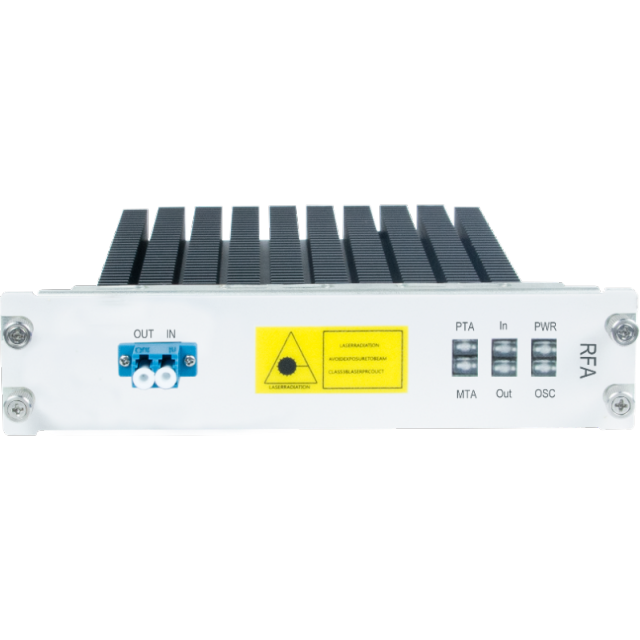

The RFA optical amplifier board is engineered for DWDM optical communication systems, complementing traditional EDFA amplification. Its operation, based on the Stimulated Raman Scattering (SRS) effect, delivers key system enhancements by mitigating nonlinear effects like four-wave mixing. The board significantly improves the Optical Signal-to-Noise Ratio (OSNR), thereby enabling a major increase in transmission reach.
Product Specifications
Parameter Category
Specification Details
Optical Performance
Wavelength Range
1528 nm to 1565 nm
Input Power Range
Minimum: -38 dBm
Output Power Range
-28 dBm to -5 dBm
Maximum Gain
10 dB
Noise Figure
3 dB
Gain Flatness
±3 dB
Output Isolation
40 dB
Input / Output Return Loss
55 dB
Output Pump Leakage
-30 dBm
Polarization Dependent Gain (PDG)
0.5 dB
Polarization Mode Dispersion (PMD)
0.5 ps
Physical & Environmental
Module Dimensions (W × H × D)
177 mm × 40 mm × 225 mm
Operating Temperature
-10 °C to +70 °C
Storage Temperature
-40 °C to +80 °C
Relative Humidity
5% to 95% (non-condensing)
General
Power Consumption
< 30 W
Safety & EMC Compliance
FCC, UL, CE, TUV, CSA
Application: Coherent Optical Communication, Metropolitan Area Network (MAN), Telecommunications
Product Type: Optical Subsystems
Media Type: Single-Mode Fiber (SMF)
Ordering & Payment Terms:
Minimum Order Quantity (MOQ): Flexible for small orders
Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
Payment Method: T/T (Bank Transfer)
Payment Terms: 30% advance payment, with 70% balance due prior to shipment for bulk orders
