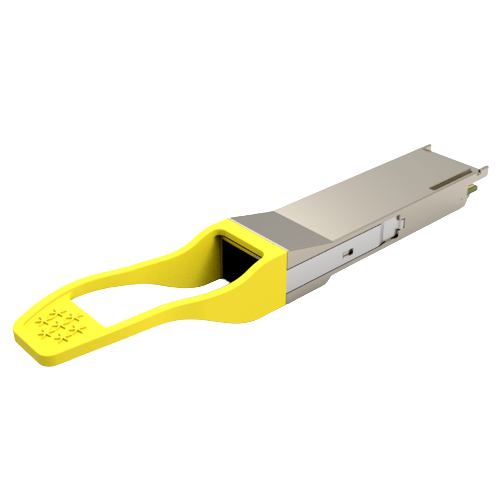

QSFP56-DR4 200G Optical Transceiver, 1310nm DML, 500m Reach

200G QSFP56 DR4 Optical Transceiver

• Data Rate: 200 Gbps

• Form Factor: QSFP56

• Standard: IEEE 802.3bs 200GBASE-DR4

• Protocol Compatibility: InfiniBand HDR

• Media: Parallel Single-Mode Fiber (4 lanes)

• Wavelength: 1310nm

• Max Reach: Up to 500m (with FEC)

• Application: Short to medium-reach data center interconnects

Key Features:
Designed for high-density, high-bandwidth switching environments, this module provides a reliable and efficient solution for 200G Ethernet and HDR InfiniBand networks.

All versions accurately convey the original information in standard industry terminology. You can choose the one that best fits your documentation or marketing materials.

200GE QSFP56 DR4 Optical Transceiver

• Model: VQS-SPO201-DR4CZ

• Technology: DML (Directly Modulated Laser)

• Wavelength: 1310nm

• Reach: Up to 500 meters

  Product Specifications: 200G QSFP56 Optical Transceiver

  • Product Type: Pluggable Optical Module

  • Form Factor: QSFP56

  • Application: Data Center Interconnect

  • Data Rate: 200 Gbps

  • Supported Protocols: Ethernet, InfiniBand

  • Fiber Type: Single-Mode Fiber (SMF)

  • Operating Wavelength: 1310 nm

  • Transmission Reach: 0.5 meters to 2 kilometers

  • Optical Interface: MPO/MTP Connector



    Key Highlights:

    • This module is designed for high-speed, short to medium-reach links within and between data centers.

    • The QSFP56 form factor and support for both Ethernet and InfiniBand make it versatile for high-performance computing and networking environments.
