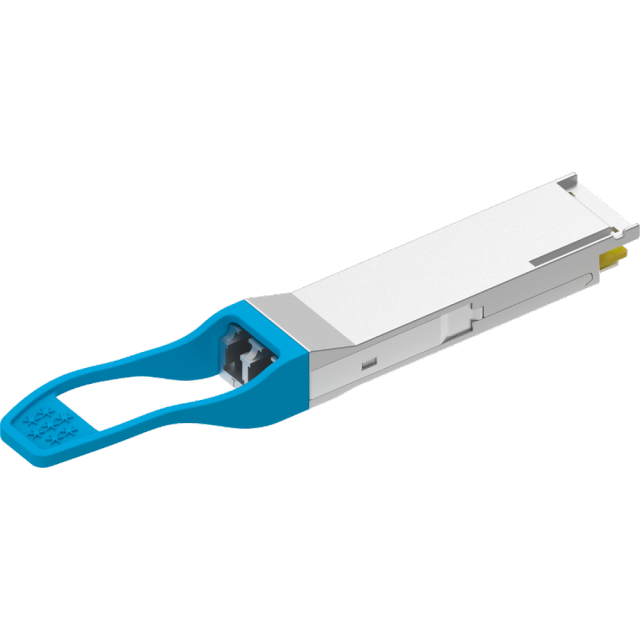

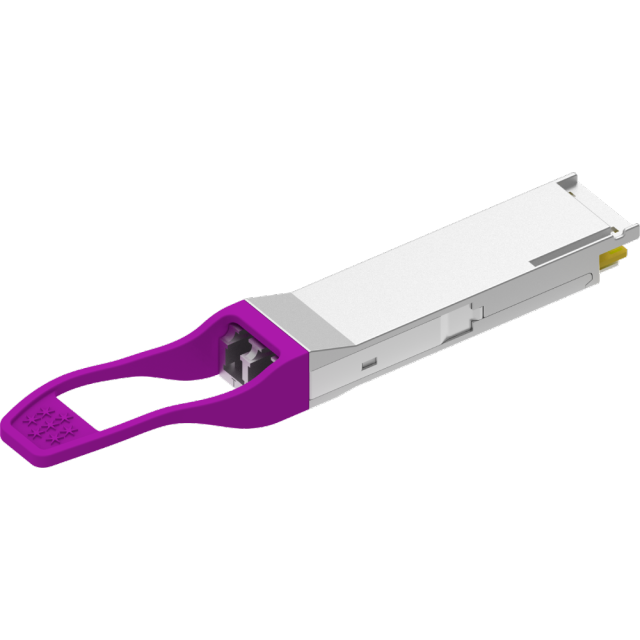

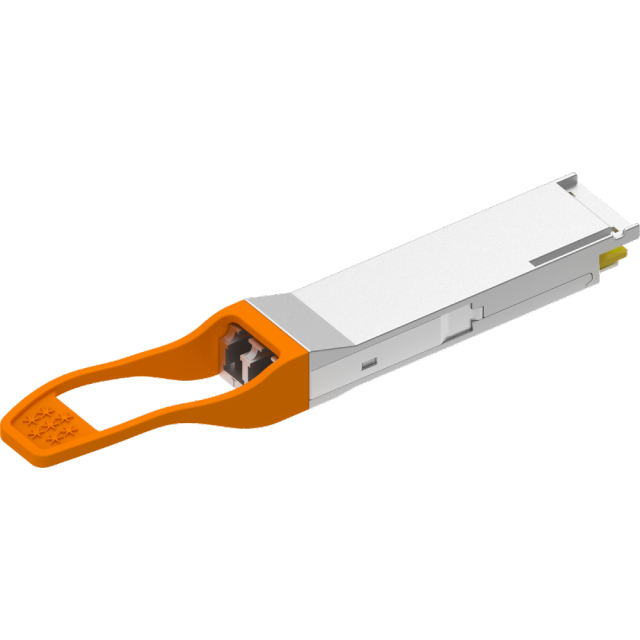

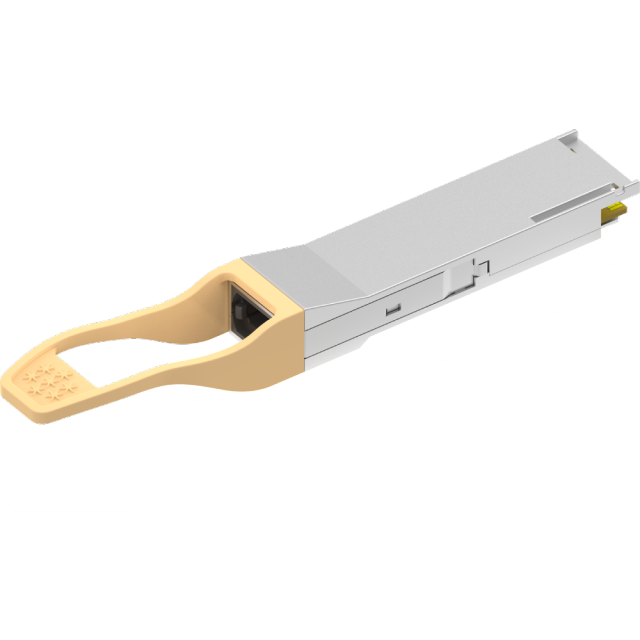

  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology

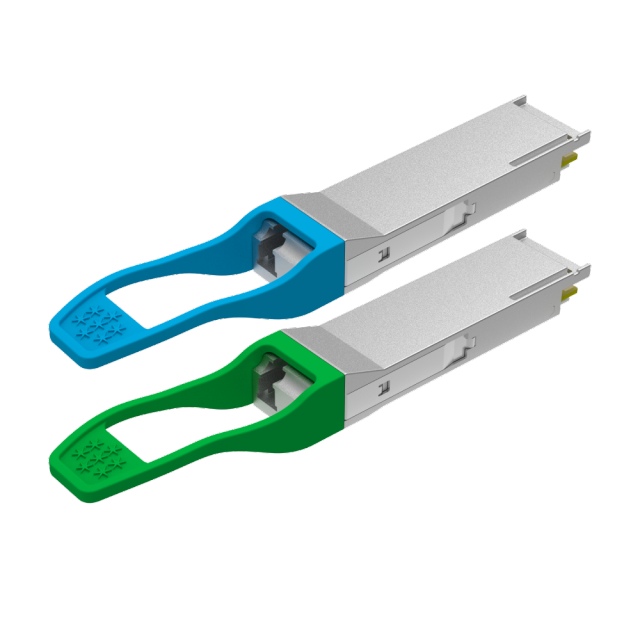

  • QSFP28 100G BiDi ER1 40km Optical Transceiver

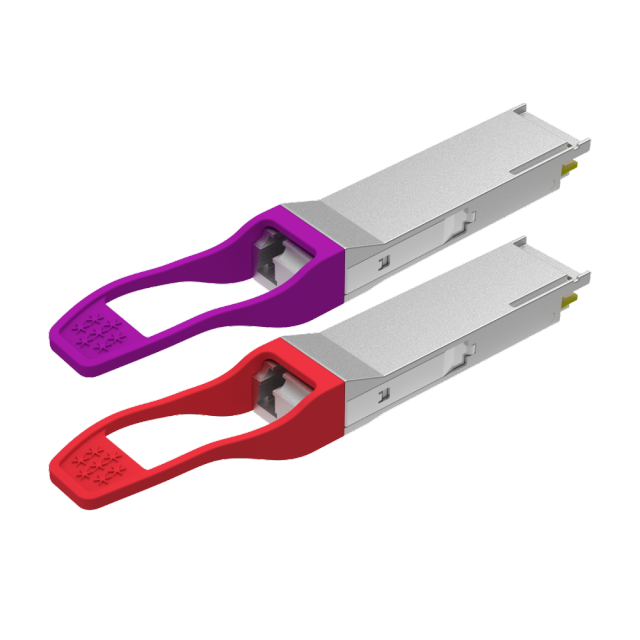

  • QSFP28 100G BiDi LR1 Transceiver 1271nm/1331nm Wavelengths 10km Reach
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G BiDi ER1 40km Optical Transceiver
  • QSFP28 100G BiDi LR1 Transceiver 1271nm/1331nm Wavelengths 10km Reach

QSFP28 CLR4 100G Optical Transceiver DML 2km/10km Reach

No.100G QSFP28 CLR4 DML 2km/10km
  • Hot-pluggable, full-duplex transceiver module packaged in QSFP28 form factor
  • 4 channels DFB-based CWDM uncooled transmitter and PIN ROSA
  • Transmission rates of up to 25.78125Gbps per channel
  • Compliant with QSFP28 MSA and 100G CLR4 MSA Ethernet transport protocol
  • Compatible with 100GE and InfiniBand HDR transport protocols
  • Distance up to 2km or 10km using 1 pairs of single-mode fibers (both require FEC to be turned on)
  • Power consumption less than 3.5w
  • Dual LC optical connectors
  • Commercial and industrial grade operating temperature range
  • Supply voltage 3.3V
  • RoHS compliant (lead-free)
Get The Latest Quote
Add to Quote List Browse the list
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G BiDi ER1 40km Optical Transceiver
  • QSFP28 100G BiDi LR1 Transceiver 1271nm/1331nm Wavelengths 10km Reach
  • Description
  • Additional Information
  • Ordering & Payment Terms
This 100G QSFP28 CLR4 optical transceiver is designed for medium to long-reach data center interconnections. Compliant with the 100G CLR4 MSA standard, it supports both 100 Gigabit Ethernet and InfiniBand EDR protocols. The module features integrated CWDM MUX/DEMUX for the four channels (1271nm, 1291nm, 1311nm, 1331nm) and achieves transmission distances of up to 2km or 10km over a pair of single-mode fibers, without requiring Forward Error Correction (FEC).
Part Number Description Key Differences
VQS-SPO101-CCR4C 100GE QSFP28 CLR4 DML CWDM4 Optical Module, 2km Reach Commercial Temperature Range
VQS-SPO101-CCR4T Industrial-grade 100GE QSFP28 CLR4 DML CWDM4 Optical Module, 2km Reach Industrial Temperature Range
VQS-SPO101-CMR4C 100GE QSFP28 CLR4 DML CWDM4 Optical Module, 10km Reach Commercial Temperature Range
VQS-SPO101-CMR4T Industrial-grade 100GE QSFP28 CLR4 DML CWDM4 Optical Module, 10km Reach Industrial Temperature Range

Product Type: Pluggable Optical Transceiver
Form Factor: QSFP28
Application: Data Center Interconnect
Data Rate: 100G to 112G

Protocol Support:

  • Ethernet

  • InfiniBand

Optical Specifications:

  • Media Type: Single-Mode Fiber (SMF)

  • Wavelength: CWDM

  • Transmission Reach: 2 km to 20 km

Host Interface: Dual LC
