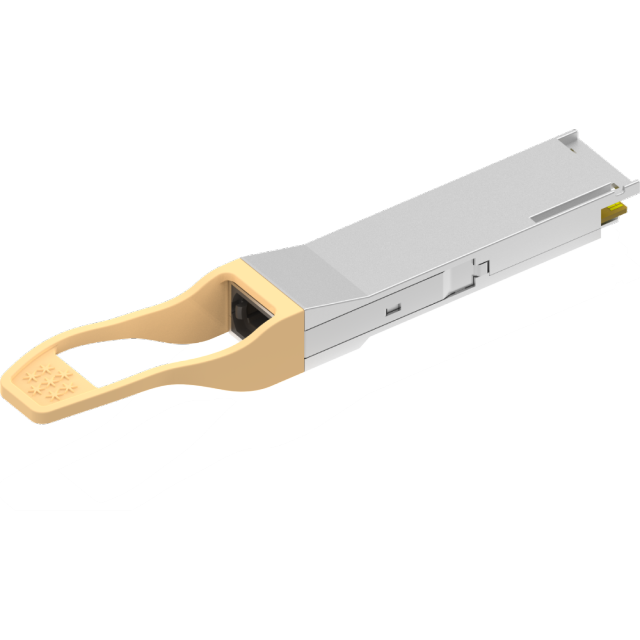

The 128GFC QSFP28 eSR4 optical transceiver series is engineered for short-haul, high-density interconnections in data center environments, particularly within internal storage area networks.
Key Features:
Protocol Compatibility: Native support for 128GFC and 4x32GFC Fibre Channel. Also compatible with 40G/100G Ethernet, InfiniBand FDR/EDR, and OTN OTU4 transport protocols.
Technology: An enhanced version of the standard 128GFC QSFP28 SR4, utilizing 4-channel parallel transmission over multimode fiber.
Optical Specifications:
Central Wavelength: 850nm
Maximum Reach: Up to 200m on OM3 fiber; Up to 300m on OM4 fiber.
Physical Interface: QSFP28 form factor.
Operating Environment: Offers an optional industrial-grade operating temperature range for demanding conditions.
| P/N | Description | Form Factor | Protocols | Media Type | Wavelength | Reach | Notes |
|---|---|---|---|---|---|---|---|
| VQS-MPO111-eSR4C | 100G SR4 Optical Module | QSFP28 | 100GE, OTU4, 128GFC | VCSEL, MMF | 850nm | 300m | Standard Grade |
| VQS-MPO111-eSR4T | 100G SR4 Optical Module | QSFP28 | 100GE, OTU4, 128GFC | VCSEL, MMF | 850nm | 300m | Industrial Grade |
Product Specification: QSFP28 Optical Transceiver
Product Type: Pluggable Optical Module
Form Factor: QSFP28
Application: Data Center Interconnect
Data Rate: 100G-112G per Channel
Protocol: Fibre Channel
Media Type: Multimode Fiber (MMF)
Wavelength: 850nm
Maximum Reach: < 2 kilometers
Interface: MPO/MTP Connector
