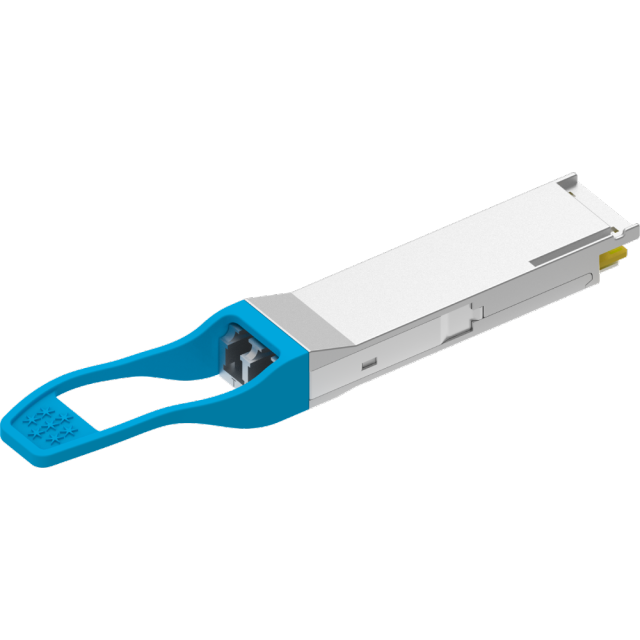

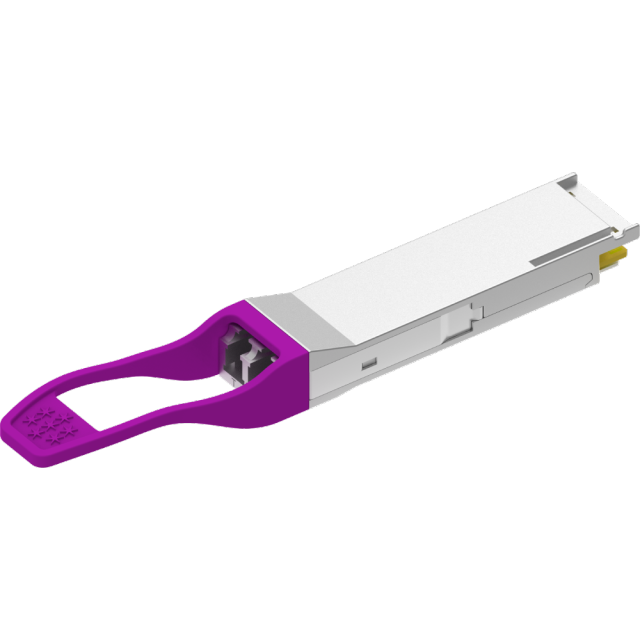

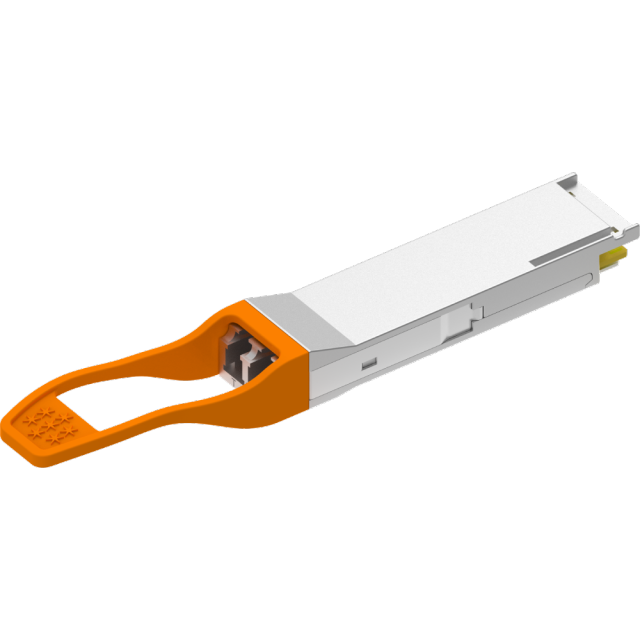

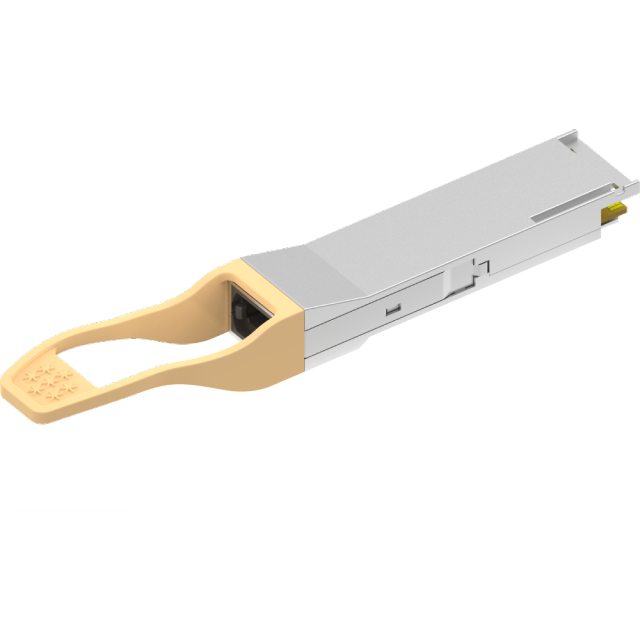

  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology

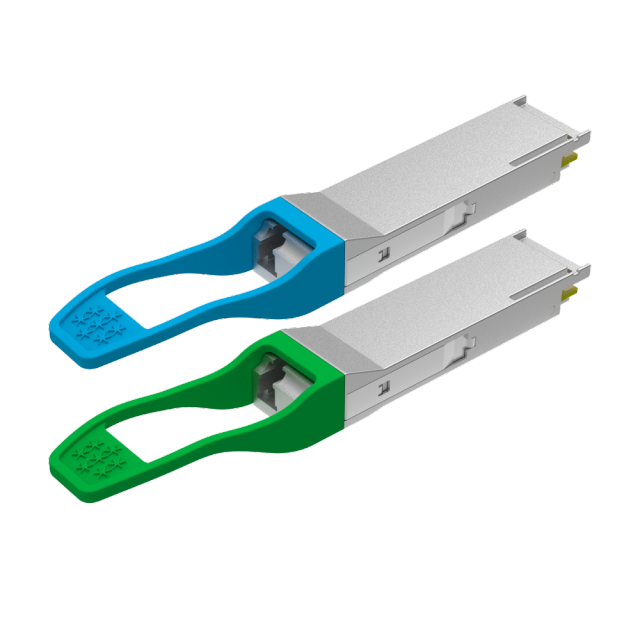

  • QSFP28 100G BiDi ER1 40km Optical Transceiver

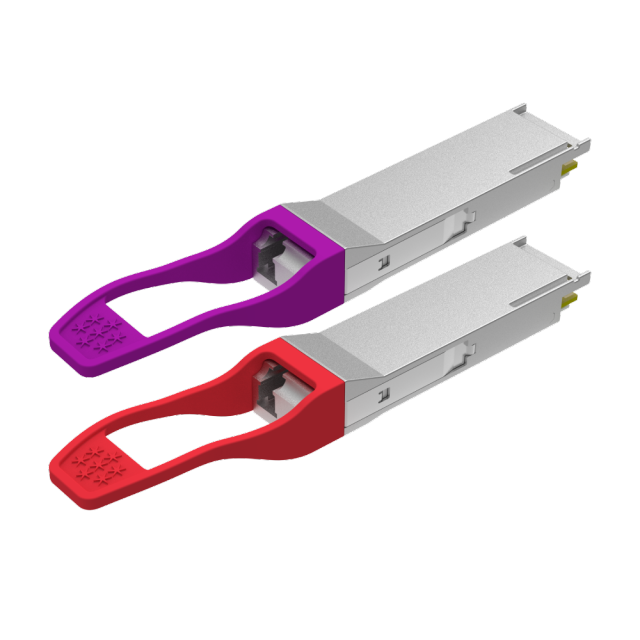

  • QSFP28 100G BiDi LR1 Transceiver 1271nm/1331nm Wavelengths 10km Reach
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G BiDi ER1 40km Optical Transceiver
  • QSFP28 100G BiDi LR1 Transceiver 1271nm/1331nm Wavelengths 10km Reach

QSFP28 100G CWDM4 DML Optical Transceiver for 2km/10km

No.100G QSFP28 CWDM4 DML 2km/10km
  • Hot-pluggable, full-duplex transceiver module packaged in QSFP28 form factor
  • 4 channels DFB-based CWDM uncooled transmitter and PIN ROSA
  • Transmission rates of up to 25.78125Gbps per channel
  • Compliant with QSFP28 MSA and CWDM4 MSA Ethernet transport protocol
  • Compatible with 100GE and InfiniBand HDR transport protocols
  • Distance up to 2km or 10km using 1 pairs of single-mode fibers (both require FEC to be turned on)
  • Power consumption less than 3.5w
  • Dual LC optical connectors
  • Commercial and industrial grade operating temperature range
  • Supply voltage 3.3V
  • RoHS compliant (lead-free)
Get The Latest Quote
Add to Quote List Browse the list
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G BiDi ER1 40km Optical Transceiver
  • QSFP28 100G BiDi LR1 Transceiver 1271nm/1331nm Wavelengths 10km Reach
  • Description
  • Additional Information
  • Ordering & Payment Terms
Designed for medium-to-long-range data center interconnections, the 100G QSFP28 CWDM4 optical transceiver complies with the CWDM4 MSA specification and supports both 100G Ethernet and InfiniBand EDR protocols. It features an integrated 4-channel CWDM MUX and DEMUX with center wavelengths of 1271nm, 1291nm, 1311nm, and 1331nm. Utilizing a duplex single-mode fiber (SMF), it achieves transmission distances of up to 2km or 10km, both requiring Forward Error Correction (FEC).
Part Number Description
VQS-SPO101-CIR4C 100GE QSFP28 CWDM4 DML 2km Optical Module
VQS-SPO101-CIR4T Industrial-grade 100GE QSFP28 CWDM4 DML 2km Optical Module
VQS-SPO101-CLR4C 100GE QSFP28 CWDM4 DML 10km Optical Module
VQS-SPO101-CLR4T Industrial-grade 100GE QSFP28 CWDM4 DML 10km Optical Module

Product Overview: QSFP28 Optical Transceiver

  • Product Type: Pluggable Optical Module

  • Primary Application: Data Center Interconnects

  • Form Factor: QSFP28

  • Data Rate: 100G to 112G per Channel

Technical Specifications:

  • Protocol Support: Ethernet, InfiniBand

  • Operating Wavelength: CWDM

  • Media Type: Single-Mode Fiber (SMF)

  • Transmission Reach: 2 km to 20 km

  • Fiber Optic Interface: Dual LC
