QSFP28 100G BiDi LR1 Transceiver 1271nm/1331nm Wavelengths 10km Reach

No.100G QSFP28 BiDi LR1 EML 1271nm/1331nm 10km
  • Hot-pluggable, full-duplex transceiver module packaged in QSFP28 form factor
  • Single-channel 100G PAM4 1271nm/1331nm cooled EML transmitter and PIN receiver
  • Transmission rates of up to106.25Gbps
  • Compliant with QSFP28 MSA (SFF-8665) and 100G Lambda MSA 100G-LR1-10
  • Built-in 4:1 gearbox DSP on receiver and transmitter channels
  • Transmission up to 10km on SMF using KP4 FEC
  • Simplex LC optical interface
  • Maximum power consumption 4.5W
  • Built-in digital diagnostic function
  • Commercial operating temperature range
  • Supply voltage 3.3V
  • RoHS compliant (lead-free)
Get The Latest Quote
Add to Quote List Browse the list
  • Трансивер QSFP28 100G BiDi LR1, длина волны 1271 нм/1331 нм, дальность 10 км
  • QSFP28 100G BiDi ER1 40km Optical Transceiver
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • QSFP28 100G Optical Transceiver, 4WDM-10 (CWDM4 MSA), 10km Reach, DML Technology
  • Description
  • Additional Information
  • Ordering & Payment Terms
This 100G QSFP28 BiDi LR1 optical transceiver enables 100G Ethernet transmission over 10km of single-mode fiber using a single fiber strand. It operates on a single optical channel at 100Gbps, utilizing PAM4 modulation. The module performs bidirectional conversion, multiplexing four 25Gbps NRZ electrical lanes into one 100Gbps PAM4 optical signal for transmission, and demultiplexing the received optical signal back into four electrical lanes. Its electrical interface complies with the QSFP28 MSA and OIF CEI-28G-VSR specifications.

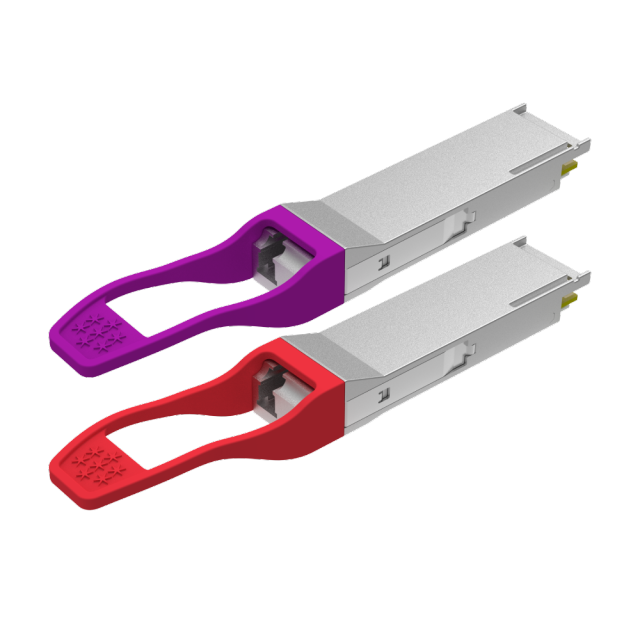

Part Number Description Wavelength (Tx/Rx) Reach Latch Color
VBQ-2733101-LR1 100G QSFP28 Bidi LR1 EML Transceiver 1271nm / 1331nm 10km Purple
VBQ-3327101-LR1 100G QSFP28 Bidi LR1 EML Transceiver 1331nm / 1271nm 10km Red

  • Product Type: Pluggable Optical Transceiver

  • Form Factor: QSFP28

  • Application: Data Center Interconnect

  • Data Rate: 100G

  • Protocol: Ethernet

  • Media Type: Single-Mode Fiber (SMF)

  • Wavelength: Bi-Directional (BiDi)

  • Reach: 2 km to 20 km

  • Interface: Single LC Duplex
