QSFP28 100G BiDi ER1 40km Optical Transceiver

This 100G QSFP28 BiDi ER1 module is designed for long-reach 100 Gigabit Ethernet applications over a single strand of single-mode fiber, supporting links of up to 40km.

• Data Rate: 100 Gbps aggregate.

• Form Factor: QSFP28.

• Range: Extended Reach (ER1) up to 40km.

• Technology: Bi-Directional (BiDi) on a single fiber.

• Electrical Interface: 4x 25Gbps NRZ lanes, compliant with OIF CEI-28G-VSR and QSFP28 MSA.

• Optical Interface: 1x 100Gbps PAM4 modulated signal on a single fiber.

• Function: Performs electrical-to-optical (E/O) and optical-to-electrical (O/E) conversion between the four-lane electrical interface and the single-lane optical interface.

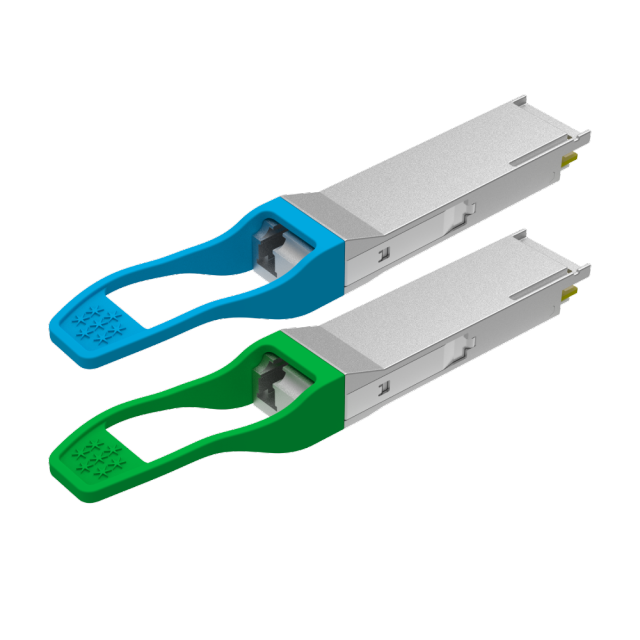

  P/N	Description	Wavelength (Tx/Rx)	Reach	Color of Latch
  VBQ-S7S8101-ER1C	100G QSFP28 BiDi ER1 EML	Tx: 1304.58nm / Rx: 1309.14nm	40km	Blue
  VBQ-S8S7101-ER1C	100G QSFP28 BiDi ER1 EML	Tx: 1309.14nm / Rx: 1304.58nm	40km	Green

  • Product Type: Pluggable Optical Transceiver

  • Form Factor: QSFP28

  • Application: Data Center Interconnect

  • Data Rate: 100G

  • Protocol: Ethernet

  • Wavelength: Bi-Directional (BiDi)

  • Media Type: Single-Mode Fiber (SMF)

  • Reach: 25km to 50km

  • Interface: Single LC Duplex
