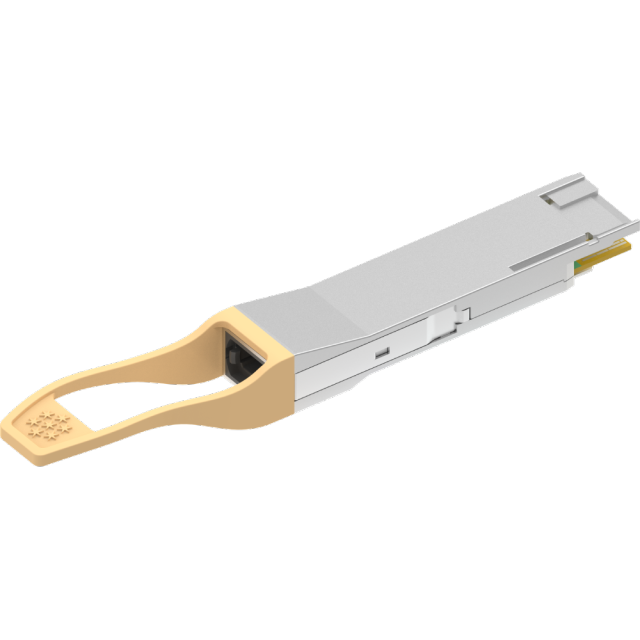

The GQD-MPO201-ESR8C is an Eight-Channel, pluggable, parallel fiber-optic QSFP Double Density (QSFP-DD) transceiver designed for 2x100 Gigabit Ethernet applications. It is a high-performance module for short-range, multi-lane data communication and interconnects.
Key Features:
Form Factor: QSFP-DD (Quad Small Form-Factor Pluggable Double Density)
Application: 200GbE (2x100G) Short-Range Ethernet
Data Rate: 8x 25.78125 Gbps per lane
Total Bandwidth: 200 Gbps aggregate (8 lanes in each direction)
Wavelength: 850nm nominal
Fiber Type: Multimode (OM3/OM4)
Performance Specifications:
Reach with OM3 Fiber: Up to 30 meters
Reach with OM4 Fiber: Up to 50 meters
FEC (Forward Error Correction): Not required, reducing link latency by hundreds of nanoseconds.
Interfaces:
Electrical Interface: 76-contact edge-type connector
Optical Interface: 16-fiber MTP/MPO connector
Technology & Benefits:
This module incorporates Gigalight's proven circuit and VCSEL (Vertical-Cavity Surface-Emitting Laser) technology to deliver reliable, long-life, and consistent high-performance service. It provides enhanced optical performance for low-latency Ethernet optical connectivity.
Product Type: Pluggable Optical Module
Application: Data Center
Form Factor: QSFP-DD
Data Rate: 200G
Protocol: Ethernet
Media Type: MMF (Multi-Mode Fiber)
Wavelength: 850nm
Reach: < 500m
Interface: MPO/MTP Connector
