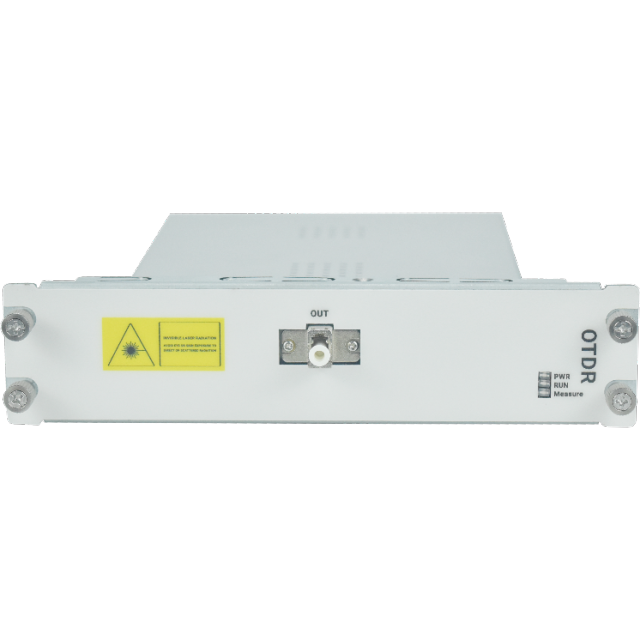

An OTDR (Optical Time Domain Reflectometer) Fiber Auto-Monitoring Board is a key component in optical communication network monitoring systems. It operates by analyzing backscattered light generated as light pulses travel through an optical fiber, thereby capturing vital attenuation-related data.
This board enables precise measurement of optical fiber attenuation, connector losses, and fault locations, while also providing insight into the loss distribution along the fiber link. It serves as an essential instrument for the construction, maintenance, and continuous monitoring of optical cables.
Product Technical Specifications
Category
Parameter
Specifications
Optical Performance
Dynamic Range (SNR=1)
24-35 dB (typical at 25°C, 20 μs pulse) 22-33 dB (typical at -5°C to 55°C, 20 μs pulse)
Test Items: Total loss, event point distance, link loss, return loss/reflection Thresholds: Link loss: 0.01 to 9.99 dB; Reflection: -14 to -70 dB; End: 1 to 99 dB Event Points: Up to 99 Auto Configuration: Distance range, pulse width, averaging count
Manual Test
Test Items: Transmission distance, 2-point loss, link loss, reflection
General Specifications
Laser Safety
IEC 60825-1:2007: CLASS 1 21 CFR 1040.10
Power Supply
+12 VDC ±1V, Maximum 1.5A
Interfaces
Ethernet: 20-pin to 10/100M RJ45 Serial: RS-232C, 115.2 kbps (for IP address configuration)
Physical
Size: 148.4 × 85.4 × 22 mm Weight: < 0.5 kg
Environmental
Operating Temp: -5°C to +55°C Operating Humidity: ≤95% (non-condensing) Storage Temp: -40°C to +70°C
EMC Compliance
EN61326-1, EN61000-3-2
Application
Coherent Optical Communication
Metropolitan Area Network (MAN)
Telecommunications (Telecom)
Product Type
Subsystems
Media Type
Single-Mode Fiber (SMF)
