OSS Optical Protection Board: Ensuring Secure Fiber Optic Routing with Primary/Backup Channel Monitoring

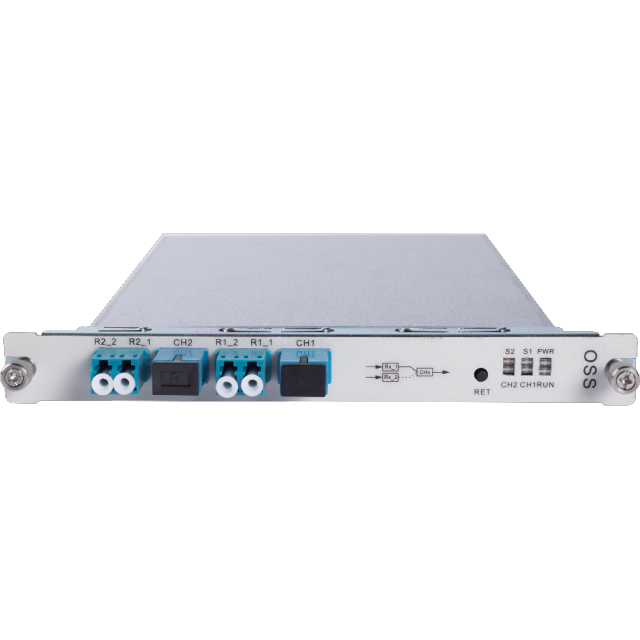

OSS Optical Protection Board

The OSS Optical Protection Board ensures robust and secure communication for critical fiber optic routing and equipment.

• Dual-Channel Protection: Utilizes optical channel selection components to route transmitted signals exclusively through either the working or the backup channel.

• Comprehensive Monitoring: Provides real-time monitoring of both primary and backup fibers, with integrated optical power monitoring for each.

• Enhanced Reliability: This proactive monitoring and switching mechanism effectively eliminates the risk of simultaneous interruption on both primary and backup fiber routes, guaranteeing maximum uptime.



  Product Technical Specifications

  Parameter Category	Specification	Details / Conditions
  Optical Performance
  Wavelength Range	1310 ± 50 nm and 1550 ± 50 nm
  Monitoring Optical Power Range	+25 dBm to -50 dBm
  Optical Power Accuracy	≤ 0.5 dB	For power levels from +20 dBm to -50 dBm
  	≤ 1.0 dB	For power levels from -40 dBm to -50 dBm
  Optical Power Resolution	≤ 0.01 dB
  Insertion Loss	≤ 1.5 dB	For OSS Path Protection
  Wavelength-Related Loss (WDL)	≤ 0.25 dB
  Polarization-Related Loss (PDL)	≤ 0.1 dB
  Return Loss	≥ 45 dB
  Crosstalk	≥ 55 dB
  Switching Performance
  Switching Time	≤ 20 ms
  Physical & Environmental
  Module Dimensions (W x H x D)	177 mm x 20 mm x 225 mm
  Operating Temperature	-10 °C to +70 °C
  Storage Temperature	-40 °C to +80 °C
  Relative Humidity	5% to 95%	Non-condensing
  Management & Compliance
  Management Methods	CLI, NetRiver, Web
  Power Consumption	< 5 W
  Safety & EMC Standards	Complies with FCC, UL, CE, TUV, CSA

  • Application: Coherent Optical Communication, Metropolitan Area Network (MAN), Telecommunications

  • Product Type: Optical Subsystems

  • Media Type: Single-Mode Fiber (SMF)

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders
