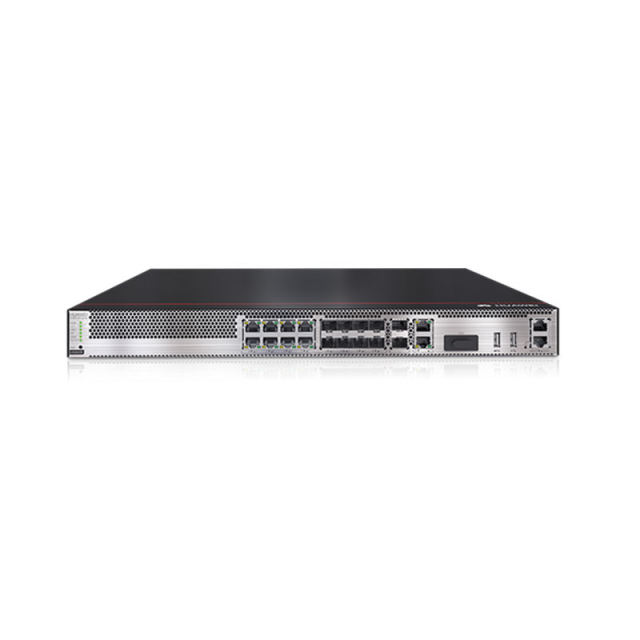

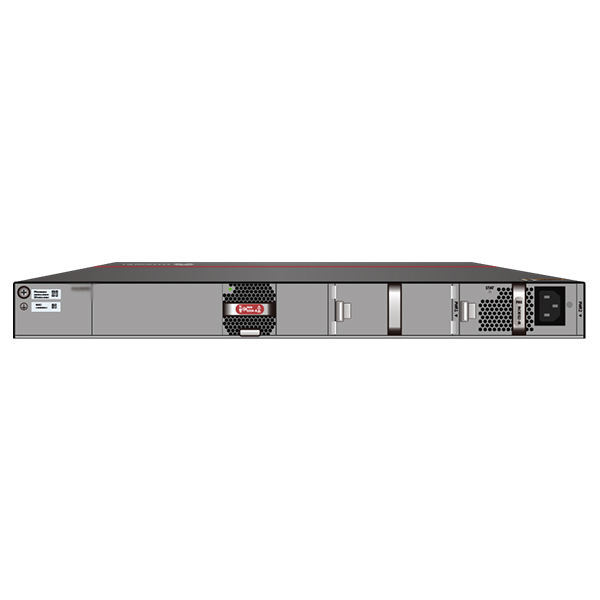

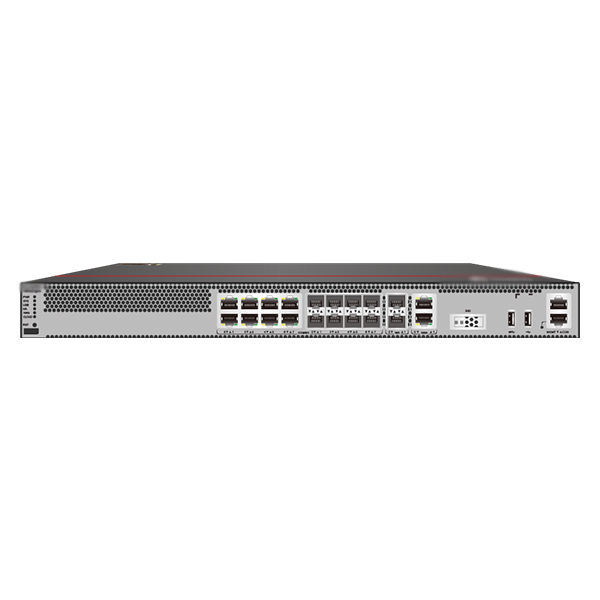

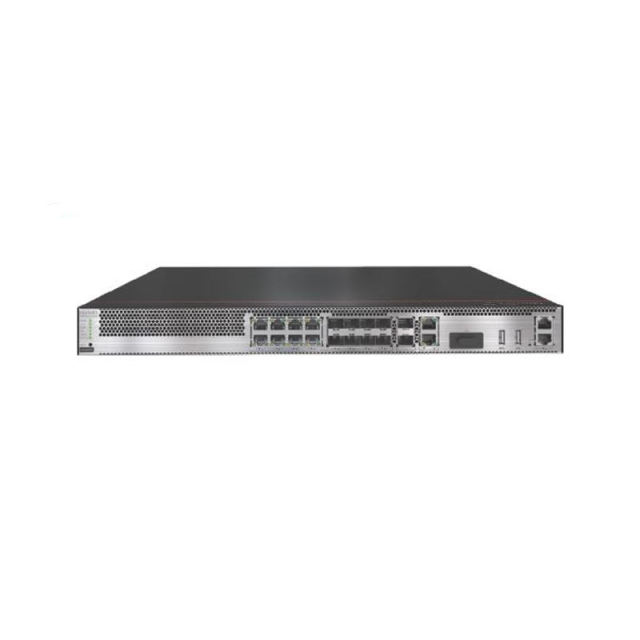

Original Huawei USG6525E-AC Enterprise-Grade Firewall

No.USG6525E-AC

Form Factor: 1U Rackmount
Dimensions (H x W x D): 43.6 mm x 442 mm x 420 mm
Weight: 5.8 kg (Full Configuration)
Power Supply: AC 100V-240V
Max Power Consumption: 40W

Interfaces & Connectivity

WAN Ports: 2 x GE (Gigabit Ethernet)
Combo Ports: 8 x GE (Gigabit Ethernet, RJ45/SFP)
High-Speed Uplinks: 2 x 10GE SFP+
USB Ports: 1 x USB 2.0, 1 x USB 3.0
External Storage: Optional SSD (M.2) card, supports 64GB/240GB

Performance

Throughput: 2/2/2 Gbit/s (Firewall, IPS, NGFW)
VPN Support: Yes
Simultaneous Sessions: Information Not Provided

Get The Latest Quote

Add to Quote List Browse the list

Description
Ordering & Payment Terms

Product Description

The HiSecEngine USG6500E series are enterprise-class, fixed-configuration next-generation firewalls designed for small and medium-sized enterprises and chain organizations.

Beyond providing essential NGFW capabilities, this series can interoperate with other security devices to proactively defend against network threats. It enhances border detection capabilities, effectively defends against advanced threats, and prevents performance degradation. The product features pattern matching and accelerated encryption/decryption service processing, which significantly boosts performance for content security detection and IPSec services.

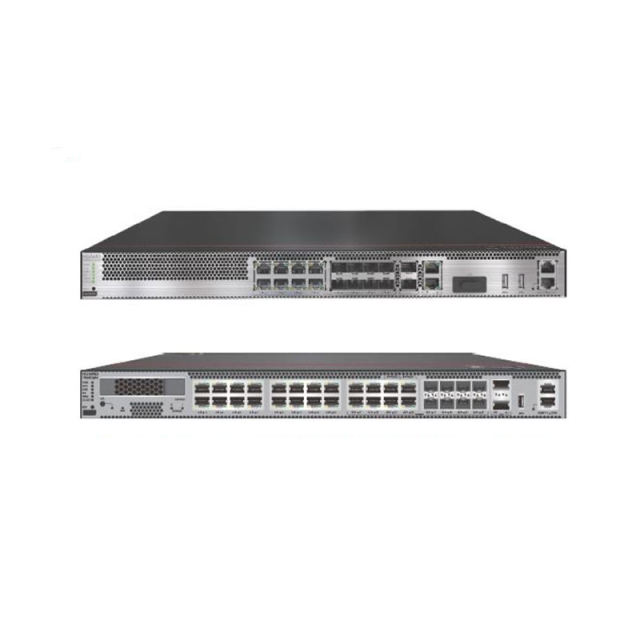

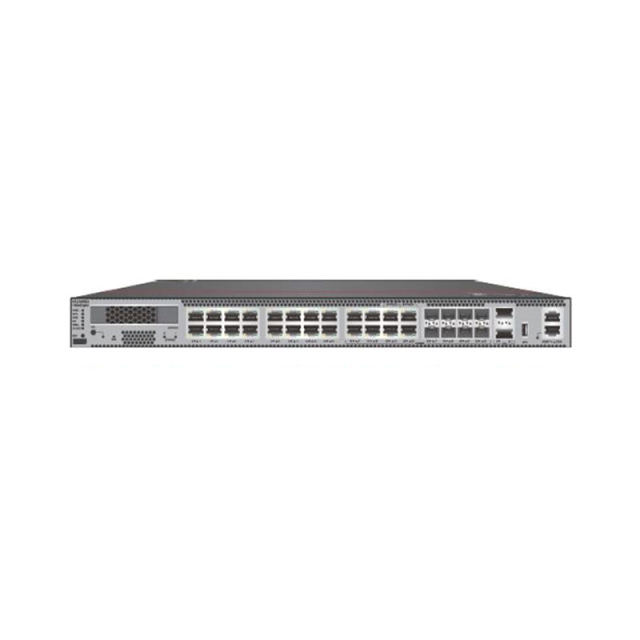

CloudEngine USG6500 Series

Model	USG6525E	USG6555E	USG6565E	USG6575E-B	USG6585E
Dimensions (HxWxD) mm	43.6x442x420
Form Factor/Height	1U
Fixed Interface	2x10GE (SFP+) + 8xGE Combo+ 2xGE WAN			16GE (RJ45) + 8xGE Combo+ 2x10GE (SFP+)	2x10GE (SFP+) + 8xGE Combo+ 2xGE WAN
Dedicated management port	YES
Bypass Port	--			YES	--
USB Port	1xUSB 2.0+ 1xUSB 3.0			1xUSB 3.0	1xUSB 2.0 +1xUSB 3.0
Weight (Full Configuration)	5.8 kg
Extermal Storage	Optional, SSD (M.2) card supported, 64GB/240GB	Optional, SSD (M.2) card supported, 240GB		Optional, SSD (1*25 inch） supported, 240GB/960GB,HDD1TB	Optional, SSD (M.2) card supported, 240GB
AC Power Supply	100V to 240V
Max power consumption of	40W			76.9W	40W
Power Supplies	Single AC power supply; optional dual AC power supplies
Operating Environment（Temperature/Humidity）	Temperature: 0°C to 45°C Humidity: 5% to 95%, non-condensing
Non-operating Environment	Temperature: -40°C to +70°C Humidity: 5% to 95%, non-condensing
