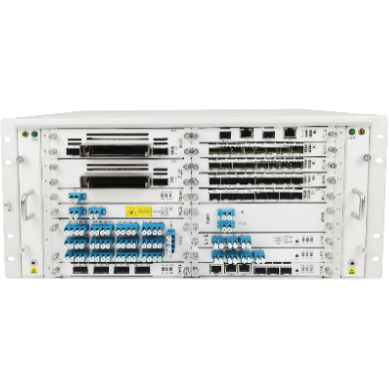

Optical Transport Platform: High-Capacity, Multi-Service Access Solution

Optical Transport Platform

The Optical Transport System series is a next-generation, high-capacity, multi-service optical network access platform developed by VAN. Engineered for high integration, high port density, diverse service support, and flexible configuration, this platform delivers efficient and scalable transport solutions.

It features an SNMP-based graphical management interface, supporting both Client-Server (C/S) and Browser-Server (B/S) architectures. This enables simplified management and maintenance with clear fault localization, significantly reducing operational costs.

Widely applicable across telecommunications, broadcasting, electric power, education, cloud computing, and information security sectors, the platform is suitable for:

• National, inter-provincial, and intra-provincial backbone networks

• Metropolitan area networks (MANs)

• Various dedicated network environments

  Optical Transport System - Product Specifications

  Parameter	Optical Transport System 1U	Optical Transport System 2U	Optical Transport System 4U	Optical Transport System 5U
  Device Dimensions (W×H×D)	440 × 44 × 285 mm	440 × 85 × 285 mm	440 × 176 × 250 mm	440 × 220 × 285 mm
  Number of Service Slots	4 slots	8 slots	16 slots	20 slots
  Power Consumption	< 120W	< 200W	< 300W	< 400W
  Wavelength Range	DWDM: 1529.16 nm – 1567.14 nm CWDM: 1271 nm – 1611 nm
  Channel Spacing	50/100 GHz fixed 37.5-400 GHz, flex-grid
  Supported Service Types	SDH, SONET, Ethernet, SAN, OTN, Video
  Maximum Single Channel Rate	100G, 200G, 400G
  Optical Interface Transmission Mode	2R Mode: Supports transparent transmission of rates from 32M to 111.81Gbit/s per channel. 3R Mode: Supports various rates per channel, including 155M, 622M, 1.25G, 2.488G, 4GFC, 8GFC, 10GFC, 11.3G, 25G, 40G, 56G, 100G, 200G, 400G, etc.
  Network Topology	Point-to-point, Linear, Star, Ring, Ring-Chain, Tangent Ring, Intersecting Ring, and Mesh networking
  Network Management	CLI, NetRiver, Web
  Operating Temperature	-10°C to +70°C
  Storage Temperature	-40°C to +80°C
  Relative Humidity	5% to 95% (non-condensing)
  Power Supply (Nominal)	AC: 90V ~ 264V, 50/60 Hz DC: -36V ~ -60V
  Safety & EMC	Complies with FCC, UL, CE, TUV, CSA standards

  • Application: Coherent Optical Communication, Metropolitan Area Network (MAN), Telecom

  • Product Type: Subsystems

  • Media Type: Single-Mode Fiber (SMF)
