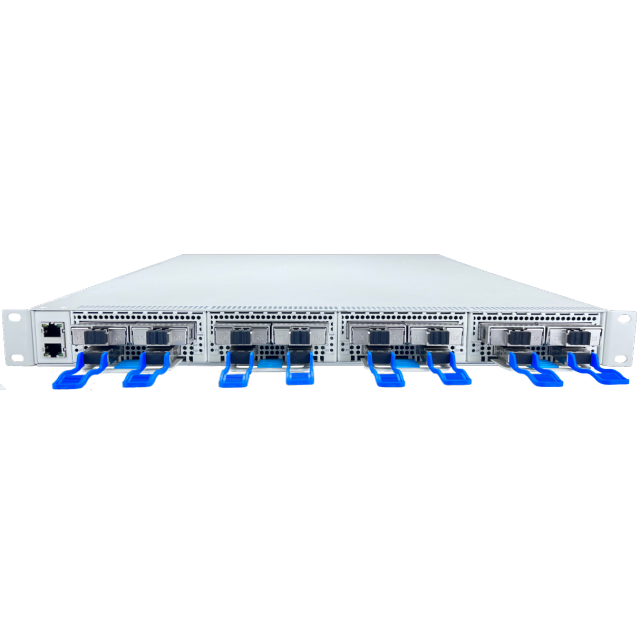

Open Coherent DWDM Platform for DCI and Metro Networks: 1U 3.2T DCI BOX 2.0
No.1U 3.2T DCI BOX 1U 3.2T DCI BOX 2.0
Modular design, on-demand configuration, smooth upgrade, AC/DC power supply and fans are modular design
Supports hot swap, flexible replacement according to demand
Large capacity, ultra-high density, 2Tbps line side access and bidirectional 3.2Tbps electrical layer processing capability, up to 3.2Tbps processing capacity per 1U rack
Ultra-low power consumption, based on state-of-the-art single-carrier 200G/400G coherent DSP and photonic integration technologies, including CFP2-DCO and terminal optics
Space-saving modular optical layer function, realize the modularization and miniaturization of various optical layer devices, and flexibly realize optical layer services
Front-to-back airflow design, AC/DC power supply, reasonable height, width and depth design, adapt to the server rack requirements of the data center computer room, and can be deployed with the server on the same rack
Simple operation and maintenance, based on the SDN design concept, open APIs, can be quickly automated and integrated in any IT operating environment to achieve rapid service deployment
Supports unified network management platform based on SNMP, network management methods CLI (telnet and console), Web, NetRiver (graphical interface)
The 1U 3.2T DCI BOX 2.0 is an open, coherent DWDM optical transport platform. It is designed for Data Center Interconnect (DCI) and metropolitan optical transmission applications.
Technical Specifications
Category
Detail
Interface Capacity
Maximum 4x 800G
Wavelength Range
1529.16 nm to 1567.14 nm
Frequency Range
191.30 THz to 196.05 THz
Modulation & Capacity per Wavelength
400G (QPSK) / 200G (16QAM) / 100G (16QAMps)
Supported Topologies
Chain, Star, Ring
Physical Dimensions (W x H x D)
440 mm x 44 mm (1RU) x 535 mm
Rack Compatibility
19-inch Standard Rack
Chassis & Cooling
All-in-one chassis; Front-to-back airflow with FRU (Field Replaceable Unit) Fans
Power Supply
AC: 90V to 264V, 50/60 Hz DC: -36V to 60V
Typical Power Consumption
< 700W
Environmental
Operating Temperature
-10°C to +70°C
Storage Temperature
-40°C to +80°C
Relative Humidity
5% to 95% (non-condensing)
Compliance & Certifications
FCC, UL, CE, TUV, CSA
Ordering & Payment Terms:
Minimum Order Quantity (MOQ): Flexible for small orders
Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
Payment Method: T/T (Bank Transfer)
Payment Terms: 30% advance payment, with 70% balance due prior to shipment for bulk orders
