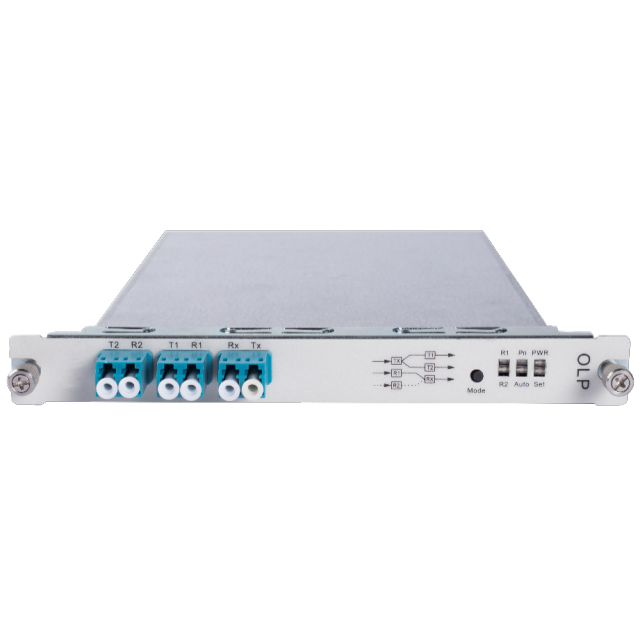

OLP (Optical Line Protection) is a fiber optic line backup protection system, which employs advanced optical path automatic switching technology and functions as an optical device designed for switching between primary and backup optical paths in fiber optic communications.
The system automatically monitors the status of the primary and backup optical signals and performs instant path switching when necessary. This ensures continuous operation of the protected system in the event of a complete failure in the main fiber cable, thereby enhancing service reliability for network operators.
OLP optical line protection cards are widely used for primary/backup protection across various trunk lines and in network configurations that require diverse optical path switching. Key advantages include:
Direct utilization of optical signals in the path
Compact size
Cost-effectiveness
High reliability
As a result, OLP systems have been widely adopted in numerous optical transmission applications.
Product Technical Specifications
Parameter Category
Specification
Details / Conditions
System Parameters
Wavelength Range
1310 ± 50 nm and 1550 ± 50 nm
Monitoring Optical Power Range
Tx (Transmitter)
+25 dBm to -50 dBm
Rx (Receiver)
+10 dBm to -50 dBm
Performance Specifications
Insertion Loss
1+1 Protection (Tx)
≤ 4.0 dB
1+1 Protection (Rx)
≤ 1.5 dB
1:1 Protection
≤ 1.5 dB
Optical Power Measurement Accuracy
Standard Range
≤ 0.5 dB (+20 dBm to -50 dBm)
Extended Low Range
≤ 1.0 dB (-40 dBm to -50 dBm)
Optical Power Resolution
≤ 0.01 dB
Wavelength-Related Loss (WDL)
≤ 0.25 dB
Polarization-Dependent Loss (PDL)
≤ 0.1 dB
Switching Time
≤ 20 ms
Return Loss
≥ 45 dB
Crosstalk
≥ 55 dB
Management & Physical
Management Methods
CLI, NetRiver, Web
Module Dimensions (W x H x D)
177 mm × 20 mm × 225 mm
Environmental Requirements
Operating Temperature
-10 °C to +70 °C
Storage Temperature
-40 °C to +80 °C
Relative Humidity
5% to 95%, non-condensing
Compliance & Power
Safety & EMC Standards
Complies with FCC, UL, CE, TUV, CSA
Power Consumption
< 5 W
Application: Coherent Optical Communication, Metropolitan Area Network (MAN), Telecommunications
Product Type: Optical Subsystems
Media Type: Single-Mode Fiber (SMF)
Ordering & Payment Terms:
Minimum Order Quantity (MOQ): Flexible for small orders
Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
Payment Method: T/T (Bank Transfer)
Payment Terms: 30% advance payment, with 70% balance due prior to shipment for bulk orders
