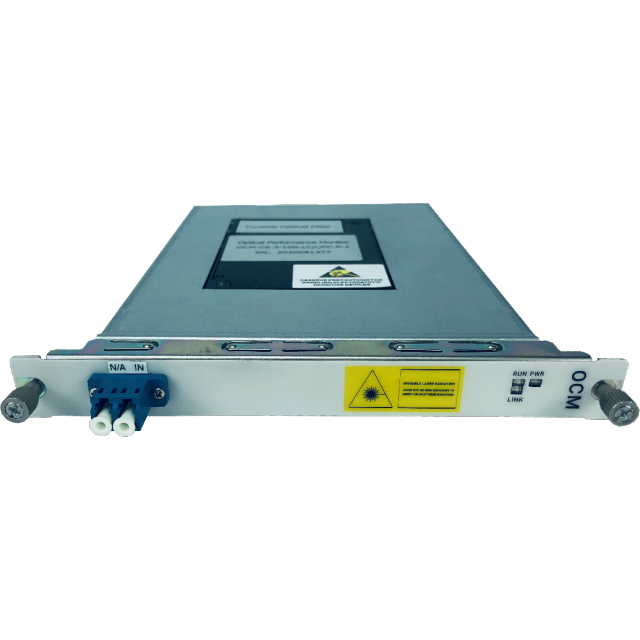

The DWDM Multi-Channel Monitoring Board (OCM) provides comprehensive, in-service monitoring of optical networks. It continuously tracks key parameters such as channel count, center wavelength, optical power, and signal-to-noise ratio (OSNR) at various points in the system.
The OCM reports all monitored data to the main control board for analysis. This capability enables real-time alarm detection and simplifies fault localization across the network, ensuring robust and manageable DWDM system operation.
Product Parameters & Technical Specifications
Parameter Category
Specification
General System Parameters
Wavelength Range
1528 ~ 1568 nm
Channel Spacing
50 GHz
Supported Signal Rate
100 Gbit/s
Scan Time
1000 ms
Number of Optical Ports
1 / 4 / 8
Power Specifications
Channel Power Range
-40 dBm to +10 dBm
Absolute Power Accuracy
±0.8 dB
Relative Power Accuracy
±1 dB
Power Resolution
0.1 dB
Single-Wavelength Power Detection Range
-40 dBm to +10 dBm
Power Detection Accuracy
±1.5 dB
Non-Adjacent Channel Power Divergence
10 dB
Wavelength Specifications
Absolute Wavelength Accuracy
±50 pm
Physical & Environmental
Dimensions (W × H × D)
177 mm × 20 mm × 225 mm
Weight
< 0.5 kg
Operating Temperature
-5°C to +55°C
Operating Humidity
≤95% (non-condensing)
Storage Temperature
-40°C to +70°C
Application
Coherent Optical Communication
Metropolitan Area Network (MAN)
Telecommunications (Telecom)
Product Type
Subsystems
Media Type
Single-Mode Fiber (SMF)
