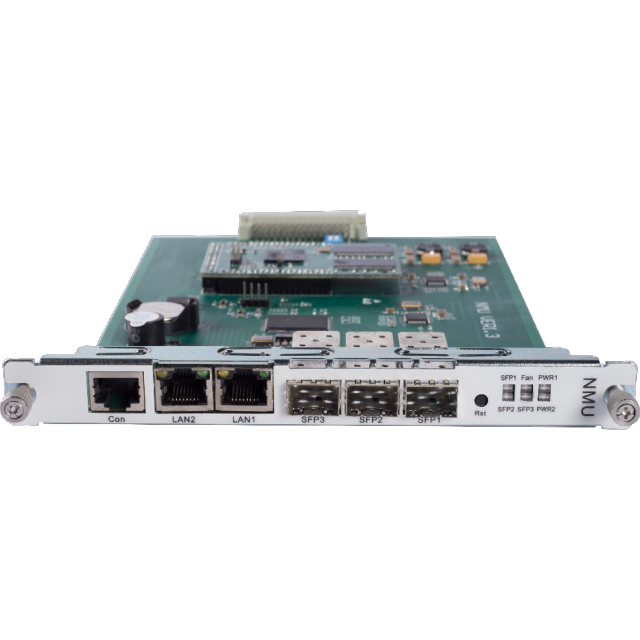

NMU Card: The Network Management Unit for Optical Transport Systems
No.NMU Card
Supports hot pluggable feature, allowing the replacement of components without interrupting the normal operation of the card
Supports local and remote online upgrades without affecting the normal operation of the card
Supports SNMP-based unified network management platform with CLI (telnet and console), Web, and NetRiver (graphical interface)
Supports in-band and out-of-band cascading network management and provides 3 SFP optical ports, 2 RJ45 electrical ports, and 1 Console serial port
Offers powerful multi-level network topology management capabilities, enabling fast and automatic discovery of network topology and generating intuitive graphical representations
Complies with TMN specifications, realizing functions such as device management, monitoring and deployment, software upgrade management, configuration file management, alarm and performance management, achieving comprehensive network management from device-level to network-level
The Network Management Unit (NMU) board is a management function module specifically designed by Easy Soaring Communications for its Optical Transport System series products. It provides comprehensive, system-wide management for the entire product line.
Utilizing a high-speed ARM processor, the NMU board delivers robust data processing capabilities. It offers multiple management interfaces for operational flexibility, including:
A graphical interface (NetRiver)
A web-based (WEB) interface
A Command-Line Interface (CLI) accessible via telnet and console
Based on a client-server architecture, the NMU supports both server-based (with server and client components) and standalone versions. This flexible design makes it suitable for network deployments of all scales, enabling network operators and enterprise users to build tailored network management solutions.
Product Specifications
Category
Parameter
Specification
System Interfaces
Optical Ports
3 x SFP
Electrical Ports
2 x RJ45
Serial Port
1 x Console
Network Management
Management Methods
NetRiver, Web, CLI
Environmental Requirements
Operating Temperature
-10°C to 70°C
Storage Temperature
-40°C to 80°C
Relative Humidity
5% to 95% (non-condensing)
Physical Specifications
Dimensions (W x H x D)
177 mm x 20 mm x 225 mm
Compliance & Safety
Standards
FCC, UL, CE, TUV, CSA
Power
Power Consumption
< 15W
Application: Coherent Optical Communication, Metropolitan Area Network (MAN), Telecom
Product Type: Subsystems
Media Type: Single-Mode Fiber (SMF)
