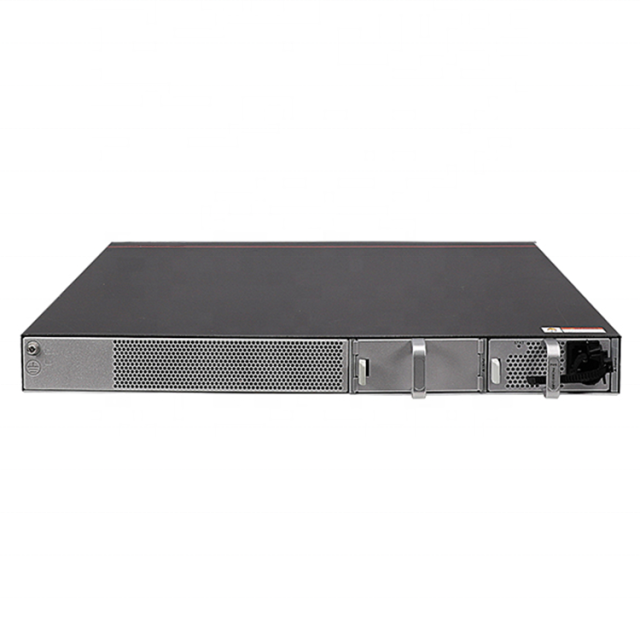

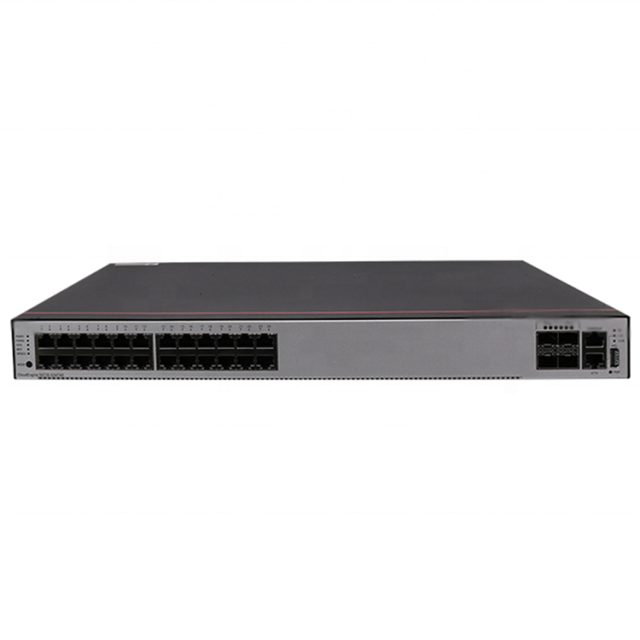

New S5735-S24T4X Switch | 24x Gigabit RJ45 Ports | 4x 10GbE SFP+ Uplinks | SNMP Managed

No.S5735-S24T4X

Technical Specifications

  • Fixed Ports:

    • 24 x 10/100/1000BASE-T Ethernet Ports

    • 4 x 10 Gigabit SFP+ Uplink Ports

  • Switch Capacity: 128 Gbps / 336 Gbps

  • Forwarding Performance: 96 Mpps

  • Transmission Rate: 10/100/1000Mbps

  • Communication Mode: Full-Duplex & Half-Duplex

  • Chassis Height: 1U

  • Color: Black (or customizable)


  • New S5735-S24T4X Switch | 24x Gigabit RJ45 Ports | 4x 10GbE SFP+ Uplinks | SNMP Managed
  • New S5735-S24T4X Switch | 24x Gigabit RJ45 Ports | 4x 10GbE SFP+ Uplinks | SNMP Managed
  • New S5735-S24T4X Switch | 24x Gigabit RJ45 Ports | 4x 10GbE SFP+ Uplinks | SNMP Managed
  • New S5735-S24T4X Switch | 24x Gigabit RJ45 Ports | 4x 10GbE SFP+ Uplinks | SNMP Managed
  • New S5735-S24T4X Switch | 24x Gigabit RJ45 Ports | 4x 10GbE SFP+ Uplinks | SNMP Managed
  • Description
  • Additional Information
  • Ordering & Payment Terms

Product Overview

The CloudEngine S5735-S24T4X is a next-generation, standard gigabit access switch designed for high-performance scenarios. It is ideal for enterprise campus network access/aggregation and data center access, offering advanced Layer 3 features, flexible networking, and simplified operations.

Key Features & Functions

  • IP Routing: Supports Static Route, RIP, RIPng, OSPF, OSPFv3

  • Layer 2 Features:

    • VLAN Support

    • Link Aggregation (LACP)

  • Manageability:

    • SNMP

    • Stackable

  • Platform: Built on a next-generation high-performance hardware platform with the Versatile Routing Platform (VRP) for easy Operations and Maintenance (O&M).

  • Networking: Provides flexible Ethernet networking and mature IPv6 capabilities.

    Product Code
    S5735-S24P4XE-V2
    Fixed ports
    24 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28
    Dimensions (W x D x H)
    442 mm x 420 mm x 43.6 mm
    Forwarding Performance
    132 Mpps
    Switching Capacity
    176 Gbps / 520 Gbps
    Chassis height(U)
    1u
    Input voltagel
    • AC Power
    - Rated AC voltage: 100V to 240V AC; 50/60 Hz
    - Max. AC voltage: 90V to 290V AC; 45–65 Hz
    • DC Power
    - Rated DC voltage: –48V~–60V
    - Max. DC voltage:-38.4V DC~-72V DC
    VLAN
     * 4094 VLANs
    * Voice VLAN
    * MUX VLAN
    * VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
    * Basic QinQ & Selective QinQ
    IP Routing
    Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP,

CloudEngine S5735-S Series Switches

The CloudEngine S5735-S series consists of standard gigabit access switches, designed to deliver high performance and flexibility for modern network infrastructures.

Key Specifications:

  • Downlink Ports: 24 to 48 flexible Gigabit Ethernet ports.

  • Uplink Ports: 4 fixed 10 Gigabit Ethernet ports.

Designed for a Variety of Scenarios:
These switches are ideally suited for:

  • Enterprise campus network access and aggregation layers.

  • Data center access layers.

Advanced Features and Capabilities:
Built on next-generation hardware and powered by the Versatile Routing Platform (VRP), the S5735-S series offers a robust set of enterprise-grade features:

  • Enhanced Layer 3 Functionality: Supports advanced routing protocols for efficient network segmentation and communication.

  • Simplified O&M: Provides streamlined tools for easier deployment, monitoring, and maintenance.

  • Flexible Ethernet Networking: Enables a variety of network topologies to meet diverse connectivity needs.

  • Mature IPv6 Support: Offers comprehensive and proven IPv6 capabilities for future-proof networking.

    CloudEngine S5735-S Series

    Product Model
    CloudEngine S5735-S24T4X
    CloudEngine S5735-S24P4X
    CloudEngine S5735-S32ST4X
    CloudEngine S5735-S48T4X
    CloudEngine S5735-S48P4X
    CloudEngine S5735-S48S4X
    Forwarding Performance
    96 Mpps
    96 Mpps
    96 Mpps
    78 Mpps
    132 Mpps
    132 Mpps
    Switching Capacity2
    128Gbps/336 Gbps
    128Gbps/336 Gbps
    144 Gbps/432 Gbps
    176 Gbps/432 Gbps
    176 Gbps/432 Gbps
    176 Gbps/432 Gbps
    Fixed Ports
    24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
    24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
    24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
    48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
    48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
    48 x GE SFP ports, 4 x 10 GE SFP+ ports
    PoE+
    Not supported
    supported
    Not supported
    Not supported
     supported
    Not supported
    MAC Features
    IEEE 802.1d compliance MAC address auto-learning and aging Static, dynamic, and black hole MAC address entries Packet filtering
    based on source MAC addresses
    VLAN Features

    4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
    1:1 and N:1 VLAN mapping
    IP Routing
    Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+
    Super Virtual Fabric (SVF)
    Plug-and-play SVF clients
    Automatic software package and patch loading to SVF clients
    One-click and automatic delivery of service configurations
    Independent SVF client operation
    Interoperability
    VBST (compatible with PVST/PVST+/RPVST)
    LNP (similar to DTP)
    VCMP (similar to VTP)

Ordering & Payment Terms:

  • Minimum Order Quantity (MOQ): Flexible for small orders
  • Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
  • Payment Method: T/T (Bank Transfer)
  • Payment Terms:
    30% advance payment, with 70% balance due prior to shipment for bulk orders
