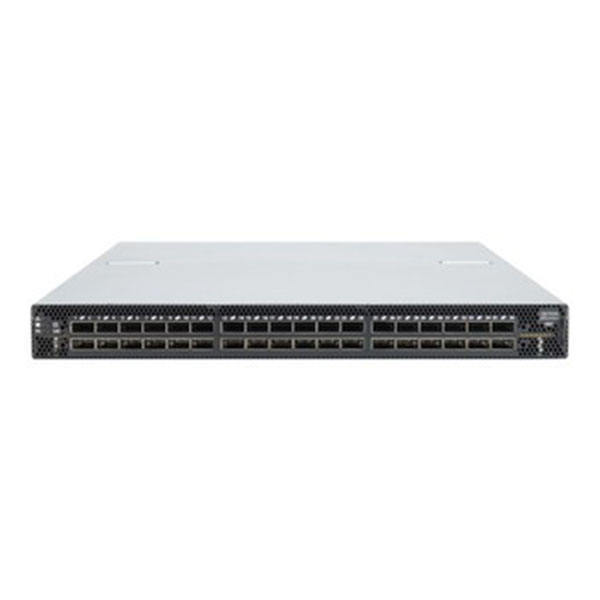

Product Name: InfiniBand Smart Switch
Brand & Model: Mellanox MSB7890-ES2F (OEM)
Color: Black
Form Factor: 1U Rackmount, Standard Depth
Ports: 36 x QSFP28
Switch Capacity: 7.2 Tb/s (Non-Blocking)
Throughput: 16 Tb/s
Data Rate per Port: 100 Gb/s (EDR InfiniBand)
Forwarding Rate: Approximately 10.7 Billion packets per second (pps)
Latency: 90 ns (port-to-port)
Communication Mode: Full-Duplex & Half-Duplex
Management: Unmanaged (requires external management)
Power Supply: 2 x AC (Redundant and Hot-Swappable)
The Mellanox MSB7890-ES2F is a high-performance, unmanaged 100Gb/s EDR InfiniBand switch. It is designed for high-performance computing (HPC) and data center environments, featuring the innovative SHARP technology for in-network computing acceleration. It offers industry-leading port density, ultra-low latency, and non-blocking bandwidth.
Intelligent Switching: Implements Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) for collective communication acceleration, offloading tasks from the CPU to the network.
High Performance: Offers one of the industry's highest fabric performance with a non-blocking bandwidth of 7.2 Tb/s and an ultra-low latency of 90ns.
VL2VL Mapping: Supports Virtual Lane to Virtual Lane mapping for advanced traffic management.
Congestion Management: Designed to maximize performance by eliminating fabric congestion.
Energy Efficient: Engineered for energy conservation and cost savings.
Backward Compatibility: Backward compatible with previous generation FDR (Roosevelt) InfiniBand technology.
Included Accessories: Comes with a P2C Air Rail Kit for easy installation.
