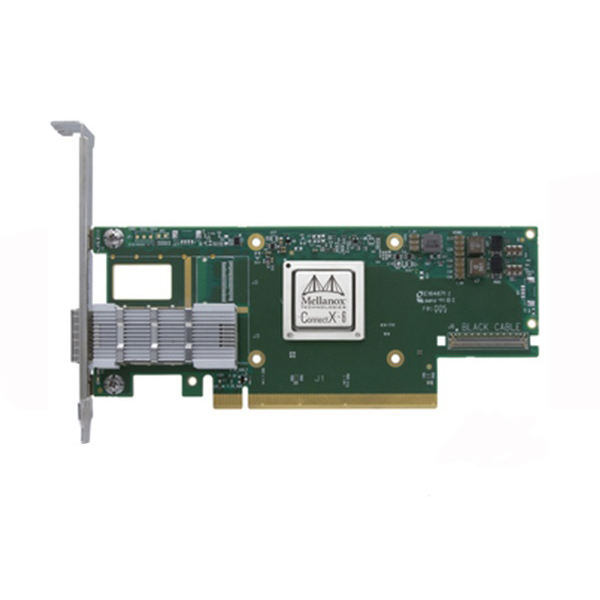

Mellanox ConnectX-6 VPI MCX653105A-HDAT Network Interface Card - Single-Port 200GbE QSFP56, PCIe 4.0 x16, with Tall Bracket

Product Overview

• Brand Name: Mellanox

• Product Name / Model Number: MCX653105A-HDAT-SP (Mellanox ConnectX-6 VPI Adapter Card)

• Application: Desktop

• Place of Origin: Beijing, China

• Interface Type: PCI Express (PCIe Gen3 and PCIe Gen4 support)

• Wired Connection: Yes

• Number of Ports: 1

• Package Options: Bulk and Retail

• Status: In Stock

  Key Specifications

  • Transmission Rate: 200GbE / 100GbE / 50GbE / 40GbE / 25GbE / 10GbE / 1GbE, HDR

  • Max Bandwidth: 200 Gb/s per port

  • Message Rate: Up to 215 million messages/second

  • Latency: Sub 0.6 microseconds

  • Supported Encoding: 50G SerDes (PAM4) and 25G SerDes (NRZ)

  Key Features

  • High Performance: Industry-leading throughput with very low CPU utilization and ultra-low latency.

  • Flexible Connectivity: A single port supports a wide range of Ethernet speeds, from 1GbE to 200GbE.

  • Advanced Security: Features block-level XTS-AES mode hardware encryption and is FIPS capable.

  • Storage Optimized: Includes advanced storage capabilities like block-level encryption and checksum offloads.

  • Precision Timing: Best-in-class packet pacing with nanosecond accuracy.

  • Programmable Pipeline: Offers a flexible, programmable pipeline for customizing new network flows.

  • Broad Platform Support: Smart interconnect for x86, Power, Arm, GPU, and FPGA-based compute and storage platforms.



    Primary Benefits

    • Delivers the highest performance for compute and storage infrastructures.

    • Provides cutting-edge performance in virtualized networks, including Network Function Virtualization (NFV).

    • Enables efficient service chaining and I/O consolidation, reducing data center costs and complexity.

    • Supports Mellanox Host Chaining technology for economical rack design.

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders

BANK INFORMATION

Bank Name: DBS BANK (HONG KONG) LIMITED
Account Name: Shenzhen VAN Electronics Co., Ltd.
Account No.: 798 291 1671
Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong
Swift Code: DHBKHKHH

Contact for Quotation:
Kindly email your requirements to sales@szvan.com for a customized quotation and optimal solution.
Attn: Jessica Lee
