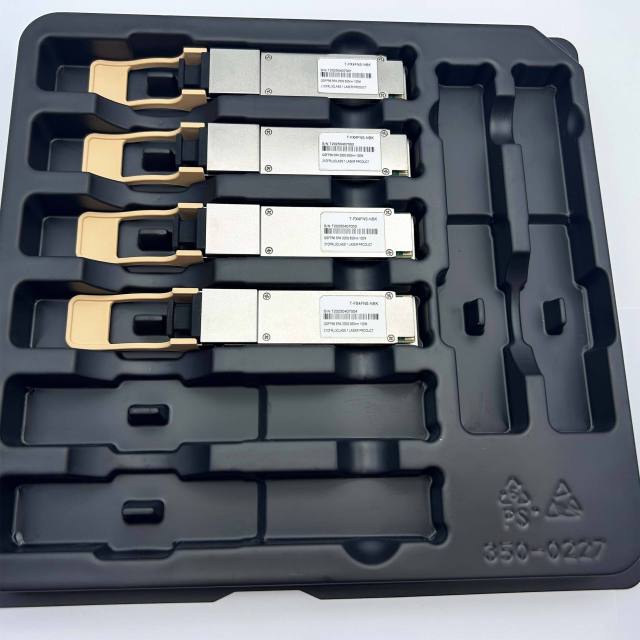

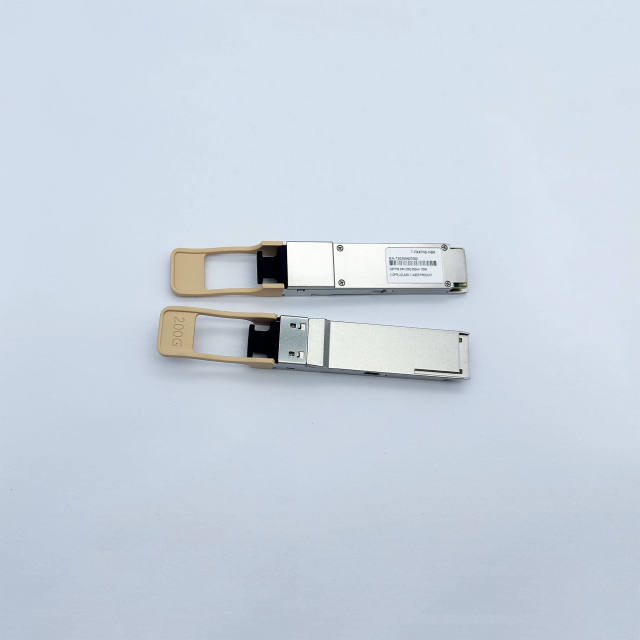

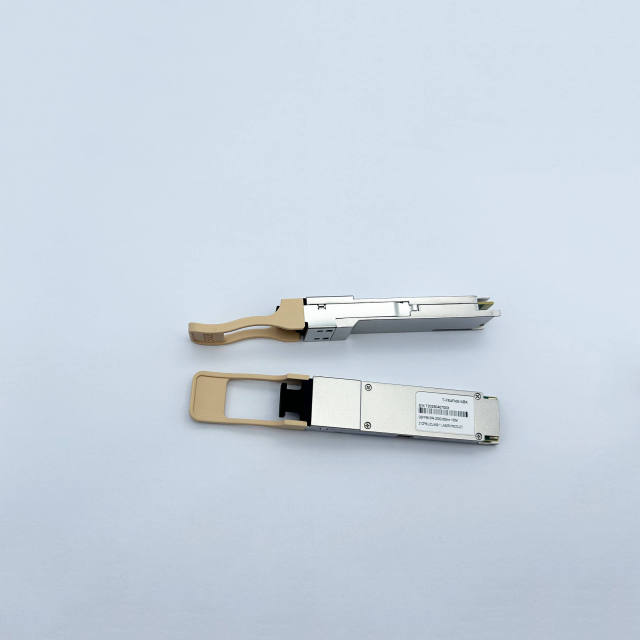

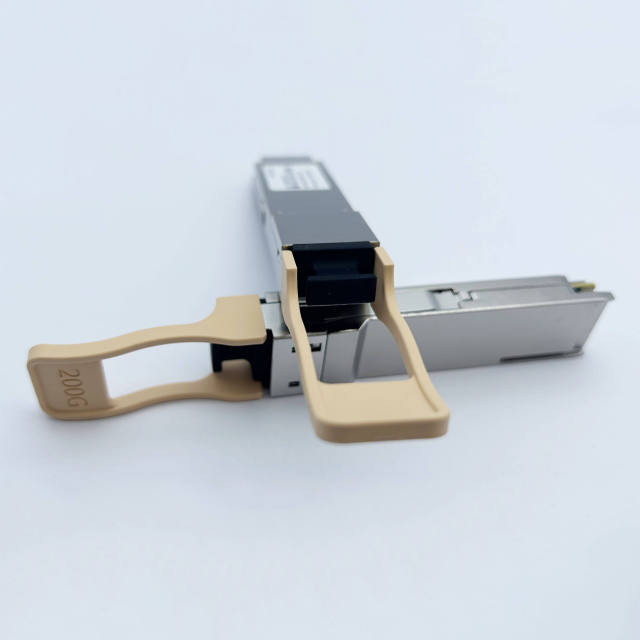

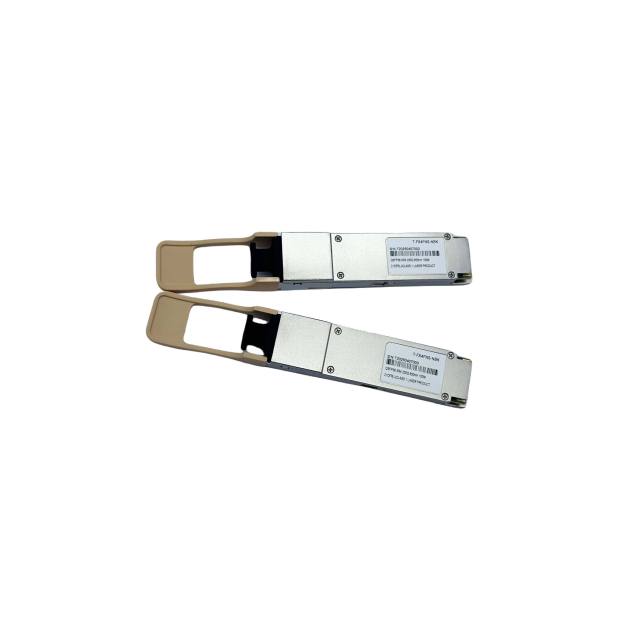

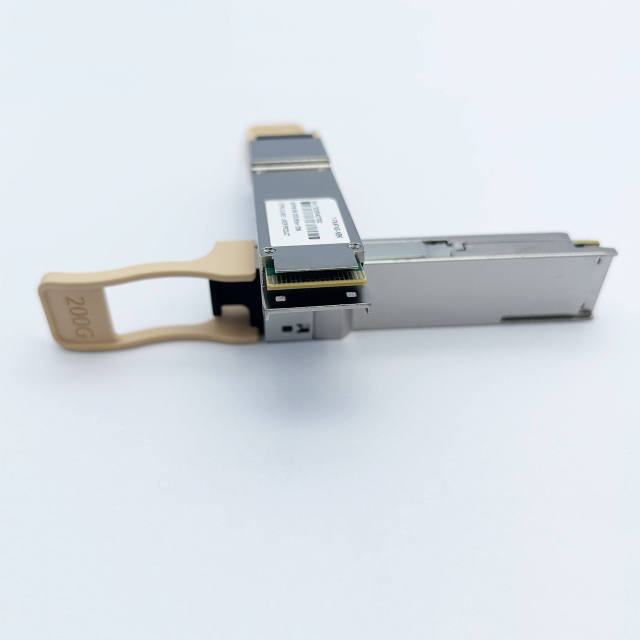

Innolight T-FX4FNS-NBK 200G QSFP56 SR4 Optical Transceiver, 850nm 100m

Innolight T-FX4FNS-NBK 200G QSFP56 SR4 Optical Transceiver

The Innolight T-FX4FNS-NBK is a QSFP56, multi-mode optical transceiver designed for high-speed data center interconnects. It supports a data rate of 200Gbps over 100m of OM3 fiber using 4 parallel 53.125Gbps PAM4 channels.

Applications

• 200G Ethernet switches and routers

• Data Center Interconnects (DCI)

• Infiniband high-performance computing networks

• Enterprise Networking core and spine layers



  Detailed Specifications

  Parameter	Specification
  Product Model	T-FX4FNS-NBK
  Form Factor	QSFP56
  Protocol	IEEE 802.3bs 200GBASE-SR4
  Data Rate (Aggregate)	200 Gbps
  Number of Lanes	4
  Data Rate per Lane	53.125 Gbps (PAM4)
  Wavelength	850nm
  Max Fiber Distance	100m (OM3 MMF)
  Connector	MPO-12 APC
  Electrical Interface	200GAUI-4
  Power Consumption	< 5W
  Operating Temperature	0°C to 70°C
  Compliance	QSFP56 MSA, IEEE 802.3bs, RoHS

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders
