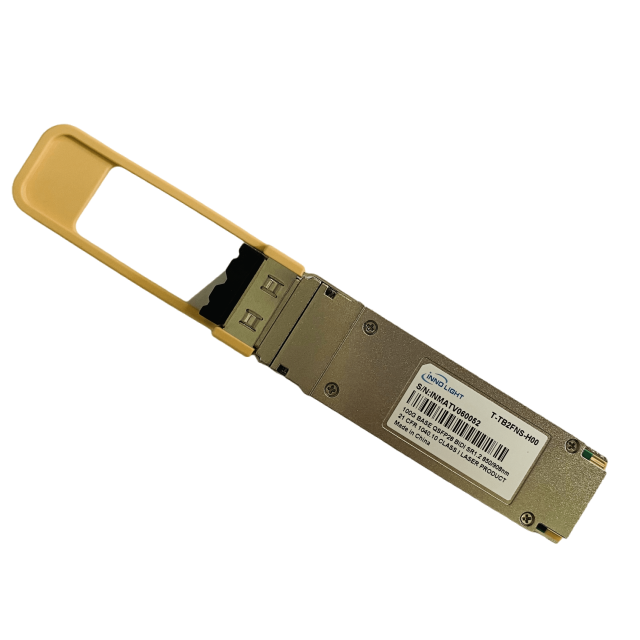

Innolight 100GBASE-BIDI QSFP28 Transceiver, 100m over MMF, LC Duplex

Product Overview: 100G QSFP28 BIDI SR1.2 Optical Transceiver

• Part Number: T-TB2FNS-H00

• Brand: 100% Original Innolight

• Description: 100G QSFP28 BIDI SR 1.2, 850nm/908nm, 100m over MMF, Dual LC Duplex

• Application Standard: 100GBASE-BIDI

• Condition: Both new and used units are available.

• Stock Status: Large quantity available in warehouse.

Key Features & Specifications

This 100G QSFP28 BIDI SR1.2 optical transceiver is a high-performance, hot-pluggable module designed for short-reach, high-speed data connections.

• High Data Rate: Supports a data rate of 100 Gigabits per second (100G), providing high-bandwidth connectivity for demanding applications.

• Form Factor: Compliant with the QSFP28 (Quad Small Form-factor Pluggable 28) standard, enabling high port density and easy integration into network switches and routers.

• Bidirectional (BIDI) Technology: Utilizes two wavelengths (850nm Tx / 908nm Rx or vice versa) over a single strand of fiber, allowing for efficient use of fiber infrastructure.

• Transmission Distance:

  • Up to 100 meters over OM3 multi-mode fiber (MMF).

  • Up to 150 meters over OM4 multi-mode fiber (MMF).

• Connector: Standard Dual LC Duplex connector for reliable multi-mode fiber optic connections.

• Diagnostic Capabilities: Features Digital Diagnostics Monitoring (DDM) for real-time access to operating parameters such as temperature, supply voltage, and received optical power, facilitating network management and troubleshooting.

• Compatibility: Designed to be compatible with networking equipment that supports the QSFP28 form factor and the 100GBASE-BIDI standard. Please verify compatibility with your specific device.

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders

BANK INFORMATION

Bank Name: DBS BANK (HONG KONG) LIMITED
Account Name: Shenzhen VAN Electronics Co., Ltd.
Account No.: 798 291 1671
Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong
Swift Code: DHBKHKHH

Contact for Quotation:
Kindly email your requirements to sales@szvan.com for a customized quotation and optimal solution.
Attn: Jessica Lee
