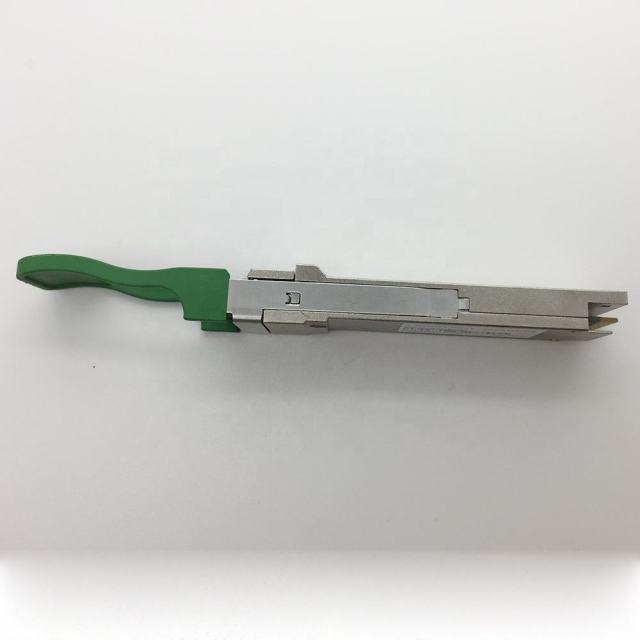

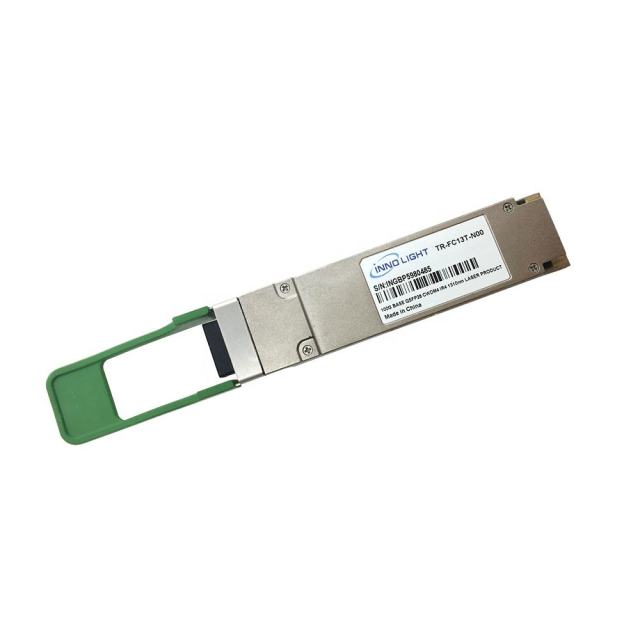

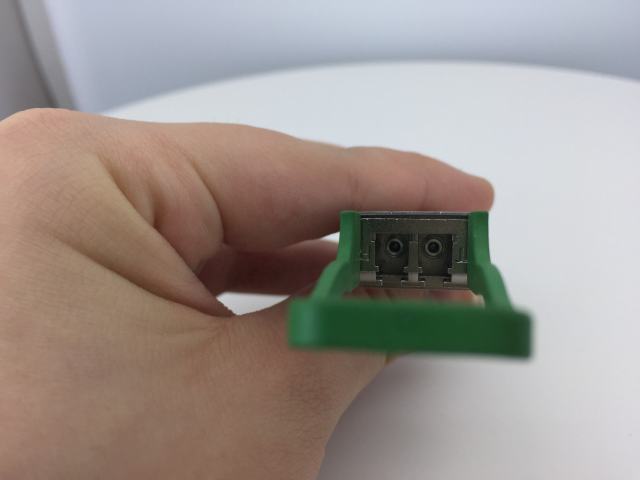

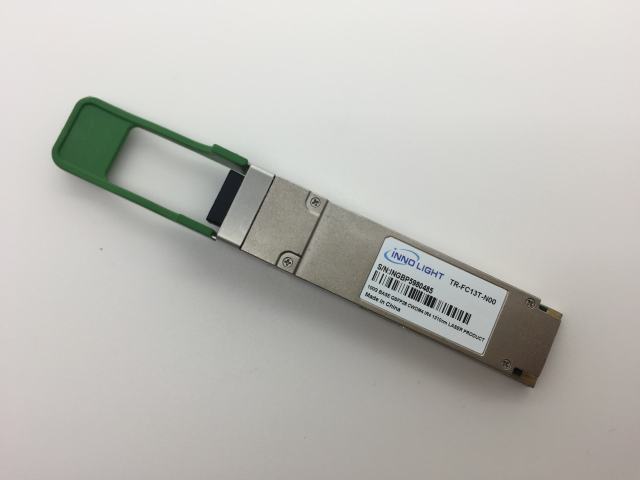

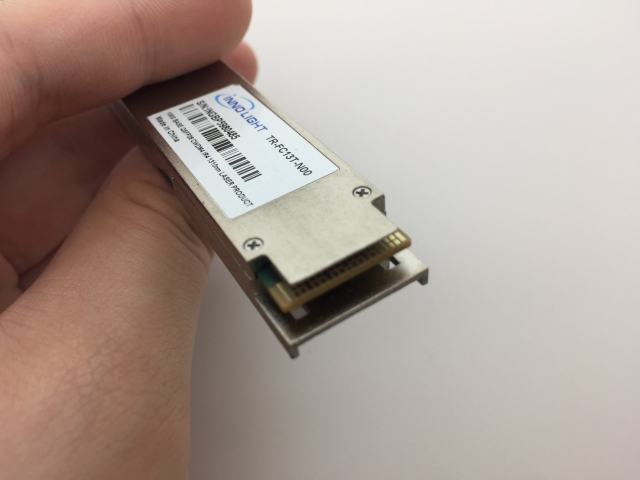

Innolight 100G QSFP28 CWDM4 Transceiver, 2km, over SMF

Innolight 100G QSFP28 CWDM4 Optical Transceiver Module

Part Number: TR-FC13T-N00

Overview
This QSFP28 transceiver module is designed for high-performance 100G Ethernet interconnects in data centers. Compliant with the CWDM4 MSA standard, it enables 100G data transmission over up to 2km of single-mode fiber (SMF) using a duplex LC connection. It is ideal for Top-of-Rack (TOR), spine, and leaf switch interconnections.

Key Specifications

Applications

• 100G Ethernet Data Center Interconnects (TOR, Spine, Leaf)

• 100G Switches and Routers

• High-Performance Computing (HPC) Networks

Compatibility
Designed for broad compatibility with major networking brands, including Juniper, Arista, Mikrotik, Broadcom, Dell, and Netgear.

Detailed Description

This transceiver converts four input channels of 25 Gb/s electrical data into four CWDM optical signals. These signals are multiplexed into a single single-mode fiber for 100G transmission. On the receiver end, it performs the reverse process, de-multiplexing the incoming 100G signal back into four separate electrical output channels.

The module features a 38-pin electrical interface for host communication and is built to withstand demanding operating conditions, including temperature, humidity, and EMI.
