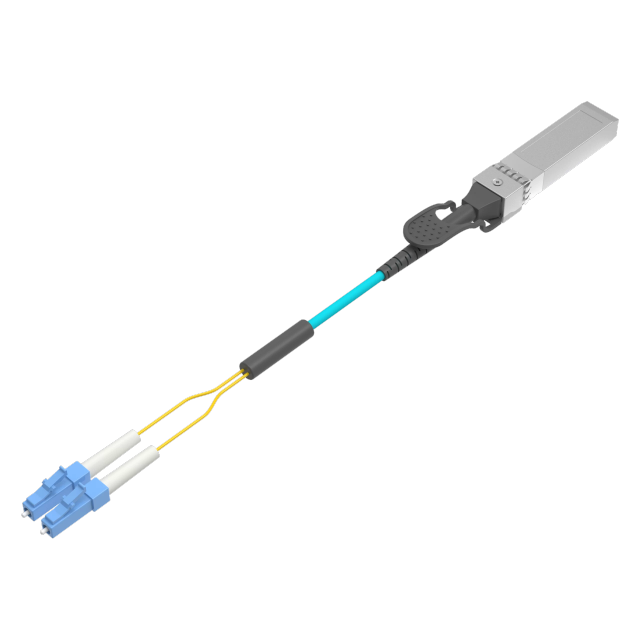

Immersion-cooled pluggable optical modules, supporting rates from 10G to 800G, for liquid-cooled data centers and 5G fronthaul networks.
Optical Transceiver Product Table
Product Name
Data Rate
Wavelength
Reach
Connector
Power Consumption (W)
Datasheet / Model Code
10G SFP+ SR
10 Gbps
850 nm
300m (OM3) 400m (OM4)
LC/FC Pigtail
0.8 W
VAN-S100-SR-L/F
10G SFP+ LR
10 Gbps
1310 nm
10 km
LC/FC Pigtail
0.8 W
VAN-S100-LR-L/F
25G SFP28 SR
25 Gbps
850 nm
70m (OM3) 100m (OM4)
LC/FC Pigtail
1.0 W
VAN-S250SR-XXX
25G SFP28 LR
25 Gbps
1310 nm
10 km
LC/FC Pigtail
1.5 W
VAN-S250LR-XXX
40G QSFP+ SR4
40 Gbps
850 nm
70m (OM3) 100m (OM4)
MPO-12
1.5 W
VAN-Q400-SR4-M
100G QSFP28 SR4
100 Gbps
850 nm
70m (OM3) 100m (OM4)
MPO-12
2.0 W
VAN-Q101SR4-M(D)xx
100G QSFP28 PSM4
100 Gbps
1310 nm
2km / 10km
MPO-12
4.5 W
VAN-P101LR4-Mxx
100G QSFP28 DR1
100 Gbps
1310 nm
500 m
Duplex LC
4.0 W
VAN-Q101DR1-LXXA
200G QSFP56 SR4
200 Gbps
850 nm
70m (OM3) 100m (OM4)
MPO-12
5.0 W
VAN-Q201SR4-M(D)xx
400G OSFP-RHS SR4
425 Gbps
850 nm
60m (OM3) 100m (OM4)
MPO-12
8.0 W
VAN-H401SR4-MXXA
400G QSFP112 SR4
425 Gbps
850 nm
60m (OM3) 100m (OM4)
MPO-12
8.0 W
VAN-Q401SR4-MXXA
800G QSFP-DD SR8
850 Gbps
850 nm
100 m
MPO-16 / 2xMPO-12
13.5 W
VAN-D801-SR8-M
800G OSFP112 SR8
850 Gbps
850 nm
60m (OM3) 100m (OM4)
MPO-16 / 2xMPO-12
13.5 W
VAN-O801SR8-MXXA
800G OSFP112 DR8
850 Gbps
1310 nm
500 m
2xMPO-12
15.0 W
VAN-O801DR8-LXXXA
