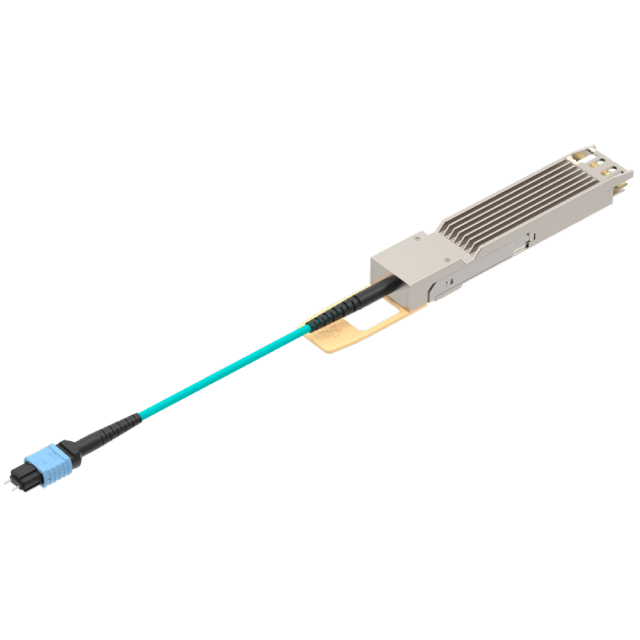

Immersion-Cooled 800G OSFP SR8 Optical Module 850nm Wavelength 100m Reach

The 800G OSFP SR8 immersible cooling transceiver module is designed for high-speed, short-reach 800GbE interconnects within immersion-cooled data center environments. It complies with the 800GBASE-SR8 standard and utilizes 100G PAM4 per lane technology alongside VCSEL-based optics. When operating with Forward Error Correction (FEC), the module facilitates robust 800 Gbps data transmission over a distance of up to 100 meters on 8 pairs of OM4/OM5 multimode fiber.

800G OSFP SR8 Immersible Optical Transceiver

• Application: Designed for 800GBASE-SR8 Ethernet links in immersive liquid cooling data centers.

• Technology: Employs 100G PAM4 modulation and VCSEL technology for high performance.

• Performance: Supports 800 Gbps data rate with FEC enabled.

• Reach: Achieves links of up to 100 meters.

• Media: Uses 8 pairs (16 fibers) of standard multimode fiber (MMF).



  Application	Data Center
  Data Rate	800G
  Form Factor	OSFP
  Interface	MPO/MTP Pigtail
  Product Type	Immersion Liquid Cooling Optics
  Media Type	MMF
  Wavelength	850nm
  Reach	＜500m
  Protocol	Ethernet
