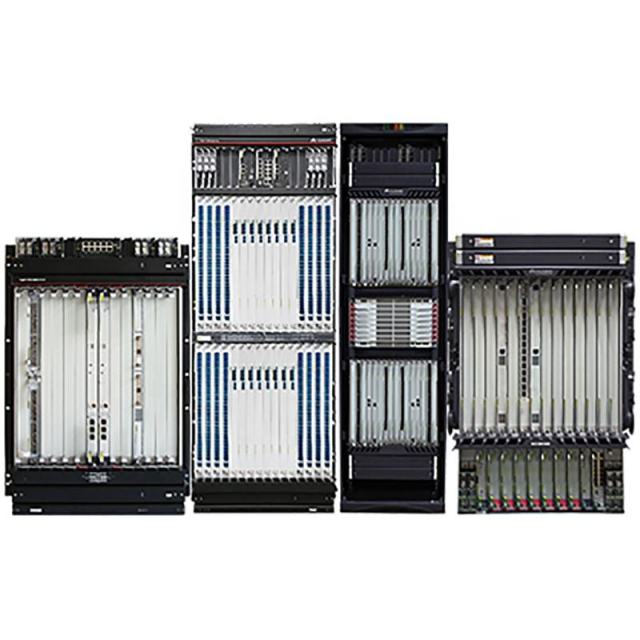

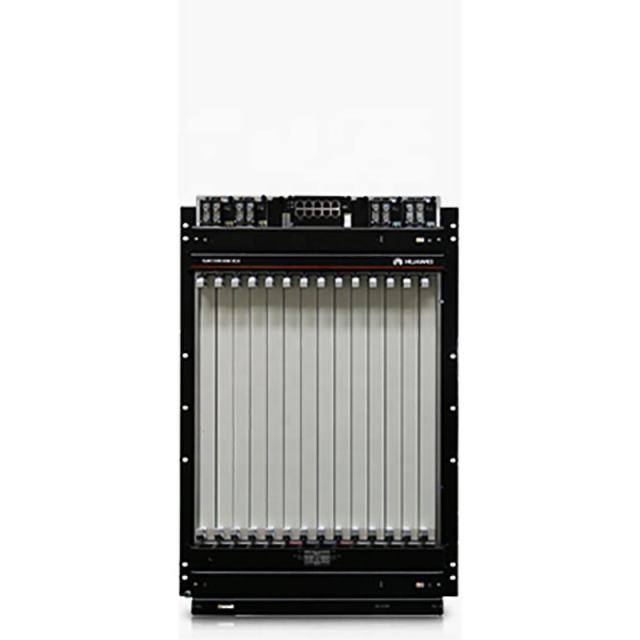

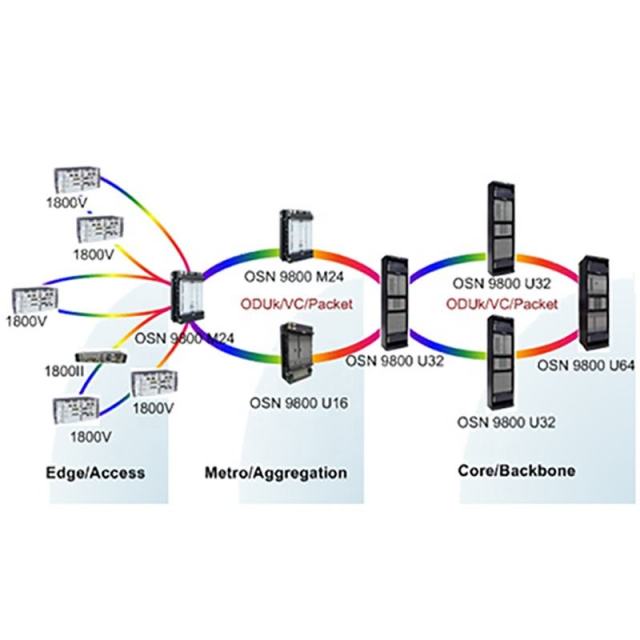

Huawei's OptiX OSN 9800 optical transport networking system

Optical Performance

• Wavelength System:

  • Fixed Grid: 96 wavelengths @ 50 GHz grid

  • Flex Grid: Maximum number of wavelengths depends on the flex channel width.

• Wavelength Range: 1529.16 nm - 1567.13 nm (Extended C-band, ITU-T G.694.1)

• Maximum Rate per Channel: 400G bit/s (OTUC4)

• Line Rates Supported: 10G, 100G, 200G, 400G

Service Support

• Supported Services: Synchronous Digital Hierarchy (SDH) / SONET, Ethernet, Storage Area Network (SAN), OTN, Video.

• Packet Service Capacity:

  • Support for E-Line/E-LAN (MEF) and VPWS/VPLS (IETF)

  • Support for MPLS-TP

  • Number of MPLS Tunnels: 65,536

  • Number of PWs: 65,536

  • Number of E-Line: 32,768

  • Number of E-LAN: 8,192

Hardware & Power

• Supported Pluggable Optical Modules: eSFP, SFP+, TSFP+, CFP, CFP2, QSFP28

• Power Supply:

  • Nominal Voltage: -48V DC / -60V DC

  • Operating Voltage Range:

    • -48V DC: -40V to -57.6V

    • -60V DC: -48V to -72V



      Model Number	OptiX OSN 9800
      Type	ONU
      Use	Optical transport network
      Warranty Time	3 YEARS
      Subrack dimensions (mm)	747.2 mm (H) x 442 mm (W) x 295 mm (D)
      Suitable cabineta	* ETSI 300/600 cabinets, such as A63B * 19-inch cabinet
      Number of slots for service boards	1:1 cross-connect mode: 12 large slots or 24 small slots 1:3 cross-connect mode: 10 large slots or 20 small slots
      Switching capability Electrical	* 1:1 cross-connect mode: * 4.8 Tbit/s ODUk2.4 Tbit/s packet services1.92 Tbit/s VC-480 Gbit/s VC-3/VC-12 * 1:3 cross-connect mode: * 10 Tbit/s ODUk2 Tbit/s packet services1.6 Tbit/s VC-480 Gbit/s VC-3/VC-12
      Max. number of wavelengths	* Fixed grid: 96 wavelengths @50 GHz grid * Flex grid: The maximum number of wavelengths is related to the width of the flex channel.
      Wavelength range	1529.16 nm-1567.13 nm (extended C-band, ITU-T G.694.1)
      Max. rate per channel	400G bit/s (OTUC4)
      Service type	Synchronous digital hierarchy (SDH)/synchronous optical network (SONET), Ethernet, SAN, OTN, video
      Packet service capacity	* Support E-Line/E-LAN (MEF) and VPWS/VPLS (IETF) * Support MPLS-TP * Number of MPLS tunnel: 64x1024 * Number of PW: 64x1024 * Number of E-Line: 32x1024 * Number of E-LAN: 8x1024
      Line rate	10Gbit/s, 100 Gbit/s, 200G bit/s, 400G bit/s
      Supported pluggable optical modules	eSFP, SFP+, TSFP+, CFP, CFP2, QSFP28
      Power Supply	* Nominal working voltage: -48V DC/-60V DC * Working voltage range: * -48 V DC: -40 V to -57.6 V-60 V DC: -48 V to -72 V
