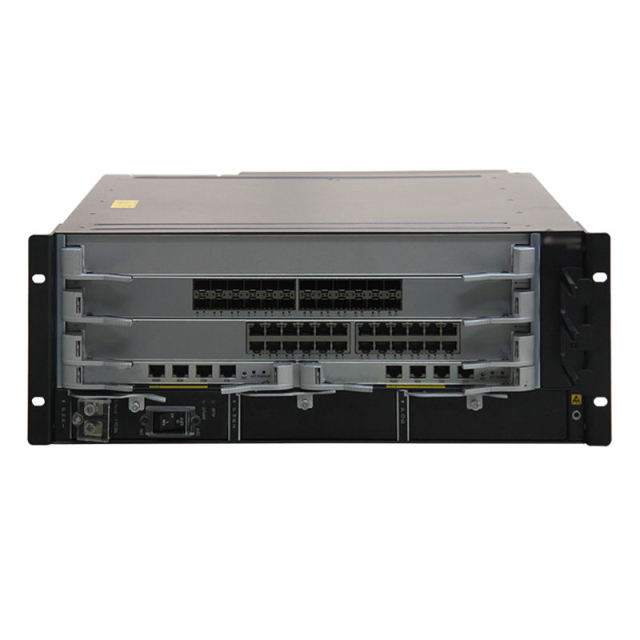

Huawei S7700 Series S7703 Modular Chassis - Pre-Integrated Solution

Product Overview

The S7703 is a high-performance, scalable switch chassis designed for enterprise core and aggregation layers. It features advanced service optimization, unified user management, and superb reliability, supporting high-speed 100 GE connectivity.

Detailed Specifications

• Product Name: ES0Z1B03ACS0 S7703 Switch Chassis

• Switch Capacity: 1.92 Tbps

• Forwarding Performance: 1440 Mpps

• Ports: 24

• Transmission Rate: 10/100/1000Mbps

• Communication Mode: Full-Duplex & Half-Duplex



  CloudEngine S6730-H Series 10 GE Switches


  Item	S7703	S7703 PoE	S7706/S7706 PoE	S7712
  Switching capacity	1.92 Tbps	4.8 Tbps	4.32 Tbps	4.64Tbps
  Forwarding performance	1440 Mpps	3600 Mpps	3240 Mpps	3480 Mpps
  Wireless Network Management	Native AC AP access control, AP region management, and AP profile management Radio profile management, uniform static configuration, and centralized dynamic management Basic WLAN services, QoS, security, and user management Deployment of ACs on different network layers
  User Management	Unified user management 802.1x, MAC address, and Portal authentication Traffic-based and time-based accounting User authorization based on user groups, domains, and time ranges
  Routing	IPv4 static routes, RIP, OSPF, IS-IS, and BGP4 IPv6 static routes, RIPng, OSPFv3, IS-ISv6, and BGP4+ IPv4/IPv6 equal-cost routes, policy routing, and route policy IPv4 and IPv6 stack Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, and ICMPv6 IPv4-to-IPv6 transition technologies, such as IPv6 manual tunnel, 6 to 4 tunnel, ISATAP tunnel, GRE tunnel, and IPv4-compatible automatic tunnel
  iPCA	Adds marks on service packets in order to measure the number of lost packets and packet loss ratios in real time with zero payload Measures the number of lost packets and packet loss ratios at the network and device levels on Layer 2 and Layer 3 networks
  SVF	Up to 256 clients (access switches) and 4,096 APs virtualized into a single device 2-level AS structure Unified management on Huawei and non-Huawei devices
  Buffer Capacity	Up to 200 ms per port
  Interoperability	VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP)
