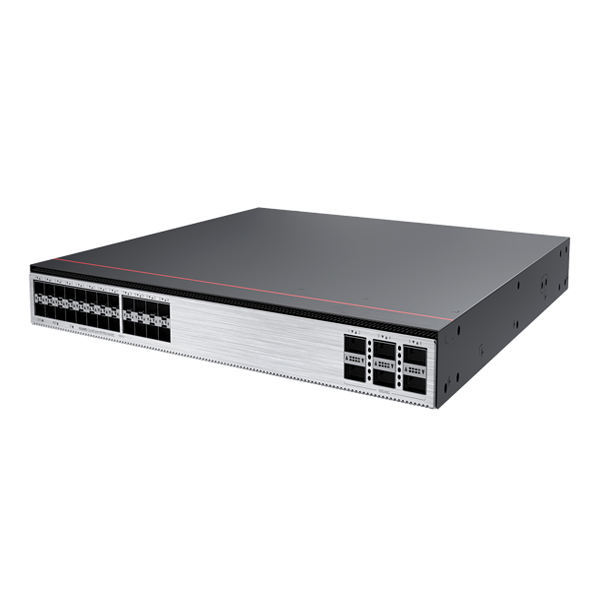

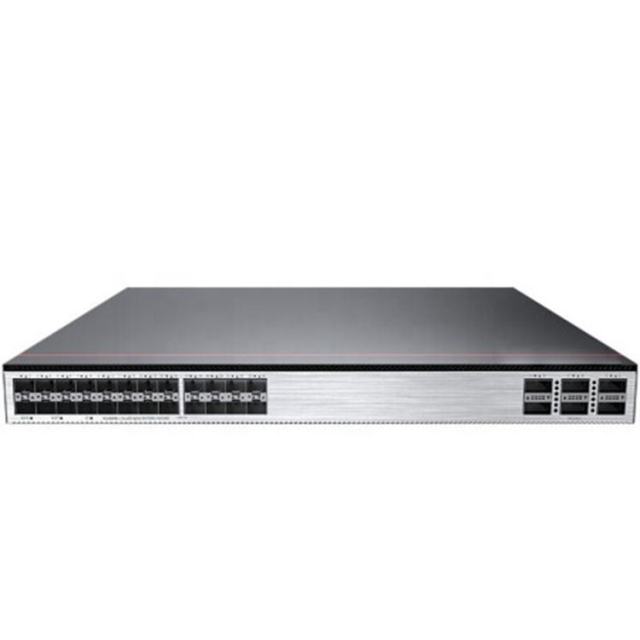

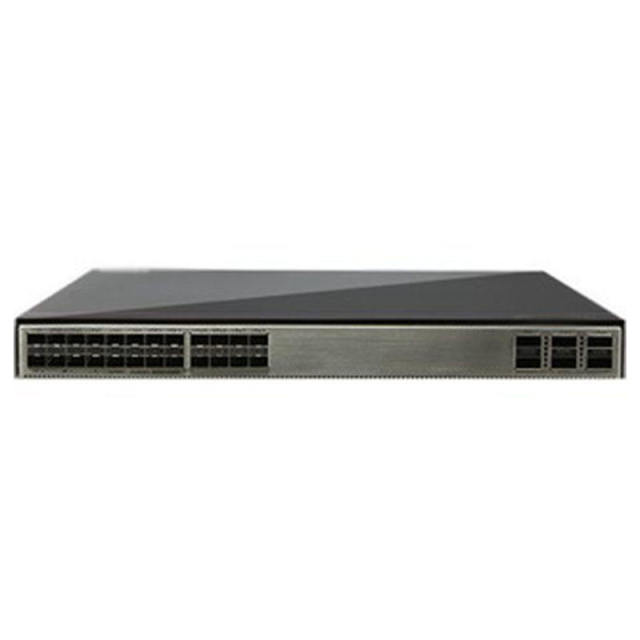

Huawei S6730-H24X6C-A 24-Port 10GE SFP+ Access Switch

Product Overview: CloudEngine S6730-H Series Switches (Model: S6730S-H24X6C-A)

The CloudEngine S6730-H Series are high-performance 10 Gigabit Ethernet switches designed for enterprise campuses, carriers, higher education, and government networks. They are engineered to provide a simplified, secure, and scalable foundation for converged wired and wireless networks.

Port Configuration:

• Fixed Ports: 24 x 10 Gigabit SFP+

• Uplink Ports: 6 x 40/100 Gigabit QSFP28

Physical Specifications:

• Dimensions (W x D x H): 442 mm x 420 mm x 43.6 mm

• Chassis Height: 1U

Power Consumption:

• Minimum: 97W

• Maximum: 231W

General Technical Specifications:

• Transmission Rate: 10/100/1000Mbps (for management/compatible interfaces)

• Switch Capacity: 2.4 Tbps

• Communication Mode: Full-Duplex & Half-Duplex

• Key Functions: LACP, Stackable, VLAN Support

Huawei CloudEngine S6730-H48X6C Datasheet Highlights

• Port Configuration:

  • 48 x 10 Gigabit Ethernet SFP+

  • 6 x 40/100 Gigabit Ethernet QSFP28

• Power Supply: 1+1 Redundant Power Supply Backup

• Forwarding Performance: 1,200 Mpps

• Switching Capacity: 1.62 Tbps / 2.4 Tbps



  Product Model	CloudEngine S6730-H48X6C	CloudEngine S6730-H24X6C	CloudEngine S6730-H24X4Y4C
  Switching Capacity2	2.16/2.4 Tbit/s	1.68/2.4 Tbit/s	1.48Tbps/2.4Tbps
  Fixed Ports	48 x 10 GE SFP+, 6 x 40/100 GE QSFP28	24 x 10 GE SFP+, 6 x 40/100 GE downlink QSFP28	24 x 10 Gig SFP+, 4 x 25 Gig SFP28, 4 x 100 Gig QSFP28
  Wireless Services	Management of up to 1024 APs AP access control, AP domain management, and AP configuration template management Radio channel management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis
  iPCA	Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device levels
  Super Virtual Fabric (SVF)	Functions as the parent node to virtualize downstream switches and APs vertically as one device for simpler management Supports a two-layer client architecture Supports third-party devices between SVF parent and clients
  VXLAN	VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol
  Interoperability	VBST (compatible with PVST, PVST+, and RPVST) LNP (similar to DTP) VCMP (similar to VTP)

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders

BANK INFORMATION

Bank Name: DBS BANK (HONG KONG) LIMITED
Account Name: Shenzhen VAN Electronics Co., Ltd.
Account No.: 798 291 1671
Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong
Swift Code: DHBKHKHH

Contact for Quotation:
Kindly email your requirements to sales@szvan.com for a customized quotation and optimal solution.
Attn: Jessica Lee
