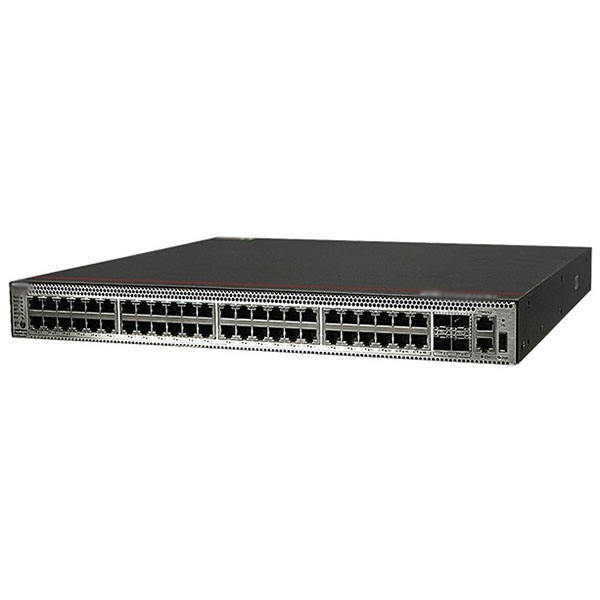

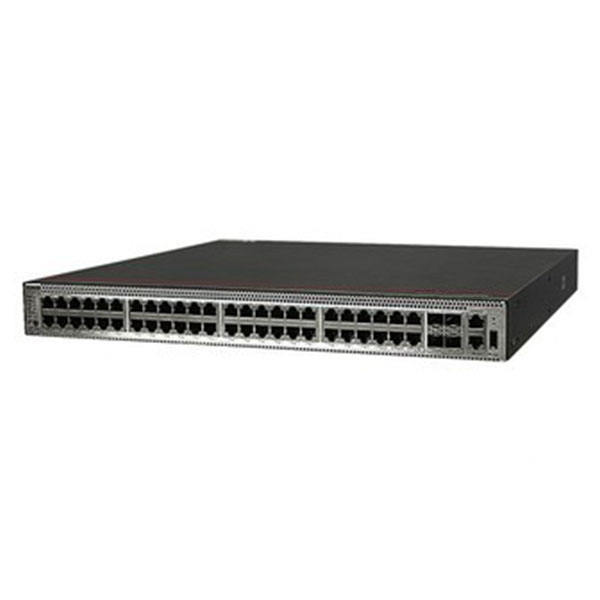

Huawei S5731-S48T4X Enterprise Switch: 48x 1G Copper + 4x 10G SFP+

No.S5731-S48T4X

Port Configuration

Fixed Ports:
- 48 x 10/100/1000Base-T Ethernet Ports
- 4 x 10 Gigabit SFP+ Uplink Ports
PoE/PoE+: Not Supported

Performance

Switch Capacity: 672 Gbps / 6.72 Tbps
Forwarding Performance: 125 Mpps
Transmission Rate: 10/100/1000 Mbps
Communication Mode: Full-Duplex & Half-Duplex

Get The Latest Quote

Add to Quote List Browse the list

Description
Additional Information
Ordering & Payment Terms

CloudEngine S5731-S48T4X 48-Port Network Switch

Product Overview
The CloudEngine S5731-S48T4X is a standard gigabit access switch from the CloudEngine S5731-S series. It is designed for high-performance network access and aggregation in enterprise campuses and data centers. Built on the unified Versatile Routing Platform (VRP), it offers advanced Layer 3 features, simplified operations, and flexible networking capabilities.

Features & Functionality

Key Functions:
- Link Aggregation Control Protocol (LACP)
- Intelligent Stack (iStack) - Stackable
- VLAN Support
- SNMP Management
- Mature IPv6 Support
- Enhanced Layer 3 Routing

Physical Specifications

Chassis Height: 1U
Dimensions (W x D x H): 43.6 mm x 442 mm x 420 mm
Chassis Weight: 8.55 kg

Huawei CloudEngine S5731-S48T4X Gigabit Enterprise Switch: 48-Port 10/100/1000BASE-T and 4-Port 10G SFP+, for Data Center and Campus Networks

CloudEngine S5731-S Series

Product Model	CloudEngine S5731-S24T4X	CloudEngine S5731-S48T4X	CloudEngine S5731-S24P4X	CloudEngine S5731-S48P4X
Forwarding Performance	96 mpps	125 mpps	96 mpps	125 mpps
Switching Capacity2	128/672 Gbit/s	176/672 Gbit/s	128/672 Gbit/s	176/672 Gbit/s
Fixed Ports	24 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+	48 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+	24 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+	48 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+
PoE+	Not supported	Not supported	supported	supported
MAC Features	64,000 MAC entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN Features	4094 VLANs Guest VLAN, voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping
SVF	Plug-and-play SVF client Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client operations
VXLAN	VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol
Interoperability	VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) For detailed interoperability certifications and test reports
