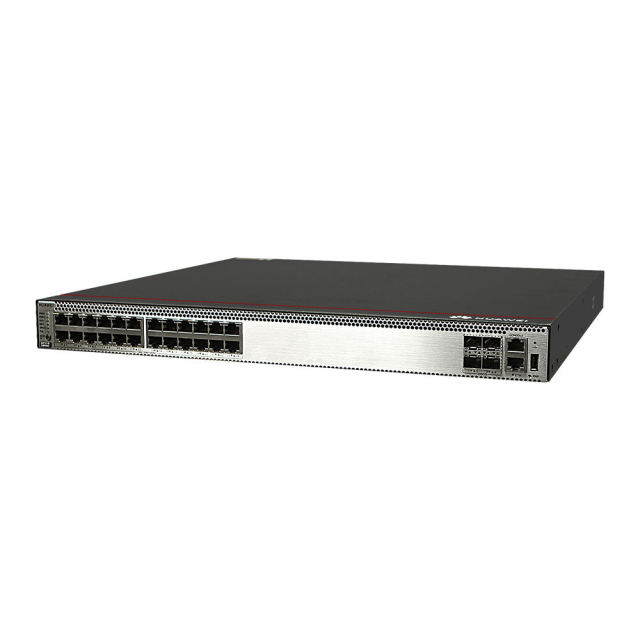

Huawei S5731-H24T4XC Enterprise Switch, 24 x 1GbE PoE+ Ports & 4 x Uplink Ports

No.S5731-H24T4XC

Key Features & Functions

Deployment: Ideal for aggregation/access layers in large campuses, core layer in branches, and access layer in data centers.
Converged Networking: Integrated native WLAN AC controller supports up to 1024 wireless access points (APs).
Advanced Capabilities:
- VXLAN-based Network Virtualization
- Free Mobility for consistent user experience
Security: Built-in security probes for:
- Abnormal Traffic Detection
- Encrypted Communications Analytics (ECA)
- Network-wide Threat Deception
Networking Functions:
- Stackable
- VLAN Support
- Link Aggregation Control Protocol (LACP)

Get The Latest Quote

Add to Quote List Browse the list

Description
Additional Information
Ordering & Payment Terms

Product Description

The CloudEngine S5731-H series are enhanced gigabit access switches featuring all-Gigabit downlink ports and fixed 10 Gigabit uplink ports. They are designed to converge wired and wireless networks, simplifying operations and delivering a powerful, secure, and scalable networking solution for modern enterprise environments.

Physical Specifications

Dimensions (W x D x H): 43.6 x 442 x 420 mm
Chassis Height: 1U
Weight: 8.4 kg
Color: Black (or custom options available)

Technical Specifications

Switch Capacity: 288 Gbps / 672 Gbps
Fixed Ports:
- 24 x 10/100/1000Base-T Ethernet Ports
- 4 x 10 Gig SFP+ Uplink Ports
Power over Ethernet (PoE+): Not Supported

Huawei S5731-H24T4XC Enterprise Gigabit PoE+ Switch with 24 auto-negotiating 10/100/1000BASE-T ports and 4 additional uplink ports.

CloudEngine S5731-H Series

Product Model	CloudEngine S5731-H24T4XC	CloudEngine S5731-S48T4X	CloudEngine S5731-H48T4XC	CloudEngine S5731-H48P4XC	CloudEngine S5731-H48T4XC-B
Switching Capacity2	288 Gbps/672 Gbps	288 Gbps/672 Gbps	336 Gbps/672 Gbps	336 Gbps/672 Gbps	176 Gbps/672 Gbps
Fixed Ports	24 × 10/100/1000Base-T Ethernet ports, 4 × 10 Gig SFP+	24 × 10/100/1000Base-T Ethernet ports, 4 × 10 Gig SFP+	48 × 10/100/1000Base-T Ethernet ports, 4 × 10 Gig SFP+	48 × 10/100/1000Base-T Ethernet ports, 4 × 10 Gig SFP+	48 × 10/100/1000Base-T Ethernet ports, 4 × 10 Gig SFP+
PoE+	Not supported	supported	Not supported	supported	Not supported
Extended Slots	One extended slot, support 2 x 40GE QSFP+, 2 x 25GE SFP28 or 8 x 10GE SFP+, 8*10GE Base-T cards				Not supported
Wireless Services	Management of up to 1024 APs AP access control, AP domain management, and AP configuration template management Radio channel management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis
iPCA	Functions as the parent node to virtualize downstream switches and APs vertically as one device for simpler management Supports a two-layer client architecture Supports third-party devices between SVF parent and clients
VXLAN	VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol
Interoperability	VBST (compatible with PVST, PVST+, and RPVST) LNP (similar to DTP) VCMP (similar to VTP)
