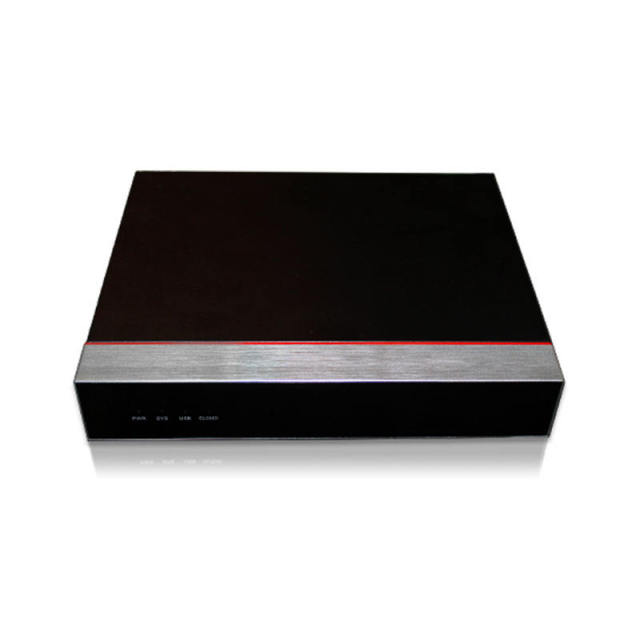

Huawei AirEngine 9700S-S Wireless Access Controller

No.AirEngine 9700S-S

Key Features

High-Performance Management: Capable of managing up to 64 Access Points (APs) and 2,000 concurrent users.
Powerful Forwarding: Offers a high 4 Gbps forwarding capability for smooth data transmission.
Flexible Networking: Supports both Layer 2 and Layer 3 networking between APs and the AC for deployment flexibility.
High Reliability: Features a 1+1 AC power supply and supports 1+1 Hot Standby (HSB) or N+1 backup modes for uninterrupted operation.
Comprehensive Protocol Support: Works with a full range of Wi-Fi protocols, including the latest 802.11ax (Wi-Fi 6), as well as 802.11a/b/g/n/ac/ac Wave 2.
High-Speed Interfaces: Equipped with 2*10GE SFP+ optical ports and 10GE electrical interfaces for high-bandwidth uplinks.

Get The Latest Quote

Add to Quote List Browse the list

Description
Ordering & Payment Terms

AirEngine 9700S-S Wireless Access Controller - Product Overview

The AirEngine 9700S-S is a compact, box-type wireless access controller (AC) designed for small and medium-sized enterprises. It enables integrated wired and wireless access and offers flexible scalability for building robust enterprise networks, including small campuses, corporate offices, wireless metro networks, and public hotspot coverage.

AirEngine 9700S-S Wireless Access Controller - Technical Specifications

The AirEngine 9700S-S is a compact, high-performance wireless access controller designed for enterprise environments. It supports a maximum of 64 managed Access Points (APs) and can handle up to 2,000 concurrent access users. With a robust forwarding capability of 4 Gbit/s, it ensures efficient data handling for demanding networks.

This controller offers flexible networking options, allowing APs to connect over either Layer 2 or Layer 3 networks. For enhanced reliability, it supports AC redundancy modes including 1+1 Hot Standby (HSB) and N+1 backup.

It is compatible with a comprehensive range of radio protocols, from legacy standards to the latest Wi-Fi 6 technology, specifically supporting 802.11a/b/g/n/ac/ac Wave 2/ax. For power reliability, it features a 1+1 AC redundant power supply.

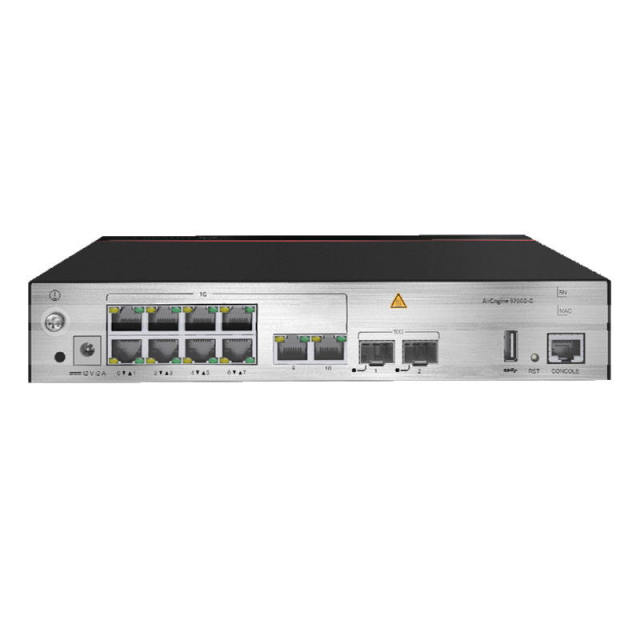

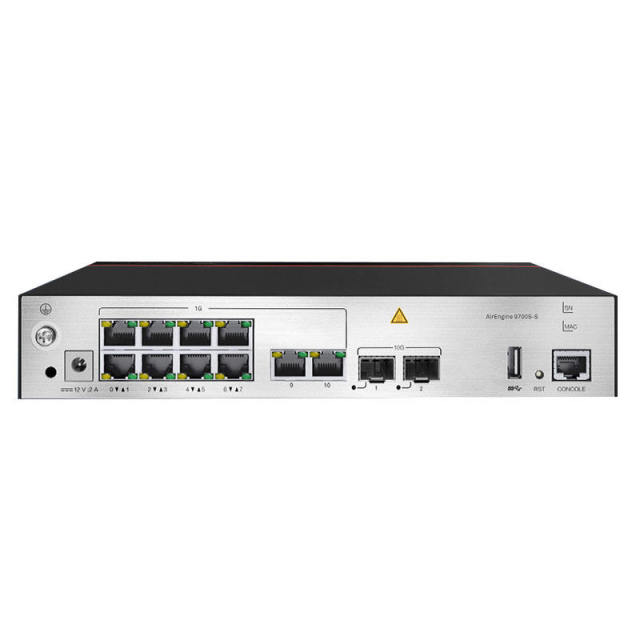

The interface configuration includes two 10 Gigabit Ethernet ports, supporting both SFP+ (optical) and electrical connections. The device is housed in a compact chassis with dimensions of 43.6 mm (W) x 210 mm (H) x 250 mm (D) and weighs 1.57 kg.

Specifications	AirEngine 9700s-s
Ports	10 x GE + 2 x 10 GE
Power Supply	AC/DC power adapter
Forwarding Capability	4Gbit/s
Maximum Number of Managed APs	64
Maximum Number of Access Users	2K
AP-AC Networking	Layer 2 or Layer 3 networking
Forwarding Mode	Direct forwarding (distributed forwarding or local forwarding) or tunnel forwarding (centralized forwarding)
AC Active/Standby Mode	1+1 HSB or N+1 backup
Radio Protocols	802.11a/b/g/n/ac/ac Wave 2/ax
