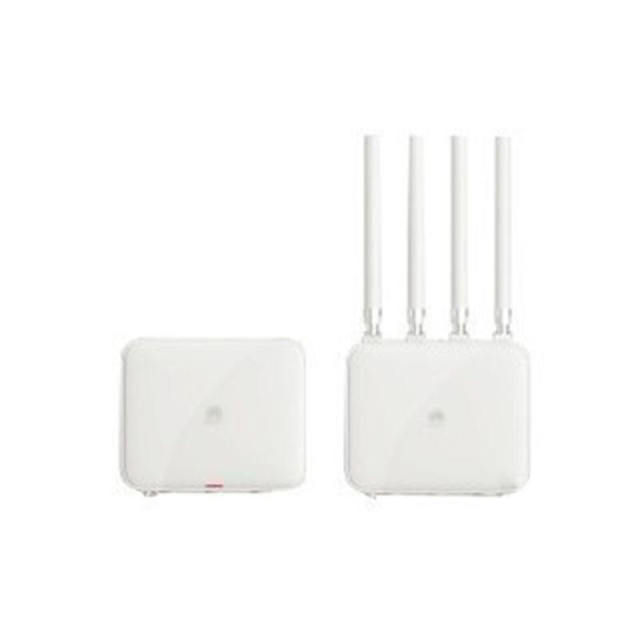

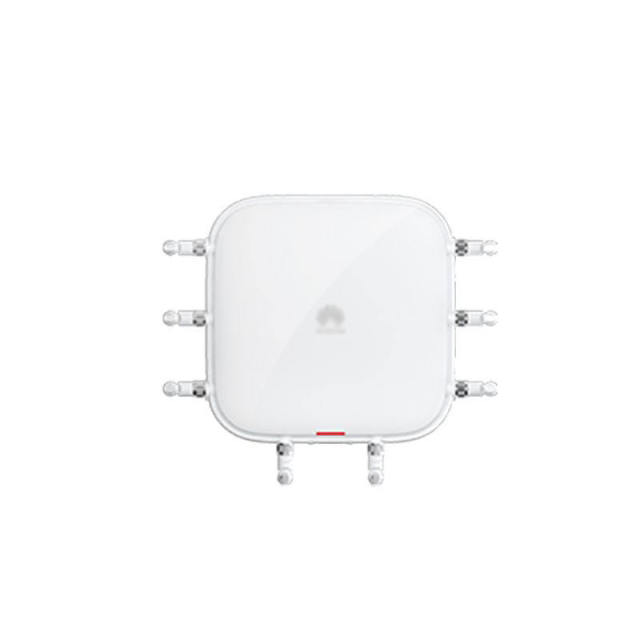

Huawei AirEngine 6760R-51E Outdoor Wi-Fi 6 Access Point with External Antennas

Huawei AirEngine 6760R-51E Outdoor Wireless Access Point

The Huawei AirEngine 6760R-51E is a high-performance, outdoor Wi-Fi 6 access point designed to deliver reliable connectivity in demanding environments and extreme weather conditions. Its robust feature set makes it an ideal solution for high-density user deployments.

Detailed Specifications

• Power Input:

  • Powered by PoE (Power over Ethernet), compliant with IEEE 802.3bt for simplified installation.

• Ports:

  • 1 x 5 Gbps Electrical Port

  • 1 x 1 Gbps Electrical Port

  • 1 x 10 Gbps SFP+ Fiber Port

• MIMO: Spatial Streams:

  • 2.4 GHz Band: 4x4:4

  • 5 GHz Band: 4x4:4

• Maximum Number of Users: ≤ 1024

• Dimensions (H x W x D): 85 mm x 270 mm x 220 mm (Compact and streamlined design)

• Operating Temperature: -40°C to 65°C



  Product name	AirEngine 6760R-51E Access Points
  Dimensions (H x W x D)	85 mm x 270 mm x 220 mm
  Power Input	PoE power supply: in compliance with IEEE 802.3bt
  Maximum Number of Users	≤ 1024 Note: The actual number of users varies according to the environment
  Port	1 x 5 GE electrical, 1 x GE electrical, and 1 x 10 GE SFP+
  Operating Temperature	–40°C to 65°C

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders

BANK INFORMATION

Bank Name: DBS BANK (HONG KONG) LIMITED
Account Name: Shenzhen VAN Electronics Co., Ltd.
Account No.: 798 291 1671
Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong
Swift Code: DHBKHKHH

Contact for Quotation:
Kindly email your requirements to sales@szvan.com for a customized quotation and optimal solution.
Attn: Jessica Lee
