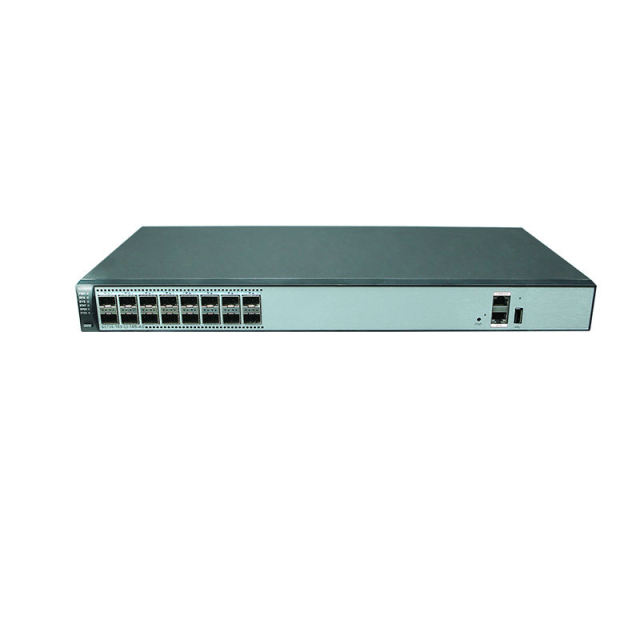

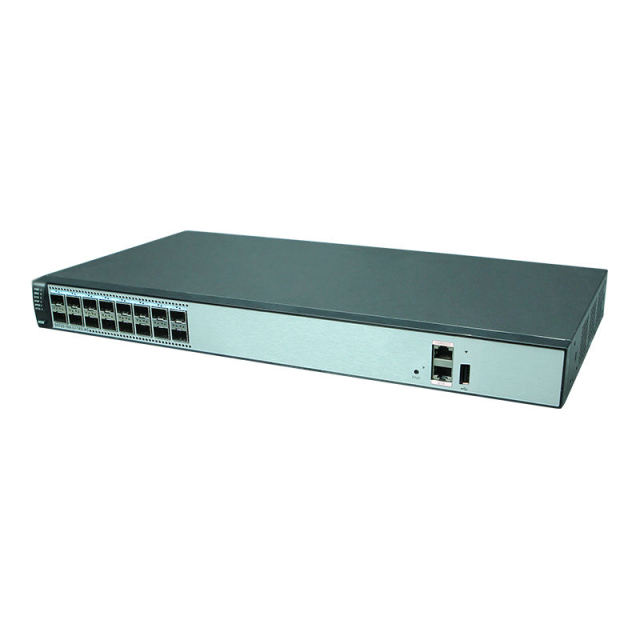

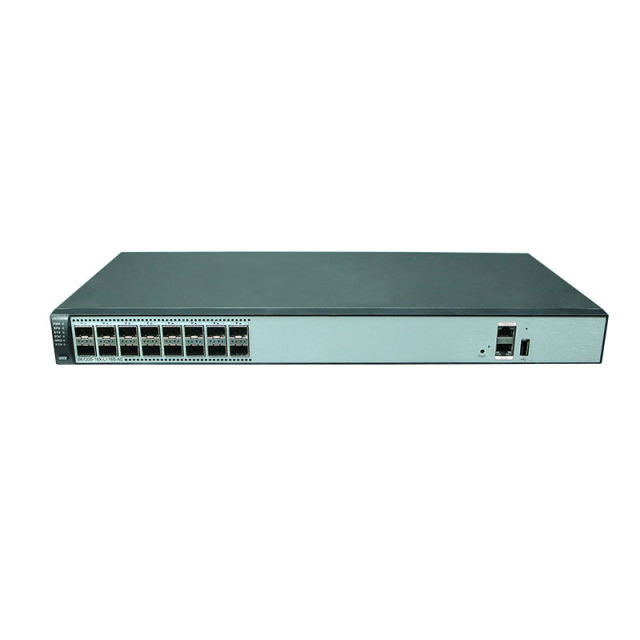

H3C S6720S-16X-LI-16S-AC - 16-Port 10G SFP+ Layer 3 Managed Switch

Product Overview

The S6720S-16X-LI-16S-AC is a high-performance, next-generation network switch from the 6720-LI series. Designed for 10 Gigabit access in campus and data center networks, it delivers robust features and switching capacity in a compact, space-saving form factor.

Feature Highlights

• High-Density 10G Access: Provides 16 x 10 GE SFP+ ports for high-speed connectivity.

• Superior Performance: With a switching capacity of 12.8 Tbit/s and a forwarding rate of 240 Mpps, it ensures smooth operation for demanding enterprise networks.

• Compact Design: With a depth of only 220mm, it easily fits into standard 300mm deep cabinets, optimizing space utilization.

• Simplified Management: Features like SVF (Super Virtual Fabric) reduce management complexity, allowing the network to be managed as a single logical device.

• Advanced Switching: Supports comprehensive features including VLAN, LACP for link aggregation, and both static and dynamic routing protocols.



  Product Model	S6720-16X-LI-16S-AC S6720S-16X-LI-16S-AC	S6720-26Q-LI-24S-AC S6720S-26Q-LI-24S-AC	S6720-32X-LI-32S-AC S6720S-32X-LI-32S-AC
  Switching Capacity	1.28 Tbit/s; 12.8 Tbit/s
  Packet Forwarding Rate	240 Mpps	240 Mpps	240 Mpps
  Fixed Ports	16 x 10 GE SFP+ ports	24 x 10 GE SFP+ ports  2 x 40 GE QSFP+ ports	32 x 10 GE SFP+ ports
  MAC Address Table	32K MAC address entries MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses
  VLAN Features	4,094 VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping Basic QinQ and selective QinQ
  IP Routing	Static routing, RIP, and OSPF VRRP Policy-based routing Routing policies
  Interoperability	VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP)
