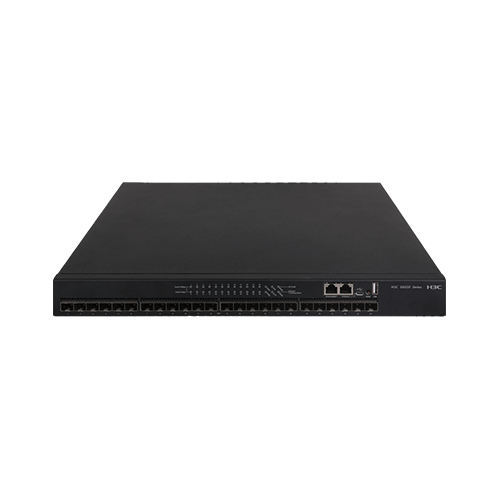

H3C S6520X-26C-SI 24-Port 1G/10G SFP+ L3 Switch with Expansion Slot

H3C S6520X-26C-SI Layer 3 Ethernet Switch

Product Overview
The H3C S6520X-26C-SI is a high-performance, scalable 10 Gigabit Ethernet access switch designed for resilient and flexible network deployments. It is part of the S6520X-SI series, which supports advanced features like OSPF/BGP routing, multicast, SDN, and IRF stacking for high availability.

Port Configuration

• Service Ports: 24 x 1/10GE SFP+ fiber ports

• Expansion Slots: 1

• Power Module Slots: 2



Performance

• Switch Capacity: 2.56 Tbps

• Packet Forwarding Rate: 536 Mpps

• Port Switching Capacity: 720 Gbps



Stacking

• Maximum Stacking Units: 9

• Stacking Bandwidth: 160 Gbps

Physical Characteristics

• Dimensions (W x D x H): 440 x 360 x 43.6 mm

• Weight: ≤ 7 kg



  H3C S6520X-SI Switch Series Overview

  The S6520X-SI series is an industry-leading solution for 10GE access, offering high performance and scalability with modular power, fixed or modular uplinks (10GbE/40GbE), and IRF for resiliency.

  Available Models in the Series:

  Model Number	Port Configuration
  S6520X-10XT-SI	8 x 1G/2.5G/5G/10G Base-T Ports, 2 x 1G/10G SFP+ Ports
  S6520X-16XT-SI	14 x 1G/2.5G/5G/10G Base-T Ports, 2 x 1G/10G SFP+ Ports
  S6520X-16ST-SI	16 x 1/10G SFP+ ports (with 2 Combo Multi-giga Base-T ports), 2 x power module slots
  S6520X-18C-SI	16 x 1/10G SFP+ ports, 1 x expansion slot, 2 x power module slots
  S6520X-24ST-SI	24 x 1/10G SFP+ ports (with 2 Combo Multi-giga Base-T ports), 2 x power module slots
  S6520X-26C-SI	24 x 1/10G SFP+ ports, 1 x expansion slot, 2 x power module slots
  S6520X-26MC-SI	24 x 1G/2.5G/5G Base-T ports, 1 x expansion slot, 2 x power module slots
  S6520X-26MC-UPWR-SI	24 x 100M/1G/2.5G/5G Base-T (UPOE) ports, 1 x expansion slot, 2 x power module slots
  S6520X-26XC-UPWR-SI	24 x 100M/1G/2.5G/5G/10G Base-T UPoE ports, 1 x expansion slot, 2 x power module slots
  S6520X-54XC-UPWR-SI	48 x 100M/1G/2.5G/5G/10G Base-T UPoE ports, 4 x QSFP+ Ports, 1 x expansion slot, 2 x power module slots

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders

BANK INFORMATION

Bank Name: DBS BANK (HONG KONG) LIMITED
Account Name: Shenzhen VAN Electronics Co., Ltd.
Account No.: 798 291 1671
Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong
Swift Code: DHBKHKHH

Contact for Quotation:
Kindly email your requirements to sales@szvan.com for a customized quotation and optimal solution.
Attn: Jessica Lee
