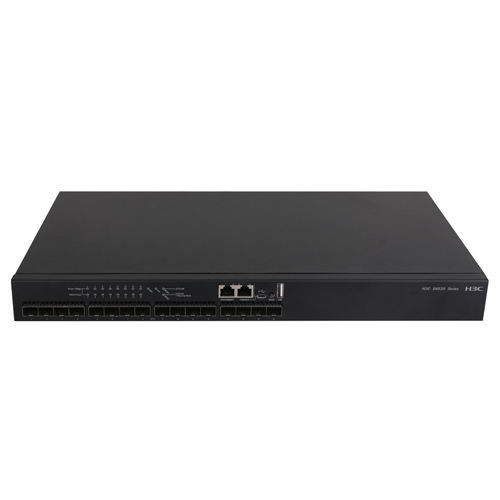

H3C S6520-16S-SI Layer 3 Ethernet Switch | 16-Port 1G/10G SFP+

No.S6520-16S-SI

H3C S6520-16S-SI Layer 3 Managed Switch

Form Factor: Fixed Port Switch Host
Layer: Layer 3 (Routing Capabilities)
Total Ports: 16
Port Type: SFP+ (Small Form-factor Pluggable Plus)
Supported Speeds: 1 Gigabit per second (1000Mbps) and 10 Gigabit per second (10Gbps)
Media: Fiber Optic (BASE-X)

The S6520-SI series Ethernet switch provides 1GE/10GE/40GE optical ports. In enterprise networks, it can be deployed as an access device for 10G-to-the-desktop applications or as the core for small and medium-sized enterprises. In metropolitan area networks (MAN) or for industrial users, it can provide Gigabit/10 Gigabit access for end users or aggregate traffic from low-end switches, with uplinks aggregated to core switches via 10G or 40G links.

Get The Latest Quote

Add to Quote List Browse the list

Description
Additional Information
Ordering & Payment Terms

The H3C S6520-16S-SI is a Layer 3 Gigabit Ethernet switch independently developed by New H3C Technology Co., Ltd. It is an intelligent, managed switch designed for high-performance networking environments that require easy installation. It is ideal for providing 10G access in enterprise networks or serving as the core for small-to-medium businesses.

Performance

Switch Capacity: 2.56 Tbps / 23.04 Tbps
Packet Forwarding Rate: 240 Mpps
Wire-speed Switching: Supported
Communication Mode: Full-Duplex & Half-Duplex
Transmission Rate: 10/100/1000Mbps

Port Configuration

Service Ports: 16 x 1/10G SFP Plus ports
Console Port: 1
Management Ethernet Port: 1
USB Port: 1

Software Features

Functions: LACP (Link Aggregation Control Protocol), Stackable, VLAN Support

Physical Specifications

Dimensions (W x D x H): 440 x 260 x 43.6 mm
Full Weight: ≤ 7 kg

Environmental Conditions

Operating Temperature: 0°C ~ 45°

project	S6520-16S-SI	S6520-24S-SI	S6520-22SG-SI	S6520-30SG-SI	S6520-26Q-SI
Dimensions (width × depth × height)	440×260×43.6	440×260×43.6	440×260×43.6	440×260×43.6	440×360×43.6
Full weight	≤7kg	≤7kg	≤6kg	≤6kg	≤7kg
Console port	1 piece
Ethernet port for management	1 piece
USB port	1 piece
Front panel service port description	16 1/10G SFP Plus ports	24 1/10G SFP Plus ports	8 GE+14 1/10G SFP Plus ports	8 GE+14 1/22G SFP Plus ports	24 1/10G SFP Plus ports+2 QSFP Plus ports
Input voltage communicate with			Rated voltage range: 100V~240V, 50/60Hz
Direct current			Rated voltage range: -48V~-60V
Power consumption (static)	AC: 15W AD: 15W	AC: 17W AD: 16W	AC: 15W AD:NO	AC: 15W AD: NO	AC single: 15W double ：18W AD single: 15W double：18W
