Home > H3C S5130S-52S-SI L2 Switch with 48x 10/100/1000BASE-T ports and 4x 1G/10G SFP+ uplink ports
  • Коммутатор L2 H3C S5130S-52S-SI с 48 портами 10/100/1000BASE-T и 4 портами восходящей связи 1G/10G SFP+
  • H3C S5130S-52S-SI L2 Switch with 48x 10/100/1000BASE-T ports and 4x 1G/10G SFP+ uplink ports
  • Коммутатор L2 H3C S5130S-52S-SI с 48 портами 10/100/1000BASE-T и 4 портами восходящей связи 1G/10G SFP+
  • H3C S5130S-52S-SI L2 Switch with 48x 10/100/1000BASE-T ports and 4x 1G/10G SFP+ uplink ports

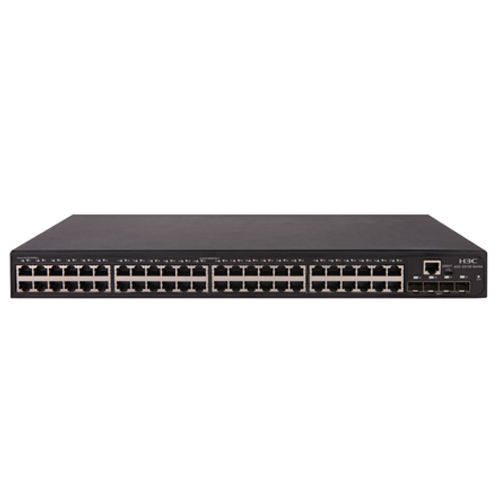

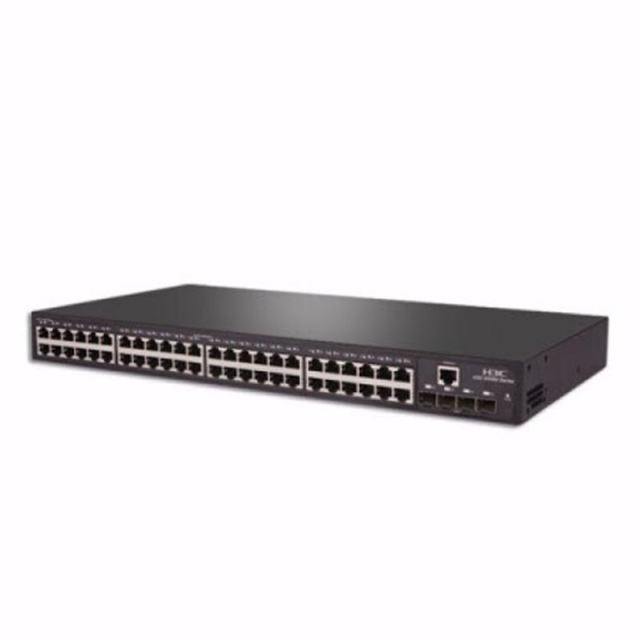

H3C S5130S-52S-SI L2 Switch with 48x 10/100/1000BASE-T ports and 4x 1G/10G SFP+ uplink ports

No.S5130S-52S-SI

  • Brand: H3C (OEM)

  • Model Number: S5130S-52S-SI

  • Product Name: S5130S-52S-SI L2 Ethernet Switch

  • Stacking: Intelligent Resilient Framework 2 (IRF2)

  • Link Aggregation: LACP (Link Aggregation Control Protocol)

  • VLAN: VLAN Support

  • Dimensions (H x W x D): 43.6 x 440 x 230 mm

  • Weight: < 3.5 kg

  • Operating Temperature: 0°C to 45°C

Get The Latest Quote
Add to Quote List Browse the list
  • Коммутатор L2 H3C S5130S-52S-SI с 48 портами 10/100/1000BASE-T и 4 портами восходящей связи 1G/10G SFP+
  • H3C S5130S-52S-SI L2 Switch with 48x 10/100/1000BASE-T ports and 4x 1G/10G SFP+ uplink ports
  • Description
  • Ordering & Payment Terms

Product Overview

The H3C S5130S-52S-SI is a second-generation Layer 2 Gigabit Ethernet switch developed by H3C. It is engineered for high performance, high port density, and robust uplink capabilities, making it an ideal solution for demanding network environments that require easy installation and intelligent management.

Technical Specifications

Category Specification
Fixed Ports 48 x 10/100/1000BASE-T (RJ45) Ethernet Ports
4 x SFP+ Ports (10 Gigabit Uplinks)
Console Port 1
Switch Capacity 336 Gbps / 3.36 Tbps
Packet Forwarding Rate 144 Mpps
Transmission Rate 10/100/1000Mbps
Communication Mode Full-Duplex & Half-Duplex
Jumbo Frame Supported
Feature
S5130S-28S-SI
S5130S-28F-SI
S5130S-52S-SI
Switching capacity
336Gbps/3.36Tbps
Packet forwarding rate
108Mpps
108Mpps
144Mpps
Dimensions (H × W × D)
440×160×43.6 mm
440×360×43.6 mm
440×230×43.6 mm
Weight
≤ 2.5kg
≤ 2.5kg
≤ 3.5kg
 Fixed ports
24*10/10
0/1000TX +4*SFP
24*100/1000BASE-X SFP (including 8 GE Combo ports) + 4 SFP+ ports
48*10/100/1000TX Ethernet port + 4 SFP+ ports
Input voltage
AC: Rated voltage range: 100V～240V A.C, 50/60Hz
