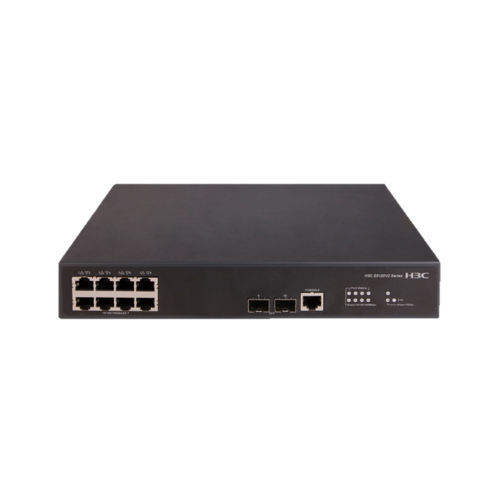

H3C S5120V2-10P-LI 8-Port Gigabit Managed Ethernet Switch

No.S5120V2-10P-LI

High Performance: Offers a switching capacity of 20Gbps and a packet forwarding rate of 15Mpps.
Flexible Connectivity: Features 8 auto-sensing 10/100/1000BASE-T copper ports and 2 fixed SFP fiber uplink ports for versatile network connectivity.
Advanced Management: Supports stacking via Intelligent Resilient Framework 2 (IRF2), simplifying management and enhancing resilience.
Network Optimization: Comprehensive support for VLAN, LACP (Link Aggregation Control Protocol), and Jumbo Frames for efficient and segmented network operations.
Compact & Lightweight: Its small form factor (43.6 × 266 × 161 mm) and low weight (≤ 1.5 kg) allow for easy deployment in space-constrained environments.

Get The Latest Quote

Add to Quote List Browse the list

Description
Ordering & Payment Terms

H3C S5120V2-10P-LI 8-Port Gigabit Smart Switch | Layer 2 VLAN | Fiber Access

The H3C S5120V2-10P-LI is a second-generation Gigabit Layer 2 intelligent access switch, designed for high-performance networks that require high port density, ease of use, and robust management features. It is an ideal solution for enterprise access-layer deployments.

Detailed Specifications

Category	Specification
Brand & Model	H3C S5120V2-10P-LI
Product Name	H3C S5120V2-10P-LI 8-port Gigabit Intelligent Layer 2 Access Switch
Fixed Ports	8 x 10/100/1000BASE-T (RJ45), 2 x 1000BASE-X (SFP)
Console Port	1
Switching Capacity	20 Gbps
Packet Forwarding Rate	15 Mpps
Communication Mode	Full-Duplex & Half-Duplex
Jumbo Frame	Supported
Key Functions	Stackable (IRF2), VLAN Support, LACP
Dimensions (H x W x D)	43.6 mm × 266 mm × 161 mm
Weight	≤ 1.5 kg
Operating Temperature	-5°C to 50°C
Status	In Stock

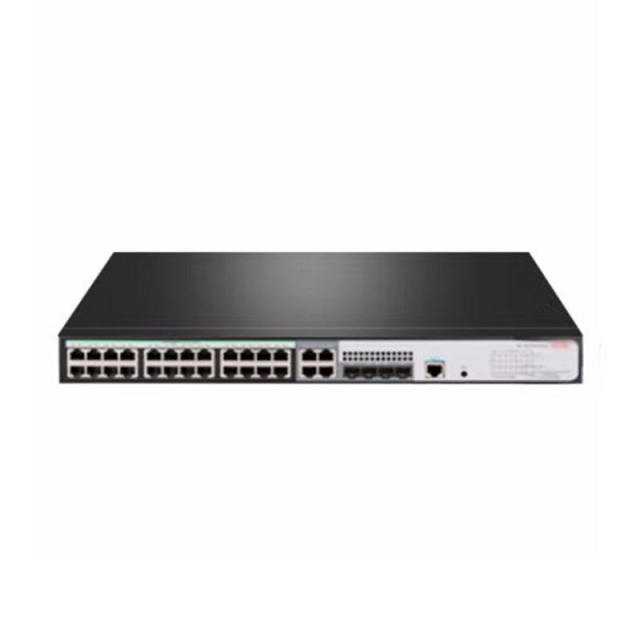

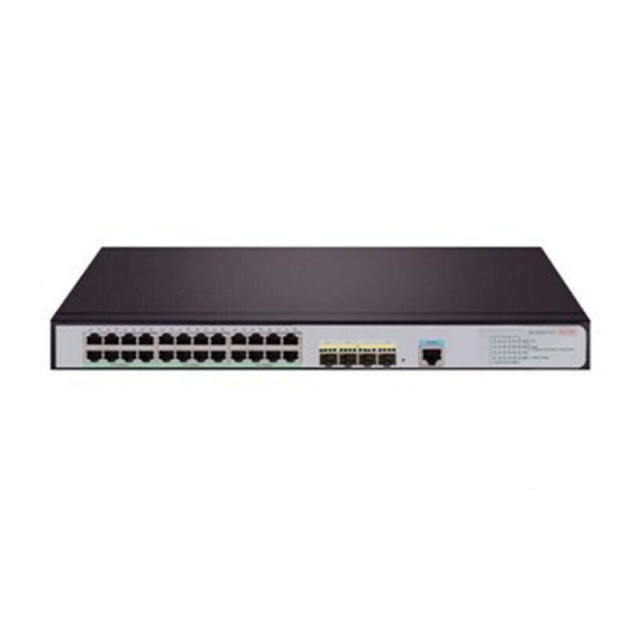

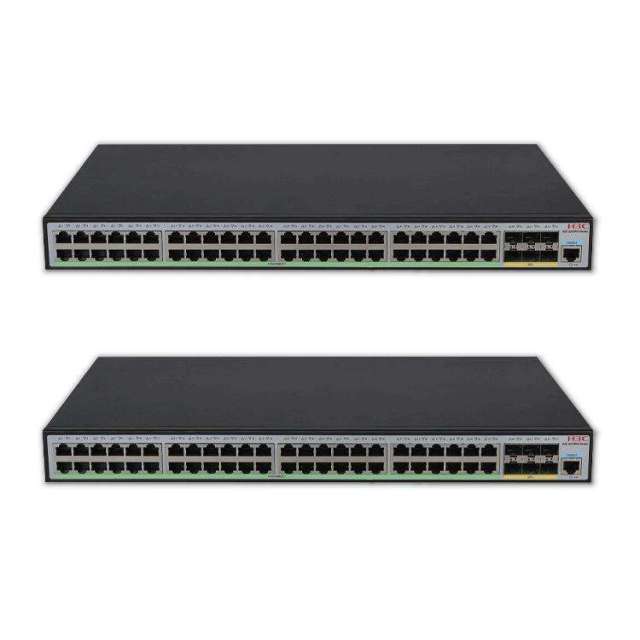

Feature	S5120V2 -10P-LI	S5120V2 -20P-LI	S5120V2 -28P-LI	S5120V2 -52P-LI
Switching capacity	20Gbps	40Gbps	56Gbps	104Gbps
Packet forwarding rate	15Mpps	30Mpps	41.7Mpps	77.4Mpps
Dimensions (H × W × D)	43.6× 266 × 161 mm	43.6× 330 × 230 mm	43.6× 440 × 160 mm	43.6× 440 × 230 mm
Weight	≤ 1.5kg	≤ 2kg	≤ 2.5kg	≤ 3.5kg
Console ports	1
Fixed ports	8*10/100 /1000TX	16*10/10 0/1000TX	24*10/10 0/1000TX	48*10/10 0/1000TX
Fixed ports	+2*SFP	+4*SFP	+4*SFP	+4*SFP
