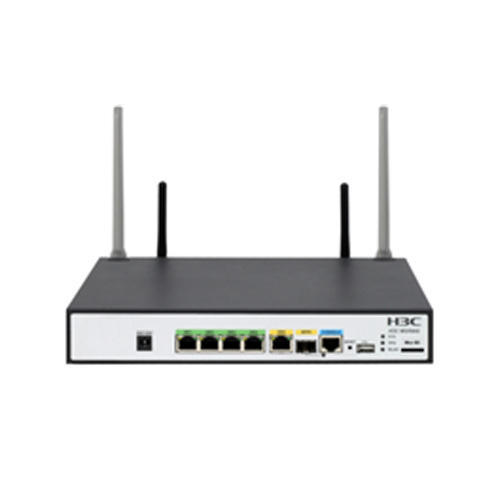

H3C RT-MSR810-W-LM Enterprise 6-Port Gigabit Wireless Router

Key Specifications

• CPU: 800MHz

• Memory: 1 GB

• Forwarding Performance (IMIX): 200 Mbps

Wired Connectivity:

• WAN Ports: 1 x Gigabit (10/100/1000Mbps)

• LAN Ports: 4 x Gigabit (10/100/1000Mbps)

• Console Port: 1

• USB Port: 1 x USB 2.0

Wireless Connectivity:

• Wi-Fi Standard: 802.11b/g/n

• Frequency: 2.4GHz

• Wi-Fi Speed: Up to 300 Mbps

• Features: WPA, WPA2, WPA3 Encryption

4G/LTE Cellular:

• Support: 4G LTE (Backward compatible with 3G)

• SIM Card Slot: 1

• Antenna: External Stick-like/Magnetic antenna

General:

• Functions: Firewall, QoS, VPN, IPSec, NAT

• Max Power Consumption: 24W

• Operating Temperature: 0°C to 45°C (32°F to 113°F)



  Applications & Deployment

  The MSR810 series is ideal as an egress gateway for small-to-medium enterprises, providing:

  1. All-in-One Gateway: Deploys at the network outlet to provide integrated security, wireless access, routing, and switching.

  2. Content Caching: Can store and push multimedia content (webpages, images, videos) to clients, saving bandwidth.

  3. Traffic Management: Offers granular traffic control, online activity management, and audit capabilities.

  4. 4G LTE Connectivity: Supports high-speed 4G LTE networks from all major providers (up to 100Mbps) for primary or backup WAN connectivity.

  5. Centralized Management: Supports zero-touch configuration and centralized management for easy deployment and maintenance.

  6. Enhanced Security: Features IPsec VPN, GPS positioning, and IMSI binding to ensure secure data transmission and mobile access.
