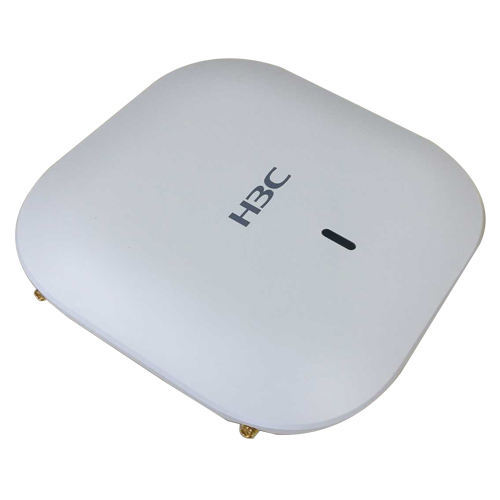

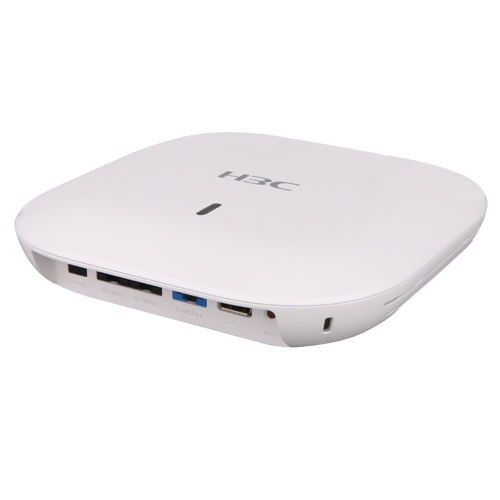

H3C EWP-WA6320-SI-FIT Indoor Dual-Band Wireless Access Point (802.3af)

The H3C WA6320 series is a latest-generation Wireless Access Point developed based on the 802.11ax (Wi-Fi 6) standard. It incorporates advanced dual-radio 802.11ax technology, delivering transmission speeds at least twice as fast as previous 802.11ac products.

Ideal for high-density deployment scenarios such as hotels, retail stores, and smart enterprise campuses, this access point features a compact design that supports both wall and ceiling mounting.

Physical Specifications

• Product Dimensions: 185mm × 185mm × 43mm

• Product Weight: 0.4 kg

• Color: White (or custom color available)

• Protection Level: IP41

Technical Specifications

• Network Standard: IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)

• Maximum Transmission Rate: 1000 Mbps

• Antenna Type: Built-in Antenna System

• Antenna Gain: 7 dBi

Interfaces & Power

• Network Interface: 1 x Gigabit Ethernet port

• Other Interfaces: 1 x Console port

• Power Supply:

  • Primary: PoE (Power over Ethernet), compatible with 802.3af/802.3at standards.

  • Alternative: Local 54V DC power supply.

• Power Consumption:

  • Typical: ≤ 12.42W

  • Maximum: < 16.5W

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders

BANK INFORMATION

Bank Name: DBS BANK (HONG KONG) LIMITED
Account Name: Shenzhen VAN Electronics Co., Ltd.
Account No.: 798 291 1671
Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong
Swift Code: DHBKHKHH

Contact for Quotation:
Kindly email your requirements to sales@szvan.com for a customized quotation and optimal solution.
Attn: Jessica Lee
