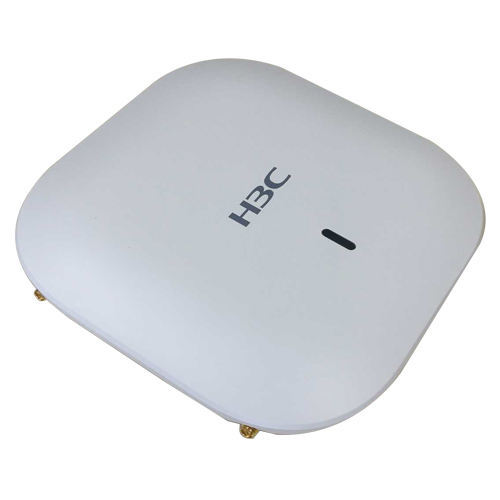

H3C EWP-WA5320-C-EI-FIT Indoor Wireless Access Point

Technical Specifications

Wireless Standards & Performance

• Network Standards: IEEE 802.11b, 802.11g, 802.11n, 802.11ac Wave 2

• Working Frequency Band: Dual-Band (2.4 GHz & 5 GHz)

• Modulation Technology: MIMO-OFDM

• Maximum Transmit Power: 20 dBm

• Power Adjustment Granularity: 1 dBm

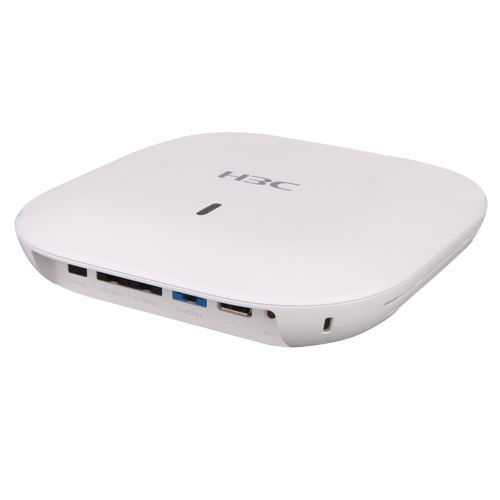

Physical Interfaces

• Network Interface: 2 x Gigabit Ethernet (GE) LAN Ports

• Other Interfaces: 1 x Console Port, 1 x USB Port

• Antenna Type: Built-in Antenna System

Power & Design

• Power Supply: Dual Ethernet Interface for PoE (Power over Ethernet)

• Max. Power Consumption: < 12.95W

• Installation Type: Indoor (Wall-mount, Ceiling, etc.)

• Product Dimensions: 170 × 170 × 35 mm

• Product Weight: 0.50 kg

• Protection Level: IP41

Indicators & Management

• Status Indicator: Multi-color (Orange, Green, Blue) for various statuses.

• Network Management: SNMP (V1/V2c/V3), Trap, HTTP(S), SSH, Telnet, FTP/TFTP

• Remote Probe Analysis: Supported

Key Features & Capabilities

Client & Virtual AP Management

• Maximum Users per Radio: 256 (actual number may vary based on environment)

• Virtual APs: Supports up to 32 per radio (recommended 5 for practical use)

Security & Authentication

• Authentication Methods: Open System/Shared Key, 802.1X, MAC Address, PSK, Portal

• Encryption: 64/128-bit WEP, Dynamic WEP, TKIP, CCMP

• Advanced Security:

  • User Isolation (L2 and SSID-based)

  • Wireless Intrusion Detection/Prevention System (wIDS/wIPS)

  • Management Frame Protection (802.11w)

  • Real-time Spectrum Guard (RTSG)

  • Message & MAC Address Filtering

  • SSID and VLAN Binding

  • Wireless EAD (Endpoint Admission Defense)

Networking & Protocols

• Supported QoS: Yes

• Supported IP Protocols: IPv4 & IPv6

• Other Features: Supports Chinese SSID, Broadcast Storm Suppression, Intelligent Wireless Service Awareness (wIAA)

Environmental Standards

• Operating Temperature: -10°C to +55°C

• Operating Humidity: 5% to 95% (non-condensing)

• Storage Temperature: -40°C to +70°C

• Storage Humidity: 5% to 95% (non-condensing)

• Mean Time Between Failures (MTBF): > 250,000 hours

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders
