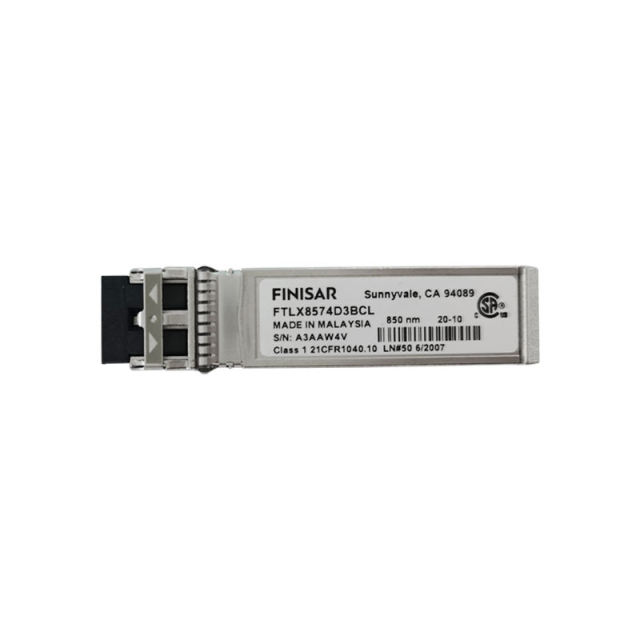

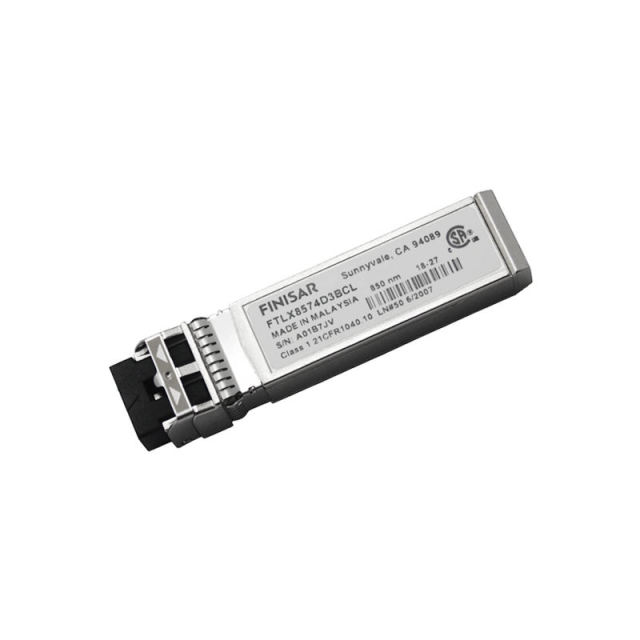

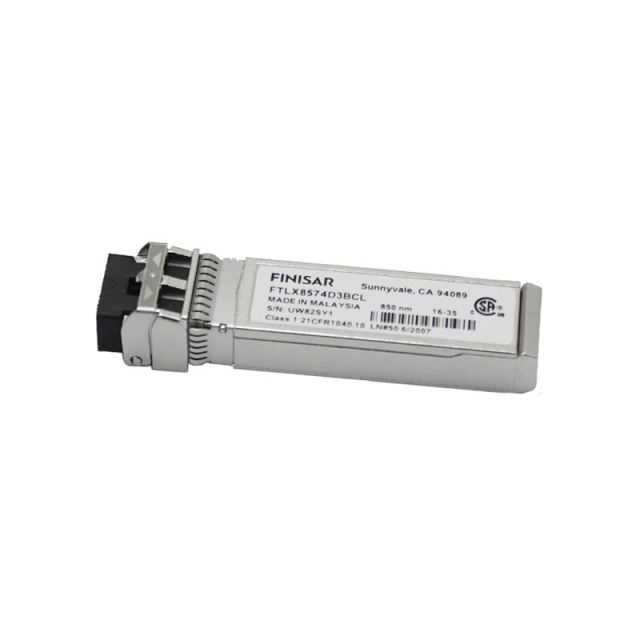

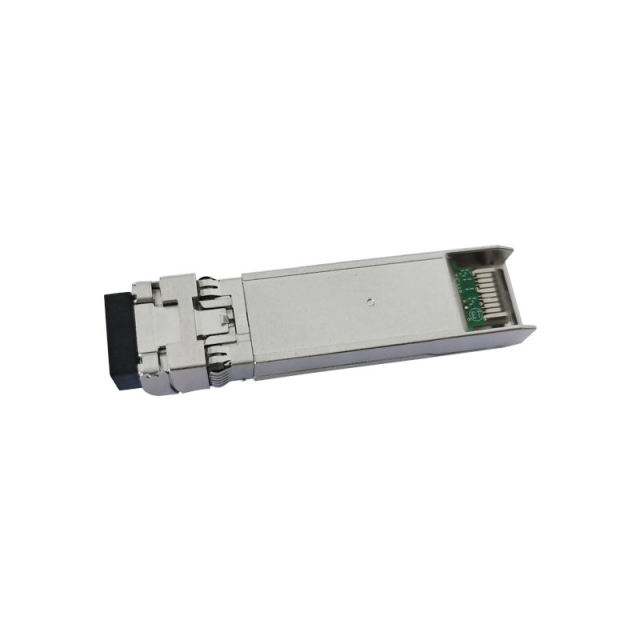

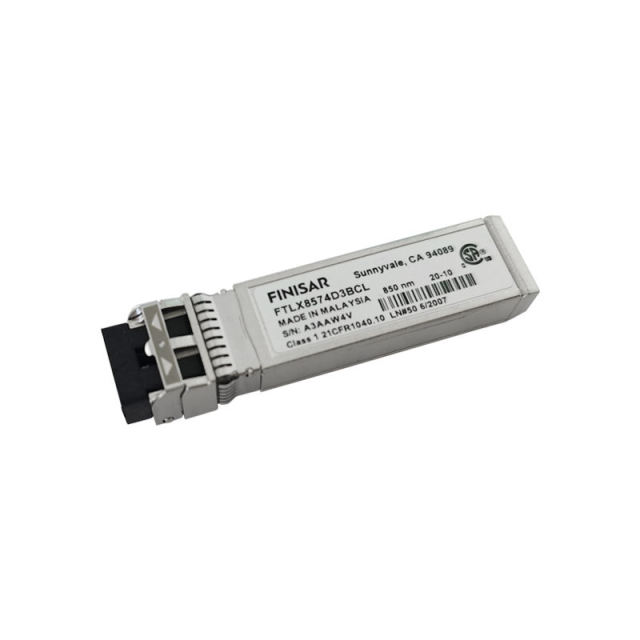

Finisar FTLX8574D3BCL SFP+ SR Transceiver 10GBASE-SR, 850nm VCSEL, 10Gbps Multi-mode Fiber Module

No.FTLX8574D3BCL

Key Features:

Compliant with SFF-8431, SFF-8432, and IEEE 802.3ae 10GBASE-SR/SW
Supports data rates from 9.95 to 11.3 Gb/s
Extended operating temperature range (-5°C to 85°C)
Digital Diagnostics Monitoring (DDM) via a 2-wire serial interface
Hot-swappable for plug-and-play installation
Low power consumption (<1W)
RoHS, REACH, FCC, and CE compliant

Get The Latest Quote

Add to Quote List Browse the list

Description
Ordering & Payment Terms

FTLX8574D3BNL SFP+ Transceiver Product Overview

The FTLX8574D3BNL is an extended temperature, 10Gb/s SFP+ optical transceiver designed for 10-Gigabit Ethernet and Fibre Channel applications over multimode fiber. It features a limiting receiver and comprehensive digital diagnostics monitoring, making it ideal for high-performance, high-density data center and telecommunications environments.

Technical Specifications

Parameter	Specification
Form Factor / Interface	SFP+, Duplex LC
Data Rate	9.95 ~ 11.3 Gb/s
Protocols & Compatibility	10GBASE-SR/SW, SONET OC-192, SDH, 10G Fibre Channel 1200-Mx-SN-I
Wavelength / Transmitter	850nm VCSEL
Fiber Type / Reach	Multimode Fiber (MMF): Up to 300m on OM3, Up to 400m on OM4
Receiver Type	PIN Photodiode (Limiting Receiver)
Receiver Sensitivity	High-sensitivity design (per relevant standards)
Digital Diagnostics (DOM)	Supported via 2-wire serial interface (SFF-8472 compliant)
Power Supply	+3.3V
Power Consumption	< 1.0 Watt
Operating Temperature	-5°C to +85°C
Storage Temperature	-40°C to +85°C
Dimensions (H x W x D)	56.5 x 13.4 x 8.5 mm
Weight	Approx. 20g
Compliance	RoHS, REACH, FCC, CE

Detailed Description

Receiver Type Note:
This module employs a limiting receiver. For host board designers using an Electronic Dispersion Compensation (EDC) PHY IC, it is crucial to follow the IC manufacturer's recommended settings to ensure proper interoperability between the host-board EDC PHY and this SFP+ module.

Digital Diagnostics Monitoring (DDM):
The transceiver provides real-time monitoring of key parameters, including:

Temperature
Laser Bias Current
Transmitted Optical Power
Received Optical Power
Supply Voltage

Application Scenarios

10G Ethernet Switch-to-Server Connections
Short-Reach Data Center Interconnects
10G Fibre Channel for Storage Area Networks (SAN)
Telecommunications SONET/SDH Transmission

The FTLX8574D3BNL combines reliability, low power consumption, and industrial-grade temperature tolerance in a compact SFP+ form factor, making it a robust solution for modern networking infrastructure.
