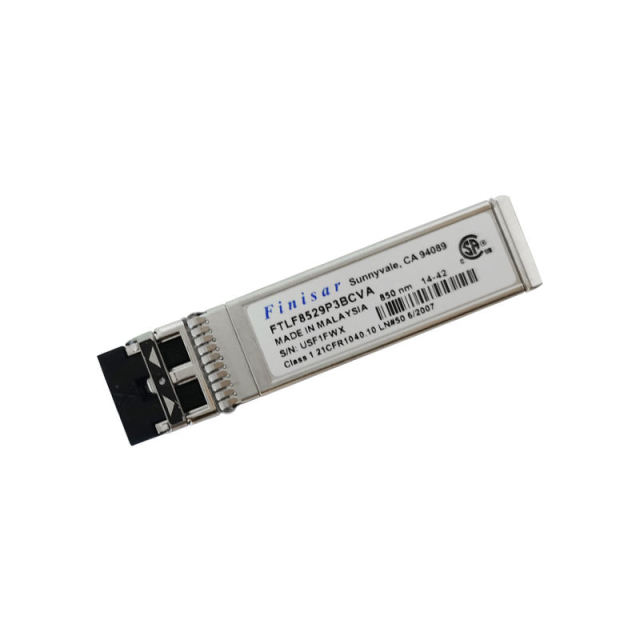

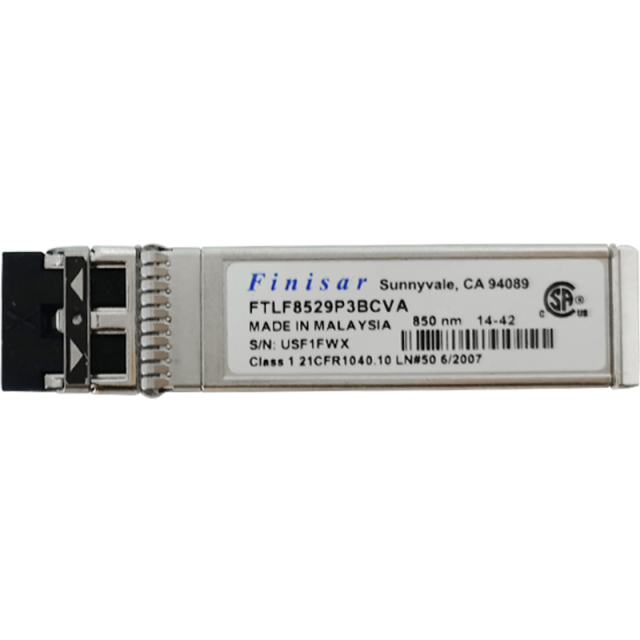

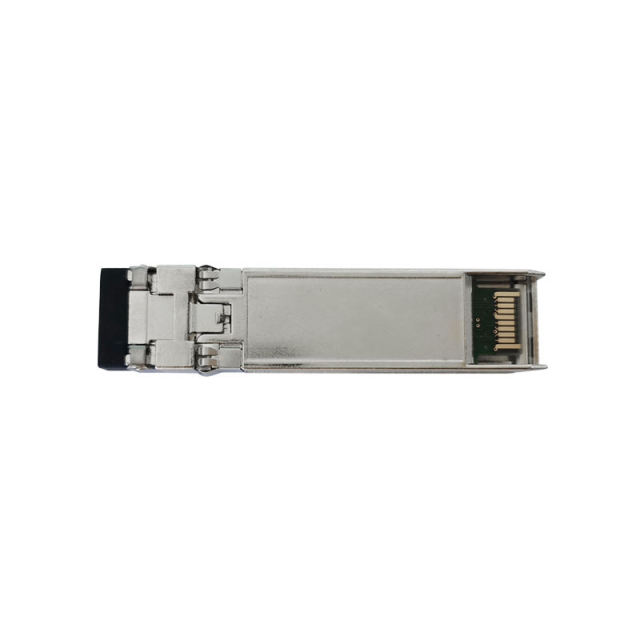

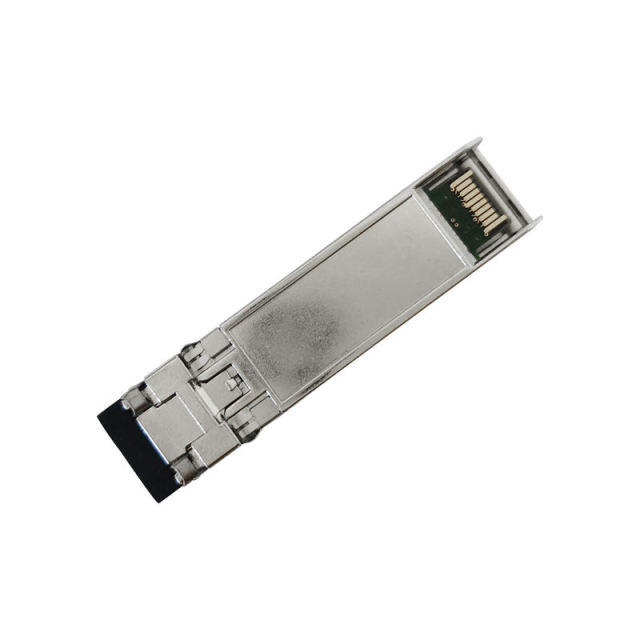

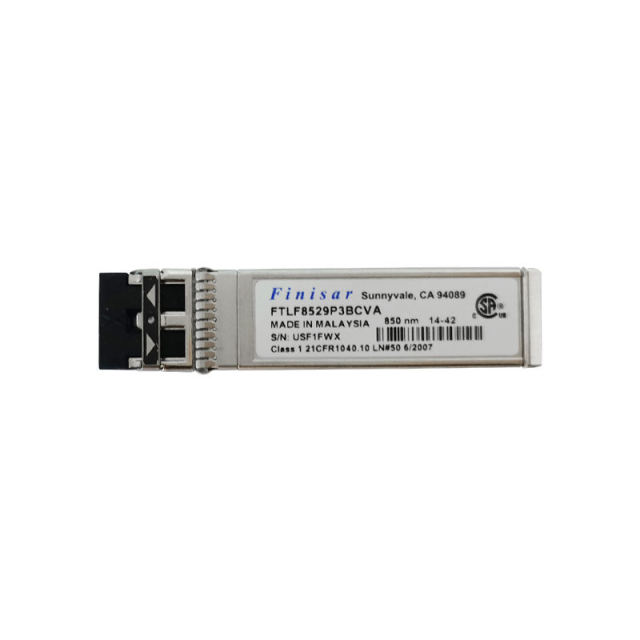

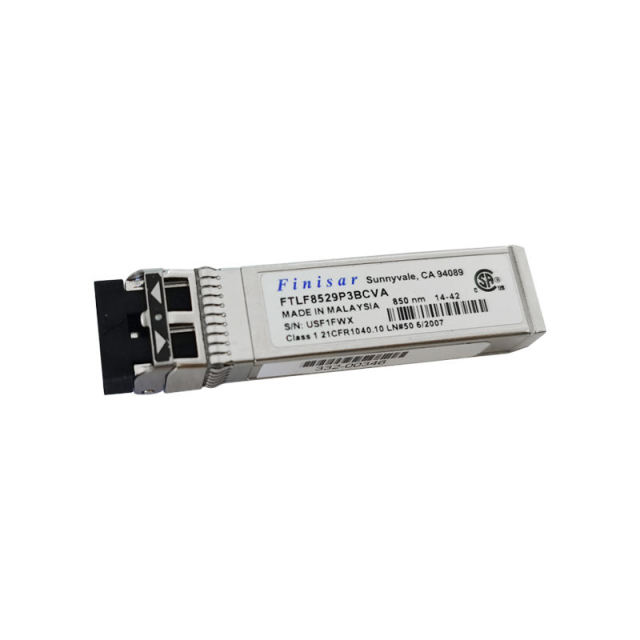

Finisar FTLF8529P3BCVA SFP+ Transceiver 14.025Gb/s 850nm Multimode

Product Overview

The Finisar FTLF8529P3BCVA is a high-performance SFP+ optical transceiver designed for high-speed data communication over multimode fiber. It is primarily used in Fibre Channel applications, supporting data rates up to 16 Gb/s with a transmission distance of up to 100 meters on OM3 fiber. It features digital diagnostics monitoring (DDMI) and is compliant with industry-standard SFP+ form factor and protocols.

Finisar’s FTLF8529P3BCV SFP+ transceivers are designed for use in high-speed Fibre Channel links up to 14.025 Gb/s over multimode fiber. They are fully compliant with relevant industry standards and are RoHS compliant. This module is ideal for storage area networks (SANs) and other high-bandwidth applications requiring reliable, short-reach optical connectivity.

Detailed Technical Specifications

Electrical Characteristics

• Supply Voltage: 3.3 V to 3.46 V (Nominal), 4 V (Maximum)

• Supply Current: 290 mA (max)

• Transmit Enable Voltage: 2.0 V (min) / 0.8 V (max)

Optical Characteristics (Transmitter)

• Technology: VCSEL

• Optical Wavelength: 850 nm

• Measured TX Output Power: -2 dBm (min)

• Measured TX Bias Current: 10% (max variation)

Optical Characteristics (Receiver)

• Technology: PIN Photodiode

Environmental & Physical

• Operating Case Temperature: 0°C to +70°C

• Relative Humidity: 0% to 85%

• Package Size: 16 x 5 x 2 cm

• Package Weight: 0.500 kg

Standards & Compliance

• FC-PI-5 Rev. 6.00a

• SFF-8472 Rev. 11.0

• SFF-8081

• Compatible with SFF-8432 and SFF-8431

• RoHS Compliant

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders
