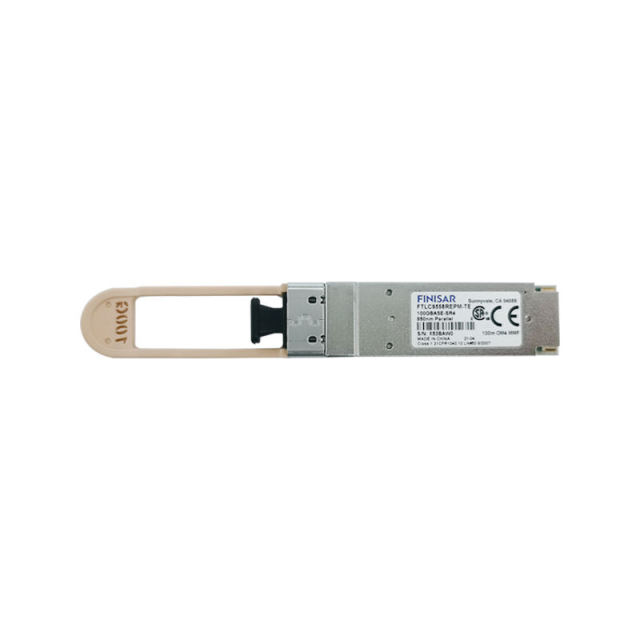

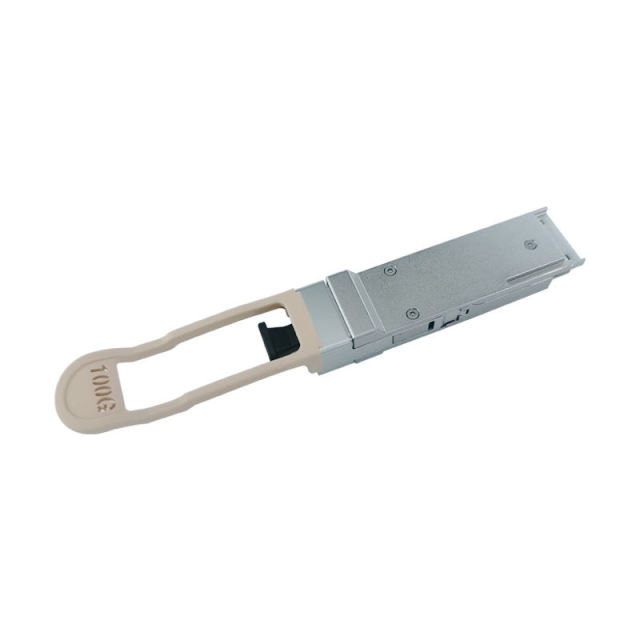

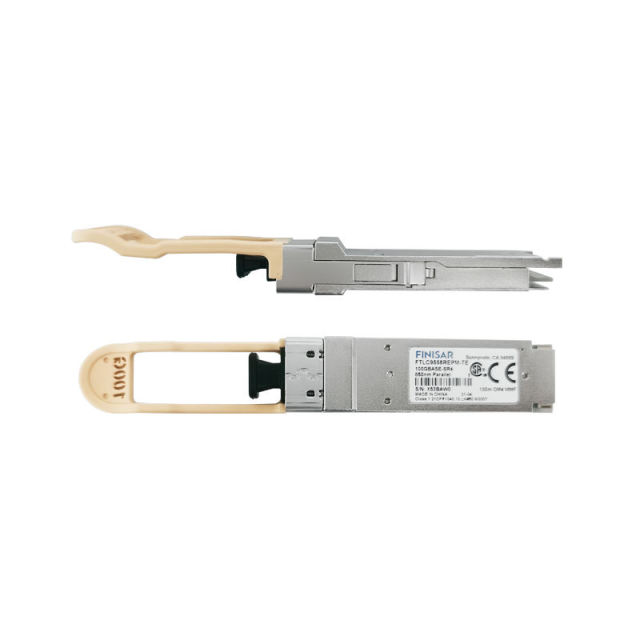

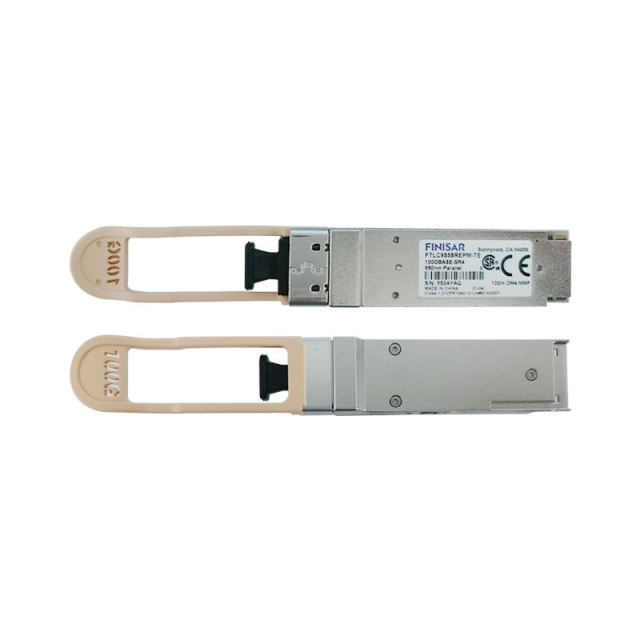

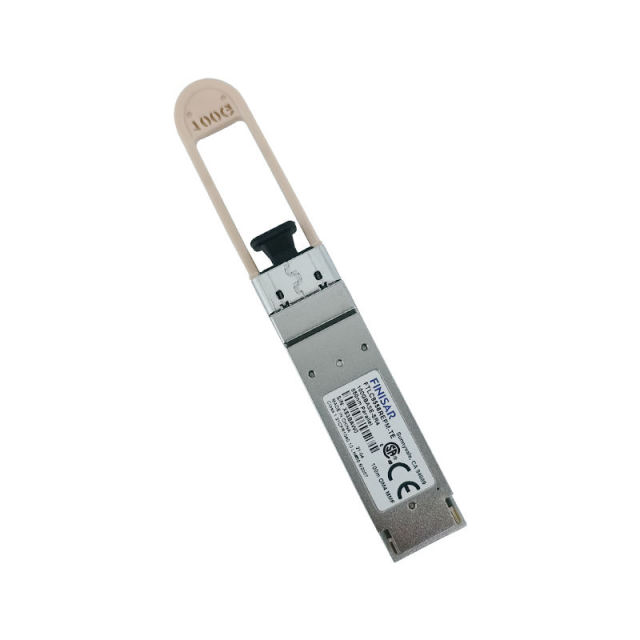

Finisar 100GBASE-SR4 QSFP28 Transceiver, 850nm, 100m over MMF

Product Overview

The Finisar FTLC9558REPM-TE is a 100G QSFP28 optical transceiver designed for high-speed, short-reach data center and enterprise network links. It utilizes a parallel 4-channel 850nm VCSEL architecture to deliver 100Gbps connectivity over multimode fiber, with a low power consumption of under 2.5W.

Detailed Description

This module is engineered for 100 Gigabit Ethernet applications and complies with the IEEE 802.3bm 100GBASE-SR4 standard. Its 4x25Gb/s parallel architecture ensures reliable data transmission for distances of up to 100 meters on OM4 multimode fiber. The hot-pluggable QSFP28 form factor allows for easy installation and maintenance without shutting down the host system.

Key features include integrated Digital Diagnostic Monitoring (DDM) via an I²C interface for real-time performance tracking, and a low power design consuming less than 2.5W. It operates on a single 3.3V power supply and is compliant with the RoHS environmental standard.

Primary Applications

• Short-reach 100G Ethernet links within data centers

• High-performance computing (HPC) networks

• Enterprise network backbone connections



  Category	Key Information
  Brand/Model	Finisar FTLC9558REPM
  Form Factor	QSFP28, Hot-Pluggable
  Transmission Rate	100Gbps (4×25Gb/s Parallel)
  Standards Compliance	IEEE 802.3bm 100GBASE-SR4, QSFP28 MSA, CAUI-4
  Wavelength/Medium	850nm VCSEL; OM4 Multimode Fiber (MMF)
  Maximum Transmission Distance	100m over OM4 Fiber
  Power Consumption	<2.5W
  Power Supply	3.3V
  Operating Temperature Range	0–70°C (Commercial Temperature Grade)
  Connector Type	MPO-12 (12-Fiber)
  Diagnostic Function	I²C DDM (Digital Diagnostic Monitoring)
  Environmental Standard	RoHS Compliant
  Application Scenarios	Short-Reach 100G Ethernet Links in Data Centers and Enterprise Networks
