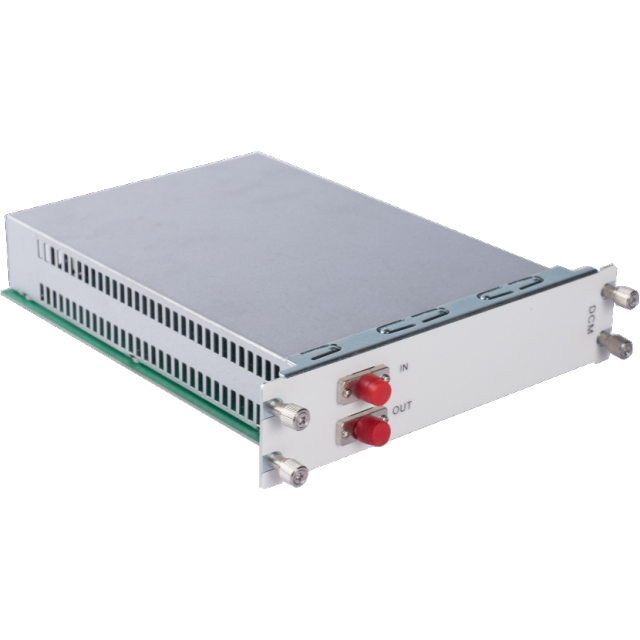

A DCM (Dispersion Compensation Module) is a single-mode fiber to address chromatic dispersion issues in high-speed, long-distance optical communication systems.
It is specifically designed to compensate for dispersion in already deployed standard single-mode fiber links. The module features slope compensation functionality, enabling wideband dispersion slope compensation for standard single-mode fibers within the C-band, thereby optimizing the system's residual dispersion.
Built on mature and reliable fiber technology, the DCM enhances the performance of optical transmission systems. It can achieve a dispersion range from -10 to -2100 ps/nm at the 1550nm wavelength. Furthermore, We can provide products tailored to specific requirements for center wavelength and dispersion values.
Product Specifications: Dispersion Compensator
General System Parameters
Board Dimensions: 177 mm (W) × 40 mm (H) × 225 mm (D)
Complies with FCC, UL, CE, TUV, and CSA standards for Safety and Electromagnetic Compatibility (EMC).
Technical Specifications by Compensation Length
Parameter / Compensation Length
20 km
40 km
60 km
80 km
100 km
Dispersion @ 1545 nm
-340 ± 20 Ps/nm
-670 ± 20 Ps/nm
-1000 ± 20 Ps/nm
-1340 ± 20 Ps/nm
-1680 ± 20 Ps/nm
Relative Dispersion Slope @ 1545 nm
0.0036 ± 20% (Std.) 0.0036 ± 10% (Adv.)
0.0036 ± 20% (Std.) 0.0036 ± 10% (Adv.)
0.0036 ± 20% (Std.) 0.0036 ± 10% (Adv.)
0.0036 ± 20% (Std.) 0.0036 ± 10% (Adv.)
0.0036 ± 20% (Std.) 0.0036 ± 10% (Adv.)
Insertion Loss @ 1525-1565 nm
≤ 3.2 dB
≤ 4.5 dB
≤ 6.0 dB
≤ 7.7 dB
≤ 9.3 dB
Polarization Mode Dispersion (PMD) - Max.
≤ 0.7 ps
≤ 0.8 ps
≤ 0.9 ps
≤ 1.0 ps
≤ 1.1 ps
Polarization Mode Dispersion (PMD) - Typical
0.2 ps
0.3 ps
0.4 ps
0.5 ps
0.6 ps
Application: Coherent Optical Communication, Metropolitan Area Network (MAN), Telecommunications Product Type: Subsystems Media Type: Single-Mode Fiber (SMF)
