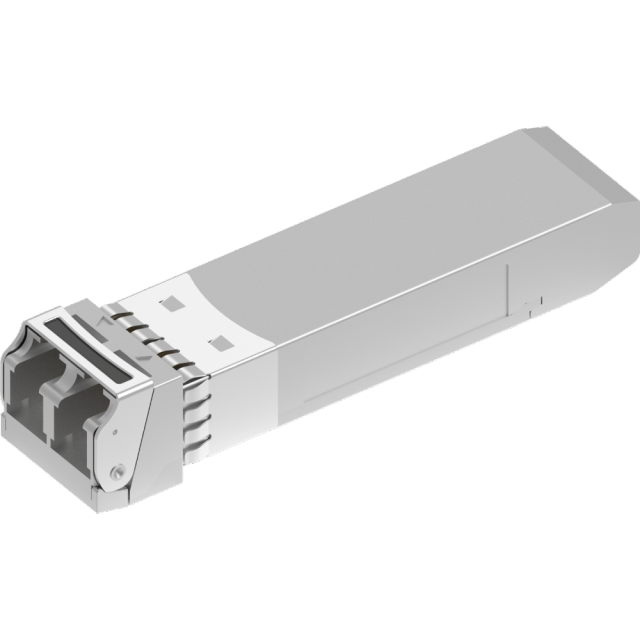

This portfolio of 100M to 4G SFP pluggable optical transceivers supports a wide range of protocols, including Fast Ethernet, Gigabit Ethernet, 1G/2G/4G Fibre Channel, and SONET/SDH (OC-3/STM-1 to OC-48/STM-16). Available variants cover diverse reach requirements, from 2km (FX) up to 120km (DWDM), and include specialized types such as BiDi, CWDM, DWDM, and CSFP.
SFP / CSFP Transceiver Product List
Product Type
Data Rate
Wavelength
Distance
Temp. Grade
Part Number (Example)
Compact SFP (CSFP)
100M/155M CSFP BiDi
155 Mbps
Bi-Directional
20km / 40km
C/I
VCB-3403-L2xD
1G CSFP BiDi
1.25 Gbps
Bi-Directional
20km / 40km
C/I
VCB-3424-L2xD
2.5G CSFP BiDi
2.488 Gbps
Bi-Directional
20km
C
VCB-3448-L2CD
Standard SFP
100M SFP
125 Mbps
1310nm
2km / 10km
C
VPH-1302-02CD
155M SFP
155 Mbps
850nm / 1310nm / 1550nm
2km ~ 150km
C/I
VP-8503-02CD
622M SFP
622 Mbps
1310nm / 1550nm
20km ~ 120km
C/I
VP-3112- L2xD
1.25G SFP
1.25 Gbps
850nm / 1310nm / 1550nm
550m ~ 120km
C/I/E
VP-5524-12CD
1.25G SFP (Rugged)
1.25 Gbps / 1.063Gbps
1310nm
550m ~ 20km
C
VPF-3124- L2TD
2.5G SFP
2.488 Gbps / 2.67Gbps
850nm / 1310nm / 1550nm
300m ~ 80km
C/I/E
VP-5548-L8CD
Bi-Directional SFP
155M BiDi SFP
155 Mbps
Bi-Directional
20km ~ 120km
C/I
VPB-3403X-L2XD
1G BiDi SFP
1.25 Gbps
Bi-Directional
2km ~ 120km
C/I
VPB-3524X-02XD
2.5G BiDi SFP
2.488 Gbps / 2.125Gbps
Bi-Directional
20km ~ 80km
C/I
VPB-3548X-L2XD
CWDM SFP
100M CWDM SFP
155 Mbps
CWDM
80km / 120km
C/I
VPC-XX03-08CD
2.5G CWDM SFP
2.67 Gbps
CWDM
40km / 80km
C/I
VPC-XX48-04XD
DWDM SFP
Multi-Rate DWDM SFP
1.25 Gbps / 1.063Gbps
DWDM
80km
-5℃ ~ 70℃
VPD-xxMR-08CD
1G DWDM SFP
2.67 Gbps
DWDM
80km / 120km
-5℃ ~ 70℃
VPD-XX24-12CD
2.5G DWDM SFP
155 Mbps
DWDM
80km / 120km
-5℃ ~ 70℃
VPD-XX48-08CD
Fibre Channel SFP
2GFC SFP SW
2.125 Gbps
850nm
300m
C/E
VP-852F-S3xD
2GFC SFP LW
2.125 Gbps
1310nm
10km
C/I
VP-312F-L1xD
2GFC SFP EW
2.125 Gbps
1310nm
40km
C
VP-312F-L4CD
2GFC SFP ZW
2.125 Gbps
1310nm
80km
C
VP-312F-L8CD
4GFC SFP SW
4.25 Gbps
850nm
550m
C
VP-854G-S5CD
4GFC SFP LW
4.25 Gbps
1310nm
10km
C
VP-314G-L1CD
4GFC SFP
4.25 Gbps
1310nm
30km
C
VP-314G-L3CD
4GFC SFP
4.25 Gbps
1550nm
40km
C
VP-554G-L4CD
4GFC SFP CWDM
4.25 Gbps
CWDM
40km
C
VPC-xx4G-04CD
4GFC SFP CWDM
4.25 Gbps
CWDM
80km
C
VPC-xx4G-08CD
Ordering & Payment Terms:
Minimum Order Quantity (MOQ): Flexible for small orders
Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
Payment Method: T/T (Bank Transfer)
Payment Terms: 30% advance payment, with 70% balance due prior to shipment for bulk orders
BANK INFORMATION
Bank Name: DBS BANK (HONG KONG) LIMITED Account Name: Shenzhen VAN Electronics Co., Ltd. Account No.: 798 291 1671 Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong Swift Code: DHBKHKHH
Contact for Quotation: Kindly email your requirements tosales@szvan.comfor a customized quotation and optimal solution. Attn:Jessica Lee
